Dell idrac 10 snmp problem

Troubleshooting
,
1

CMK version:

Checkmk Pro 2.5.0p10

OS version:

Oracle Linux 8.9

Error message:

Check idrac via the SNMP

obraz
obraz2352×183 37 KB

obraz
obraz1345×196 19.8 KB

Output of “cmk --debug -vvn hostname”: (If it is a problem with checks or plugins)

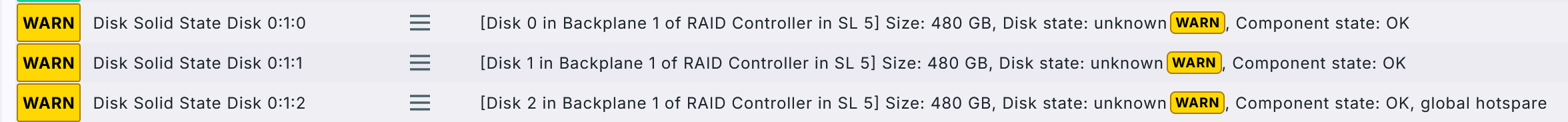

Disk Solid State Disk 0:1:0 [Disk 0 in Backplane 1 of RAID Controller in SL 5] Size: 480 GB, Disk state: unknown(!), Component state: OK
Disk Solid State Disk 0:1:1 [Disk 1 in Backplane 1 of RAID Controller in SL 5] Size: 480 GB, Disk state: unknown(!), Component state: OK
Disk Solid State Disk 0:1:2 [Disk 2 in Backplane 1 of RAID Controller in SL 5] Size: 480 GB, Disk state: unknown(!), Component state: OK, global hotspare

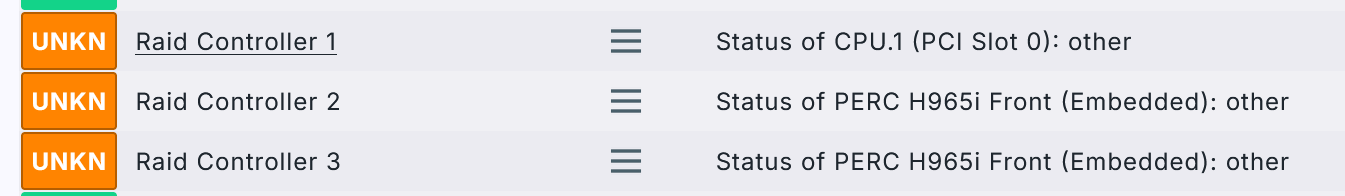

Raid Controller 1 Status of CPU.1 (PCI Slot 0): other
Raid Controller 2 Status of PERC H965i Front (Embedded): other
Raid Controller 3 Status of PERC H965i Front (Embedded): other

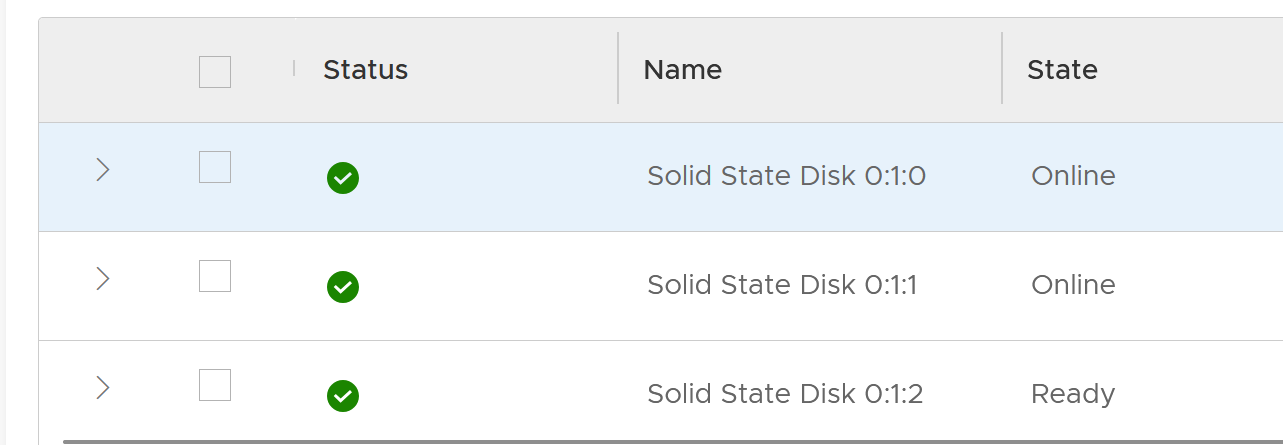

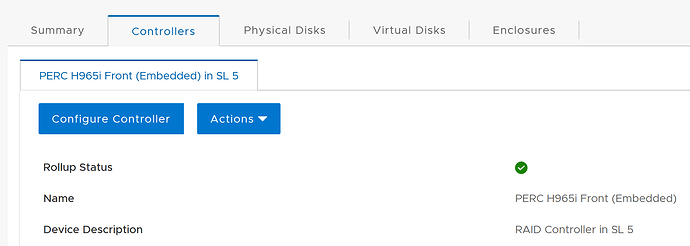

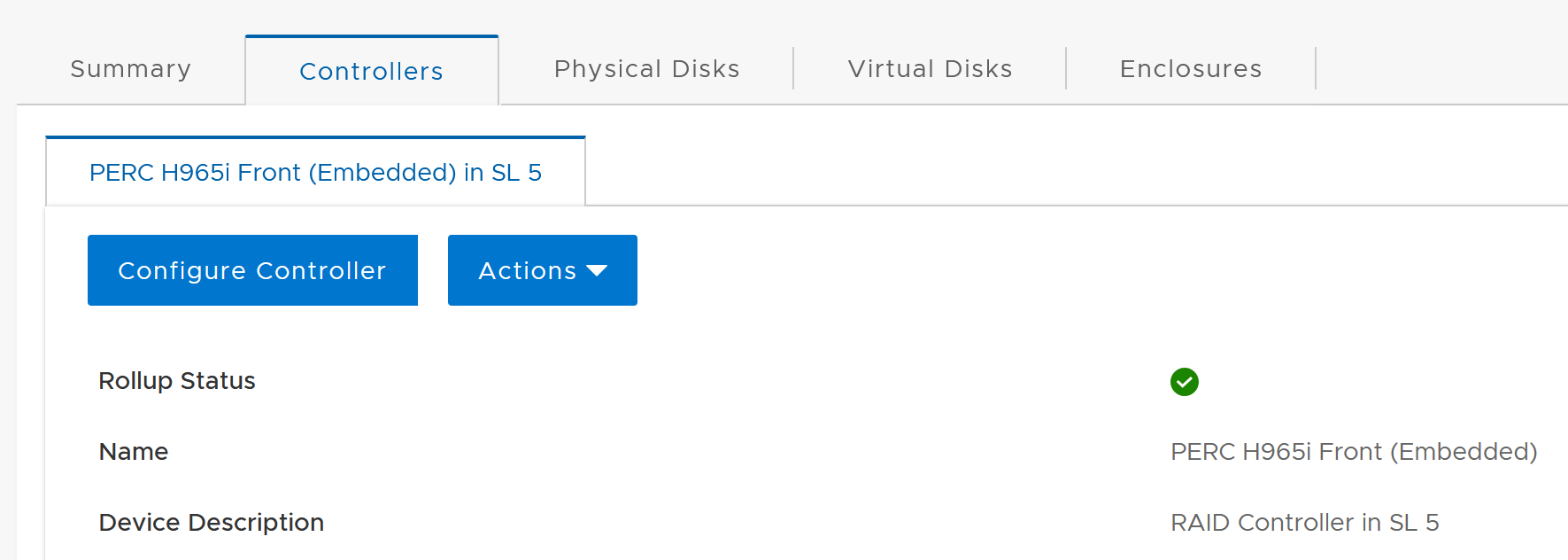

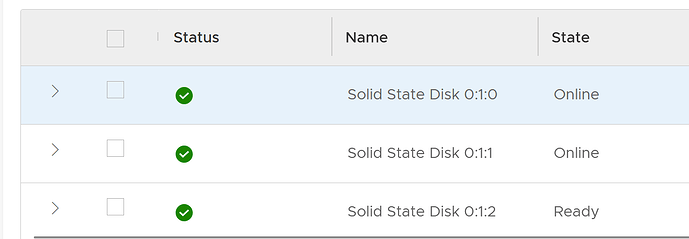

But from idrac everything looks ok.

idrac 10, dell r770

Device Type: 17G Monolithic

Firmware Version: 1.30.30.55

obraz
obraz1283×445 19.1 KB

obraz
obraz1771×632 30 KB

2

That’s how it has been showing ever since the server was first connected to Checkmk.

3

What happens if you use the Redfish integration instead of SNMP?

4

I haven’t used this before. I assume you mean:

SetupAgents > Other integrations > Redfish Compatible Management Controller > Add rule: Redfish Compatible Management Controller

5

I have a few less services running via Redfish, but there are no errors, and the most important ones are there.

Thanks for fast help
