Monitoring folders on a Linux server

General
1

Hello All,

I am using Check_MK Raw 2.4.0 p5 and need to monitor a mounted folder on a Linux server to detect the presence of files.
I followed the steps in the documentation, but I’m not sure if I missed something, because it didn’t work when I tried to monitor more than one path.
I have the configuration set up as follows:

This configuration is located on the Linux server where I want to monitor two folders.

path: /etc/check_mk/fileinfo.cfg
/Share/CNB_PROD/*.pdf
/Share/CNB_PROD/*.tif
/Share/CNB_PROD/*.tiff
/ShareAS/USBCo/Watch/*.tif


Also, create 2 rules for this monitoring in Check_MK:

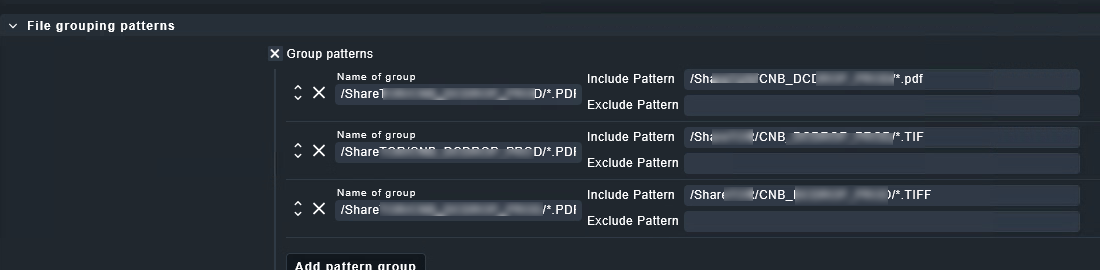

1. File grouping patterns

image1100×270 37.5 KB

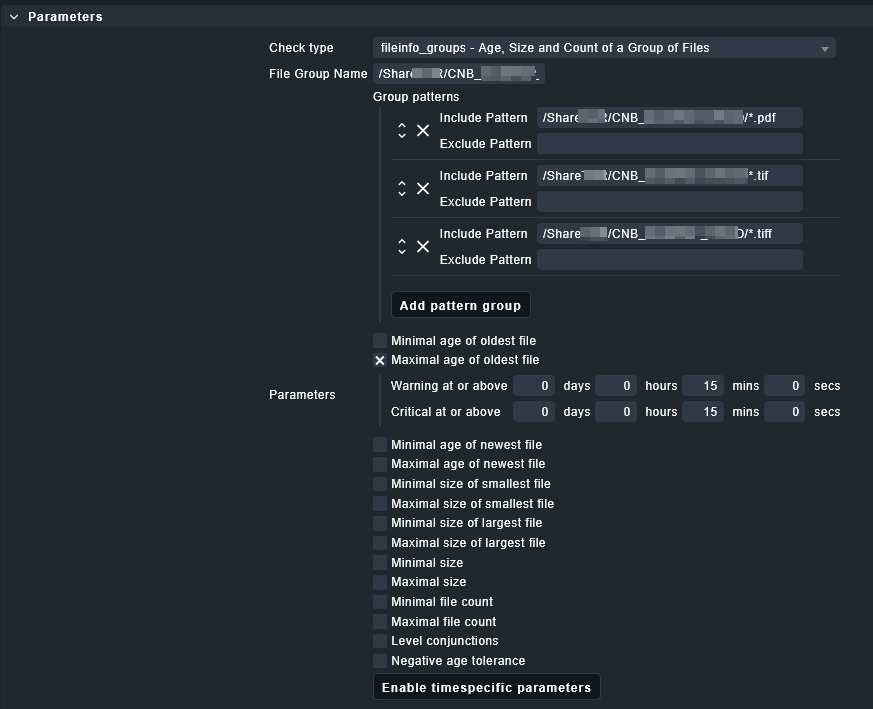

2. Enforced Services–> Size, age and count of file groups

image873×709 14.9 KB

For now, I am only monitoring one path; when I tried with two, I created two pattern rules and two size rules—one for each of the folders.

Regards,
Vix.

2

I would recommend using the successor of fileinfo, mk_filestats, as it is easier to configure and significantly more performant, especially when dealing with a large number of directories and files.

There, you can group and prefilter the files directly in the Check without the hassle of multiple rules.

# filestats.cfg

# Search for Files
[Share]
input_patterns:         /Share/CNB_PROD/* /ShareAS/USBCo/Watch/*
filter_regex:           .*\.(pdf|tif|tiff)$
output:                 file_stats
# Group matching Files
[Share@CNB_PROD_PDF]
grouping_regex:         /Share/CNB_PROD/.*\.pdf$
[Share@CNB_PROD_PDF]
grouping_regex:         /Share/CNB_PROD/.*\.tif$
[Share@USBCo_PDF]
grouping_regex:         /ShareAS/USBCo/Watch/.*\.pdf$
...
3

Hello LaSoe,

Thank you very much for your help; I’m going to configure it exactly as you mentioned. I can keep both files on the same server.

Regards,

Vix

4

Hello LaSoe,

I configured it using the file stats method as you suggested and deleted the file info file.
I am providing evidence of the rules and the file.

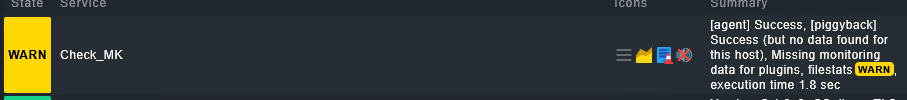

I used different rules than those for fileinfo in Checkmk, but it didn’t work; I am getting the error: “Missing monitoring data for plugins, filestatsWARN”.
Here I am, trying to monitor two different folders.

image907×100 7.45 KB

rules:

image345×119 6.47 KB

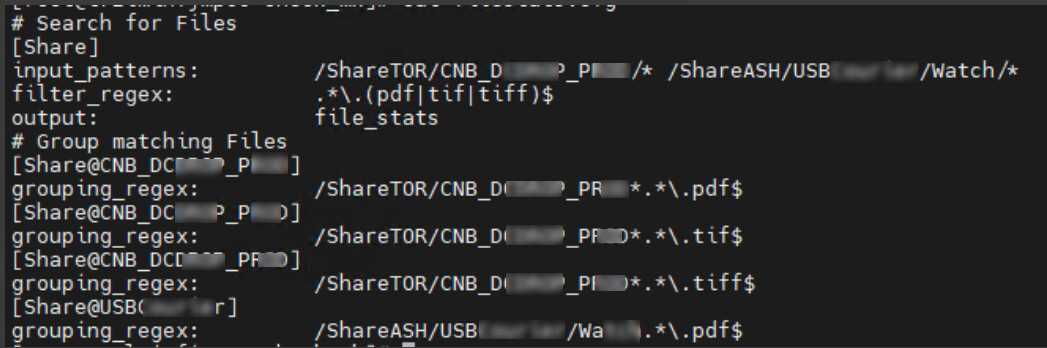

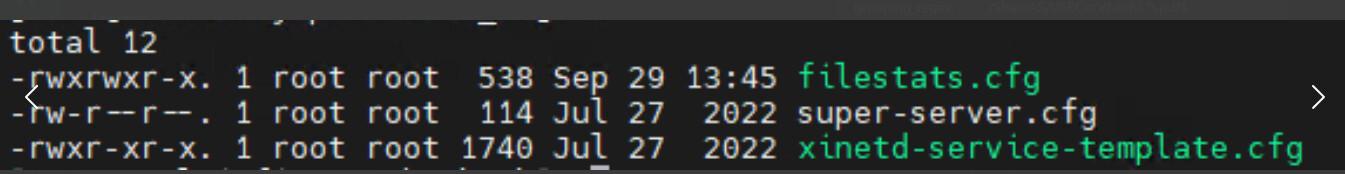

Linux server: filestats.cfg

image1047×348 101 KB

Can you help me figure out if I’m doing something wrong?

Regards, Vix

image1345×174 58.7 KB

5

Did you deploy the mk_filestats.py plugin onto the server?

Once the plugin is on the server, you can run it directly from the console to check what it picks up. For more details, you can use -v or -vv, and for testing purposes you can use --config-file to test with a different config file.

6

Thank you very much, La Soe; I installed the plugin, and the monitoring worked.

Regards,

Vix
