Agent-receiver pairing: "2 is not a valid CSR version"

[antonio.furno (Antonio)]

CMK version: Checkmk Enterprise Edition 2.1.0p14
OS version: Virtual Appliance 1.5.4

Error message:
When we try to register the new server to checkmk server (through the command “cmk-agent-ctl.exe register”), we received this error:
[2023-01-11 14:48:47.532978 +01:00] ERROR [cmk_agent_ctl] src\main.rs:29: Error pairing with checkmk.intesa.it:8000/Intesa
Caused by:
Request failed with code 500 Internal Server Error: Internal Server Error

We checked the log file inside the checkmk instance and we found this error (inside the logs of agent-receiver) when the client perform the pairing:
[2023-01-11 12:59:07 +0100] [91604] [ERROR] Exception in ASGI application
…
cryptography.x509.base.InvalidVersion: 2 is not a valid CSR version

We checked the source code and we verified that, when client generate the CSR use this code snapshot (file agents/cmk-agent-ctl/src/certs.rs), where it set the version “2”:

pub fn make_csr(cn: &str) -> AnyhowResult<(String, String)> {
    // https://github.com/sfackler/rust-openssl/blob/master/openssl/examples/mk_certs.rs
    let rsa = Rsa::generate(2048)?;
    let key_pair = PKey::from_rsa(rsa)?;

    let mut name = X509Name::builder()?;
    name.append_entry_by_nid(Nid::COMMONNAME, cn)?;
    let name = name.build();

    let mut crt_builder = X509Req::builder()?;
    crt_builder.set_version(2)?;
    crt_builder.set_subject_name(&name)?;
    crt_builder.set_pubkey(&key_pair)?;
    crt_builder.sign(&key_pair, MessageDigest::sha256())?;

    Ok((
        String::from_utf8(crt_builder.build().to_pem()?)?,
        String::from_utf8(key_pair.private_key_to_pem_pkcs8()?)?,
    ))
}

but when the agent-receiver verify the request, through the python library “cryptography”, it check the version and if it different of 0 thrown an error:

#[pyo3::prelude::pyfunction]
fn load_der_x509_csr(py: pyo3::Python<'_>, data: &[u8]) -> PyAsn1Result<CertificateSigningRequest> {
    let raw = OwnedRawCsr::try_new(data.to_vec(), |data| asn1::parse_single(data))?;

    let version = raw.borrow_value().csr_info.version;
    if version != 0 {
        let x509_module = py.import("cryptography.x509")?;
        return Err(PyAsn1Error::from(pyo3::PyErr::from_instance(
            x509_module
                .getattr(crate::intern!(py, "InvalidVersion"))?
                .call1((format!("{} is not a valid CSR version", version), version))?,
        )));
    }

    Ok(CertificateSigningRequest {
        raw,
        cached_extensions: None,
    })
}

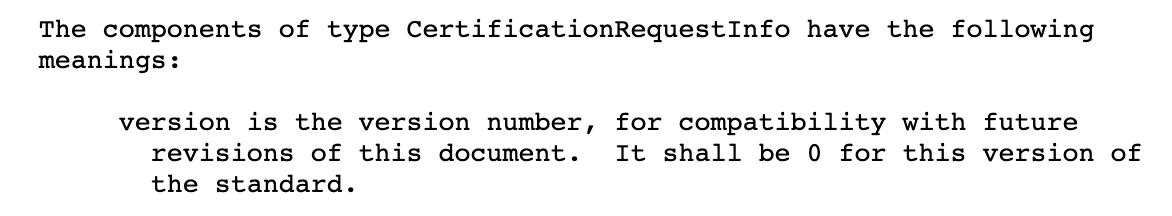

The standard of CSR definition is describe in RFC2986 (https://www.rfc-editor.org/rfc/rfc2986) and affirm that the version of CSR must be 0.

This is a bug of the client cmk-agent-ctl. The client must set the version 0 for the CSR

[Humaer]

@antonio.furno

is not a valid CSR version

Hello Antonio,
I have the same problem at the moment - did you find a solution/workaround for this?

Kind regards
Simon

[AndiU (Andreas Umbreit)]

Good find!

Seems that we got that CSR version wrong indeed.
We’ll fix that.

However, you should never encounter this issue, as the check for the CSR version is not yet included in the cryptography version that we use in Checkmk 2.1.0p14.
Have you done any modifications to the python installation of the Checkmk site?

Can you please check the cryptography version with
python3 -c "import cryptography; print(cryptography.__version__)" (as a site user)?
It should be 3.3.2.

[antonio.furno (Antonio)]

Hi, yes, the problem is related to the version of “cryptography” as a dependency of “pyOpenSSL”.

I needed to install a new library and this library updated the version of pyOpenSSL and “cryptography”. We downgraded the version of pyOpenSLL and “cryptography” and the error disappeared.

The last version work is:
cryptography 37.0.2
pyOpenSSL 22.0.0

Thanks for the support!
