CMK version=2.0.0p34 CRE:
OS version: linux
Hello all and thank you for reading! This is my first Post here and im totaly new to CheckMK.
I want to monitor a Remote Oracle Database from an already monitored linux-appserver.
- On the Linux-Server there was already an agent installed.
- I downloaded the oracle-plugin+plugin-config from the agents my site offers.
- I configured the Oracle-plugin on the linux server following this guide: Oracle-Datenbanken überwachen
- I configured the remote-instance: all i enabled/changed in the mk_oracle.cfg are these to lines:
REMOTE_INSTANCE_1='someuser:somepass::someserver:1521::someSID:19.13:'
REMOTE_ORACLE_HOME='/usr/lib/oracle/19.19/client64'
And the oracle-Services appeared for the linux-host
So far so good. But im not interested in the default oracle-monitoriing-services i just want to execute some custom sql on the monitored instance.
So i added this excample to the mk_oracle.cfg
SQLS_SECTIONS="invalid_objects"
SQLS_DIR=/etc/check_mk
SQLS_MAX_CACHE_AGE=10
invalid_objects () {
SQLS_SIDS=REMOTE_INSTANCE_1
SQLS_ITEM_SID=someSID
SQLS_ITEM_NAME="DB Sessions"
SQLS_SQL=mySQL.sql
}
The mySQL.sql contains this:
/*Syntax help in comments. The first word is always the key word and ends with a ":"*/
/*details:Text to display in the service detail output*/
prompt details: Some details for the service output;
/*perfdata:METRIKNAME=CURRENTVALUE;WARN;CRIT;MAX METRIKNAME=CURRENTVALUE2;WARN;CRIT;MAX*/
prompt perfdata:MyMetricName1=10;15;20;30 MyMetricName2=16;15;20;30;
prompt perfdata:MyMetricName3=21;15;20;30 MyMetricName4=15;15;20;30;
/*long:Text to display in the long output of the service*/
prompt long: Here comes some long output for the service;
prompt long: Here comes some more long output for the service;
/*exit:Status of the service as a number*/
prompt exit:2;

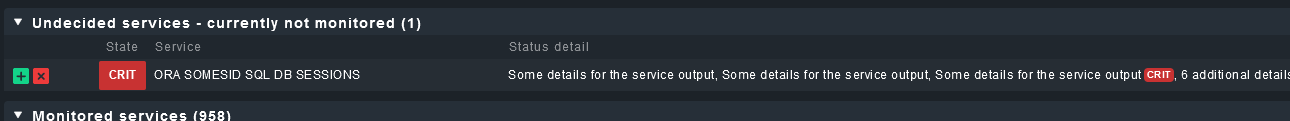

So far so good. But the new Service dont show up in Checkmk
mk_oracle -l shows following at the end:
someSID|iostat_file|Temp File|280|63|4|65|19|116|39|281|2097152|12582912|0|13631488
<<<oracle_sql:sep(58)>>>
[[[someSID|DB Sessions]]]
details: Some details for the service output
perfdata:MyMetricName1=10;15;20;30 MyMetricName2=16;15;20;30
perfdata:MyMetricName3=21;15;20;30 MyMetricName4=15;15;20;30
long: Here comes some long output for the service
long: Here comes some more long output for the service
exit:2
elapsed:.07785
What am i doing wrong?
Thank you very mutch,
Andre
