Hello,

I have to add a check_mk 2.0.0p12.cre on Grafana, so use pnp4nagios.

But I have not this directory:

#:/omd/versions/2.0.0p12.cre/share# ls
check_mk diskspace doc jmx4perl locale man nagvis navicli omd snmp snmpsim

On other checkmk (2.0.0p6.cre) I have it !

#:/omd/versions/2.0.0p6.cre/share# ls
check_mk diskspace doc jmx4perl locale man nagvis navicli omd pnp4nagios snmp snmpsim

In ths two case the 2.0.0p6 and 2.0.0p12 was upgrade from 1.6

Do you know what is the reason ? Can I SCP this file ?

Thank you.

2

Hello, I do some tests :

With 2.0.0p11.cre 2.0.0p6.cre 2.0.0p7.cre 2.0.0p9.cre, I have “pnp4nagios” but not on 2.0.0p12.cre

I read again the description here :

And I still see “nagios”

nagios
nagios1191Ă—234 29.8 KB

We can read this :

With werk #10714 we replaced the old pnp4nagios based graphing system of the
Checkmk Raw Edition. This change now removes some files that were left over
from the previous graphing system which were not used anymore since 2.0.

So what is the new manipulations ?

Thank you.

3
4

For the moment I just install 2.0.0p11.cre instead of 2.0.0p12.cre.

However, I will try some tests with 2.0.0p12.cre en a lab.

Thank you.

5

Hello,

So now I have time to try 2.0.0p14 on debian11.

And i want to use Grafana (like usually ^^)

As I know, we have 2 way :

  • Raw version ≤ 2.0.0p11 with PNP Nagios.

#:/omd/versions/2.0.0p11.cre/share# ls
check_mk diskspace doc jmx4perl locale man nagvis navicli omd pnp4nagios snmp snmpsim

  • Free version/Enterprise (all version) with InfluxDB (then Grafana connect to Influxdb).

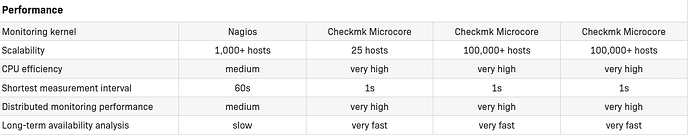

    we can see “Monitoring Core”, and inside we can see that :
    check
    check721Ă—65 14 KB

But to day, on RAW version, we cant use pnp-nagios, and we can’t use influxdb (only with Free/Enterprise).

So,

Today, with new RAW version, is it possible to send metrics on Grafana ?

Thank you

6

Hi Arethusa,

in the RAW Edition it should be possible to get the performance data with the checkmk plugin for grafana:

regards
Andre

2 Likes
7

Interesting,

I will try !

Thank you.

8

That works !

Thank you for your time.

1 Like
