Checkmk data source API problem

Troubleshooting
, , ,
1

CMK version: 2.2.0p23.cre
OS version: Ubuntu 22.04

Error message: INFO [07-01|12:51:43] Request Completed logger=context userId=1 orgId=1 uname=admin method=GET path=/api/datasources/proxy/uid/edqfmqmdgpm2oc/rest/check_mk/api/1.0/version status=404 remote_addr=192.168.65.1 time_ms=6 duration=6.871103ms size=196 referer=http://localhost:3000/connections/datasources/edit/edqfmqmdgpm2oc handler=/api/datasources/proxy/uid/:uid/* status_source=server

Capture d’écran 2024-07-01 à 14.51.33
Capture d’écran 2024-07-01 à 14.51.332386×648 36.2 KB

I’m encountering an issue with the REST API; they are telling me there might be a problem with the versions or the edition of Checkmk. I tried getting the latest version of the Grafana Checkmk Datasource plugin, version 3.3.0 (more precisely this plugin: https://github.com/Checkmk/grafana-checkmk-datasource/releases/download/v3.3.0/tribe-29-checkmk-datasource-3.3.0.zip) . Despite this, it seems that the API route isn’t up-to-date. Consequently, I’m unable to connect my Checkmk server to Grafana v11.1.0.

Should I wait for a plugin update? Or is there possibly an error in how I’m setting things up?

Thanks.

2

Hello
Please, check your config. It seems you are using Checkmk 2.2.0p23 Raw edition (cre), so you must fill this information:
URL: http:///
Edition: Raw Edition
Version: >= 2.2
Also check the credentials you are using.

3

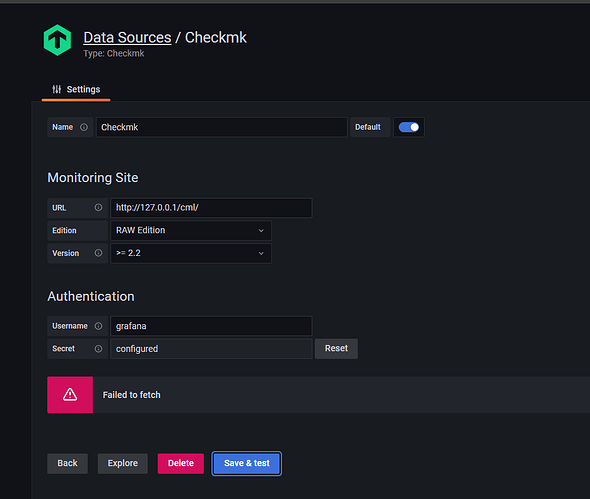

Same problem here on checkmk raw Version: 2.3.0p19

image935×792 29.1 KB

4

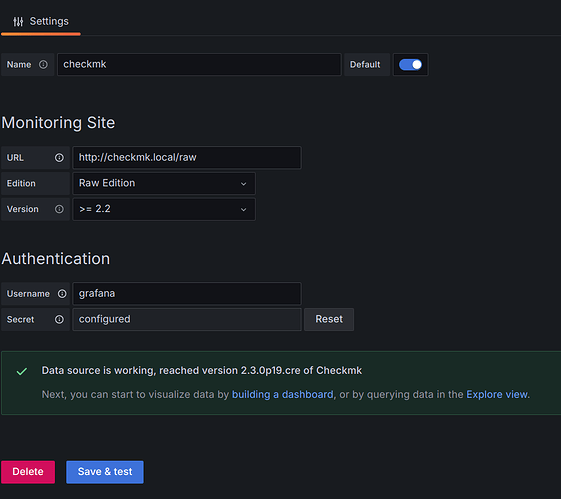

I’ve tried to connect Checkmk Raw Edition 2.3.0p19 to the latest version of the Grafana plugin and there is no issue.

image981×873 49 KB

Please check the following:

  • The connection between Grafana and Checkmk, especially if any of them is running from docker
  • There is no firewall interrupting the communication.
  • The user grafana has administrator permissions
  • Grafana’s logs
  • Checkmk logs (~/var/log/web.log, ~/var/log/apache/access.log, ~/var/log/apache/error.log)
5

I was following the Checkmk Grafana Integration documentation and identified a key issue: the address for the Checkmk data source must include the port 5000 in the format http://127.0.0.1:5000/<checkmk_site>. Additionally, Grafana must be running on the same server as Checkmk for the integration to work; otherwise, it won’t function.

This requirement is also highlighted in the plugin development documentation: Grafana Checkmk Datasource Plugin Development Guide.

Moreover, you’ll need to set several environment variables for proper operation. These can either be exported directly in your environment or defined in a .env file for convenience.

Variable Description Example
CMK_SITE Checkmk site name cmk
CMK_ADMIN Administrator user name for Checkmk cmkadmin
CMK_AUTOMATION Automation user name for Checkmk automation
CMK_PASSWORD Password CMK_ADMIN and CMK_AUTOMATION my_secret
PLAYWRIGHT_TO_CHECKMK_URL URL for connecting Playwright to Checkmk http://127.0.0.1:12345/cmk/
PLAYWRIGHT_TO_GRAFANA_URL URL for connecting Playwright to Grafana http://127.0.0.1:3003/
GRAFANA_USER User name for connecting to Grafana’s Rest API grafana_user
GRAFANA_PASSWORD Password for GRAFANA_USERNAME my_other_secret
GRAFANA_TO_CHECKMK_URL URL for connecting Grafana to Checkmk http://checkmk:5000/cmk/
GRAFANA_TO_CHECKMK_USER Checkmk user name to access the Rest API automation
GRAFANA_TO_CHECKMK_PASSWORD Password for GRAFANA_TO_CHECKMK_USER my_secret
