CheckMK RAW 2.3.0p30 - TLS not activated warning

Troubleshooting
1

CMK version: RAW 2.3.0p30
OS version: RHEL 9

Error message: TLS not activated warning

I am getting this warning in CheckMK RAW edition.

According to this warning I should run “cmk-agent-ctl register”, but I have no luck with that.

Is there a way to resolve this?

Summary

Version: 2.3.0p30, OS: linux, TLS is not activated on monitored host (see details)WARN, Agent plug-ins: 0, Local checks: 0

Details:

Version: 2.3.0p30
OS: linux
The hosts agent supports TLS, but it is not being used.
We strongly recommend to enable TLS by registering the host to the site (using the cmk-agent-ctl register command on the monitored host).
NOTE: A registered host will refuse all unencrypted connections. If the host is monitored by multiple sites, you must register to all of them. This can be problematic if you are monitoring the same host from a site running Checkmk version 2.0 or earlier.
If you can not register the host, you can configure missing TLS to be OK in the setting “State in case of available but not enabled TLS” of the ruleset “Checkmk Agent installation auditing”.WARN
Agent plug-ins: 0
Local checks: 0

2

Hi Brian,

can you explain, what you tried and what the result was?

3

Hi Andre,

I have tried the following according instructions.
Usage: cmk-agent-ctl register --server <SERVER_SPEC> --site --user --hostname

cmk-agent-ctl register --server --site --user --hostname

And got this:

ERROR [cmk_agent_ctl] Failed to discover agent receiver port from Checkmk REST API, both with http and https. Run with verbose output to see errors.

4

Here are my personal notes on registering for both TLS and auto updater. I support CEE instances, so not sure how this may differ with Raw.

TLS:

Linux:
cmk-agent-ctl register --hostname mynewhost --server cmkserver --site mysite --user cmkadmin --password ‘test23’
Windows:
“C:\Program Files (x86)\checkmk\service\cmk-agent-ctl.exe” register --hostname mynewhost --server cmkserver --site mysite --user automation --password “test23”

Agent auto update:

Linux:
cmk-update-agent register -s myserver.example.com -i mysite -H myhost -p https -U cmkadmin -P ‘test123’ -v
Windows:
“C:\Program Files (x86)\checkmk\service\check_mk_agent.exe” updater register

NOTE:
In a distributed env, the TLS must register to the site responsible for polling the host.
The agent updater plugin needs to register against the primary site

5

You can try to add the agent receiver port to the server like e.g. servername:8000

6

Hi Andre,

How do I do that?

7

You do the you already tried, but at the end of the checkmk server fqdn you add :8000

8

Try this Powershell Script:

$hostname = hostname

Invoke-Command -ComputerName $hostname -ScriptBlock { & 'C:\Program Files (x86)\checkmk\service\cmk-agent-ctl.exe' register --hostname $using:hostname --server YOURCHECKMKSERVER --site YOURSITE --user checkmk-register --password 'PASSWORD' }

echo "finished"

for --server use FQDN

I am using it on a SCCM Server so I can easily automate it

9

Hi,

Sorry for the late reply.
Was caught up with some else.

Still no luck resolving this.

Failed to discover agent receiver port from Checkmk REST API, both with http and https.
How can I verify that the REST API agent receiver port is available or if the REST API is working or configured correctly?

10

You dont need to configure REST API. Do you have a distributed monitoring?

11

No distributed monitoring.

Why am I getting that error?

12

In my case I dont need to type the port 8000. Can you try it aswell?

13

Try this:

Create a new user inside CheckMK and name it like checkmk-register. Be sure that the “checkmk-register” user got enough permissions.

Open CMD as administrator and type this:

"C:\Program Files (x86)\checkmk\service\cmk-agent-ctl.exe" register --hostname HOSTNAME --server FQDNOFCHECKMKSERVER --site SITENAME --user checkmk-register --password 'PASSWORD'

14

Hi,

These are the only valid arguments:

C:\Program Files (x86)\checkmk\service>cmk-agent-ctl.exe register

error: the following required arguments were not provided:

–server <SERVER_SPEC>

–site

–user

–hostname

Usage: cmk-agent-ctl.exe register --server <SERVER_SPEC> --site --user --hostname

For more information, try ‘–help’.

15

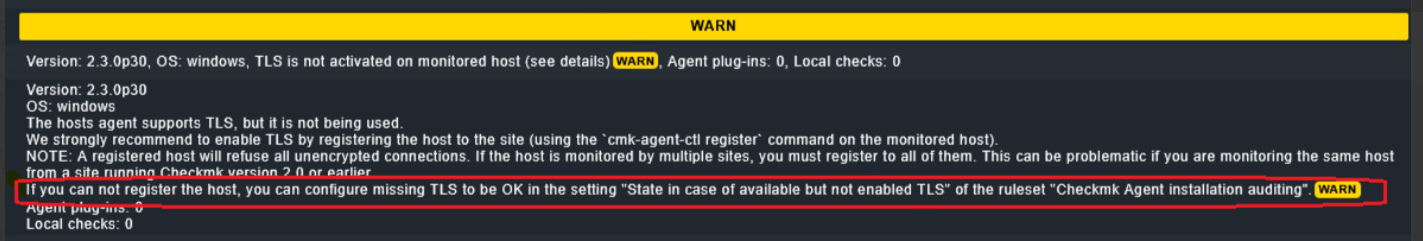

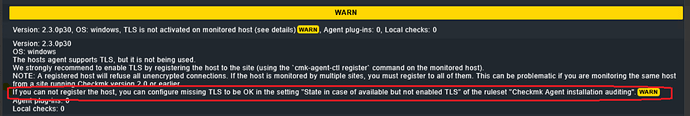

Reading the Warning message I noticed this.

from a security pov, would you recommend it?

image1423×241 104 KB

16

TLS encryption is not mandatory.

17

Please show exactly what you typed into cmd. I double checked all and I already get the PEM encoded certificate in my prompt.

I think you did a mistate.

18

Hi,

I am using arguments the command requires.

Usage: cmk-agent-ctl.exe register --server <SERVER_SPEC> --site --user --hostname

For more information, try ‘–help’.

This is what and how I entered:
cmk-agent-ctl.exe register --server SERVER-FQDN --site CMKSITE --user USERNAME --hostname HOSTNAME

Result:
[2025-05-13 09:26:50.169657 -03:00] ERROR [cmk_agent_ctl] src/main.rs:29: Failed to discover agent receiver port from Checkmk REST API, both with http and https. Run with verbose output to see errors.

19

Is this also normal output?

cmk-agent-ctl.exe status

Version: 2.3.0p30
Agent socket: operational
IP allowlist: any
Legacy mode: enabled
No connections <<<<<<=================== is this normal?

20

Why exactly didn’t you enter a password for the user?
