Discovery on Device that doesn't use Sysdesc

Checkmk Dev&Exchange
1

I posted about this earlier but deleted it because I thought I had it. I have a Leoch Battery device. They ONLY use private OIDs. I know checkmk normally will scan the .1.3.6.1.2.1.1 and first use like the sysDescr .1.3.6.1.2.1.1.1. then from there you trigger your additional plugin. Unfortunatly their device doesn’t return that at all. I was trying to query one of their private OIDs but that doesn’t seem to be working. I fear that because the device doesn’t return a sysDesc then checkmk is just abandoning all together. How can you handle this situation when developing a plugin for a device that doesn’t use sysDesc

here is the snmp_section

snmp_section_leoch_Lithium = SimpleSNMPSection(
	name="leoch_Lithium",
	parse_function = parse_leoch_Lithium,
	supersedes=['snmp_info','uptime','if64','if','interfaces'],
	detect = exists(".1.3.6.1.4.1.51232.70.1.1"),
	fetch =........

Query of the sysDesc OID

OMD[dev]:~$ snmpwalk -v 2c -c public 192.168.10.250 .1.3.6.1.2.1.1.1
Error in packet.
Reason: wrongType (The set datatype does not match the data type the agent expects)

Query of a Private OID

OMD[dev]:~$ snmpwalk -v 2c -c public 192.168.10.250 .1.3.6.1.4.1.51232.70.1.1
SNMPv2-SMI::enterprises.51232.70.1.1 = STRING: "0"

obviously if i force the detection of the plugin against the host it works and discovers the services.

OMD[dev]:~$ cmk --debug -vI --detect-plugins=leoch_Lithium PowerSystem
Discovering services and host labels on: PowerSystem
PowerSystem:
+ FETCHING DATA
Get piggybacked data
+ ANALYSE DISCOVERED HOST LABELS
SUCCESS - Found no new host labels
+ ANALYSE DISCOVERED SERVICES
+ EXECUTING DISCOVERY PLUGINS (1)
SUCCESS - Found no new services

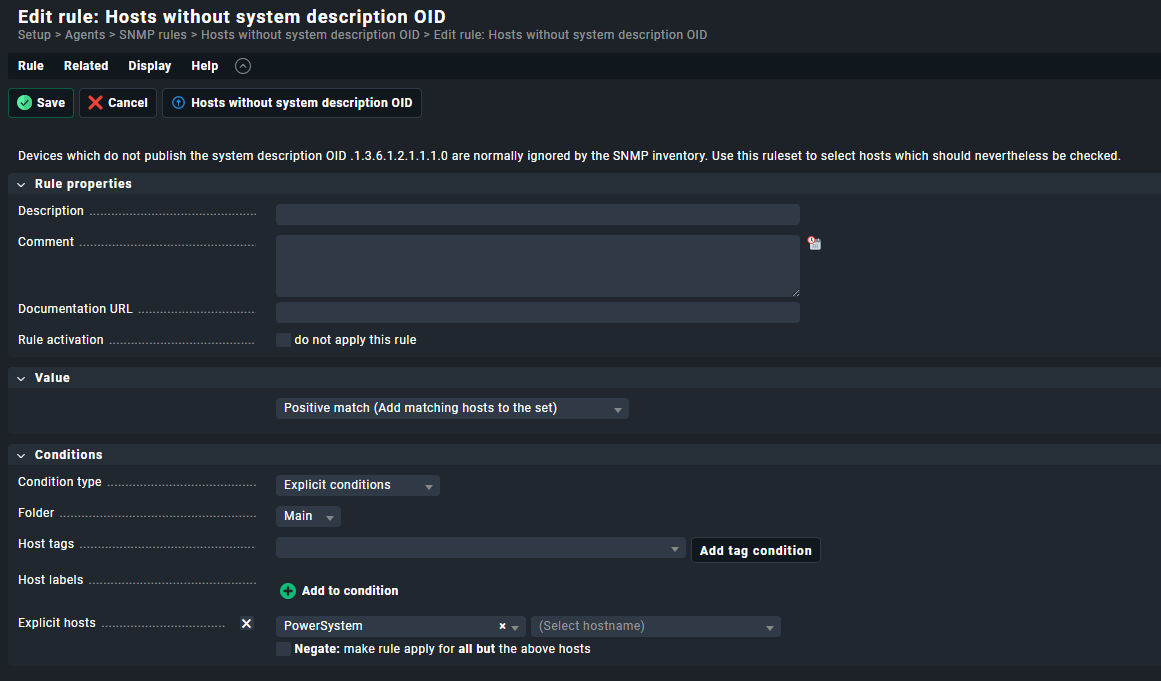

Also I have added it to the rule that tells it the device doesn’t have sysDesc

image1161×681 40.4 KB

2

This is a very bad idea.

What happens on this device if you do a “cmk --debug -vvI hostname”?
If your detect function is working, you should see that CMK is sending a request to fetch the OID and also gets a positiv result.

3

I don’t usually do a supersedes but none of those plugins will work and I just wanted to try and make it not even attempt them. since this vendor is 100% private OID’s only.

I think though your suggestion led to some good info. when I run the command i noticed the following plugings being triggered

SNMP scan found hr_mem leoch_Lithium openbsd_sensors snmp_quantum_storage_info snmp_info, snmp_uptime

snmp_info: Fetching data (SNMP walk cache cleared)
Executing BULKWALK (v2c) of “.1.3.6.1.2.1.1.1” on PowerSystem
ERROR: SNMP error 7/0 (wrongType (The set datatype does not match the data type the agent expects))

the only way I can get this to stop is by making a config rule in check my to disable the snmp sections snmp_info, snmp_uptime. as long as they are allowed to run it breaks the inventory and nothing works. this is why i was using the supersedes was to try and stop these other plugins from running :(. suggestions?

4

This is the only way to stop not working SNMP section from trying to be fetched.

For such devices → create a “Disabled SNMP section” rule put all SNMP sections inside that are not working. Or better said for this device, leave only the “leoch_lithium” section active.

5

well, that is too bad. I was hoping there was a way to handle it in the plugin, so we don’t have to do custom rules every time we add one of these devices. I will probably make it happen with a Tag. Thanks for the help.
