Error when activating changes

su-overlord · March 4, 2020, 12:31pm

Hi all,

I have remove to devices and their parents. Done a tabula-raza and a bulk discovery but everytime I try activare changes I get this

State: Failed. Started at: 12:24:11. Finished at: 12:24:13.
Failed: Error running automation call restart (exit code 1), error:

not all arguments converted during string formatting

If I discard changes I get this:

Error running automation call restart (exit code 1), error:

not all arguments converted during string formatting

Any ideas on how to solve this essentially I am stuck.

Norm · March 4, 2020, 9:26pm

Hi, let’s get this fixed together but I need more information to understand what you are doing.

Are you talking about hosts or services? If you are talking about a host, are you deleting the host or what are you doing in particular?

So you are deleting a host and why and where would you do a bulk discovery or tabula rasa?

Can you please provide a screenshot of the changes you want to activate. Please censor sensitive information. But this would help to get a better understanding of the situation you’re stuck with.

Looking forward to your reply.

su-overlord · March 5, 2020, 9:15am

Hi,

Thanks for the reply.

Yes I am deleting several hosts. These are no longer in service.

Doing a bulk discovery and Tabula Rasa to refresh stale services and remove the devices and update offline devices.

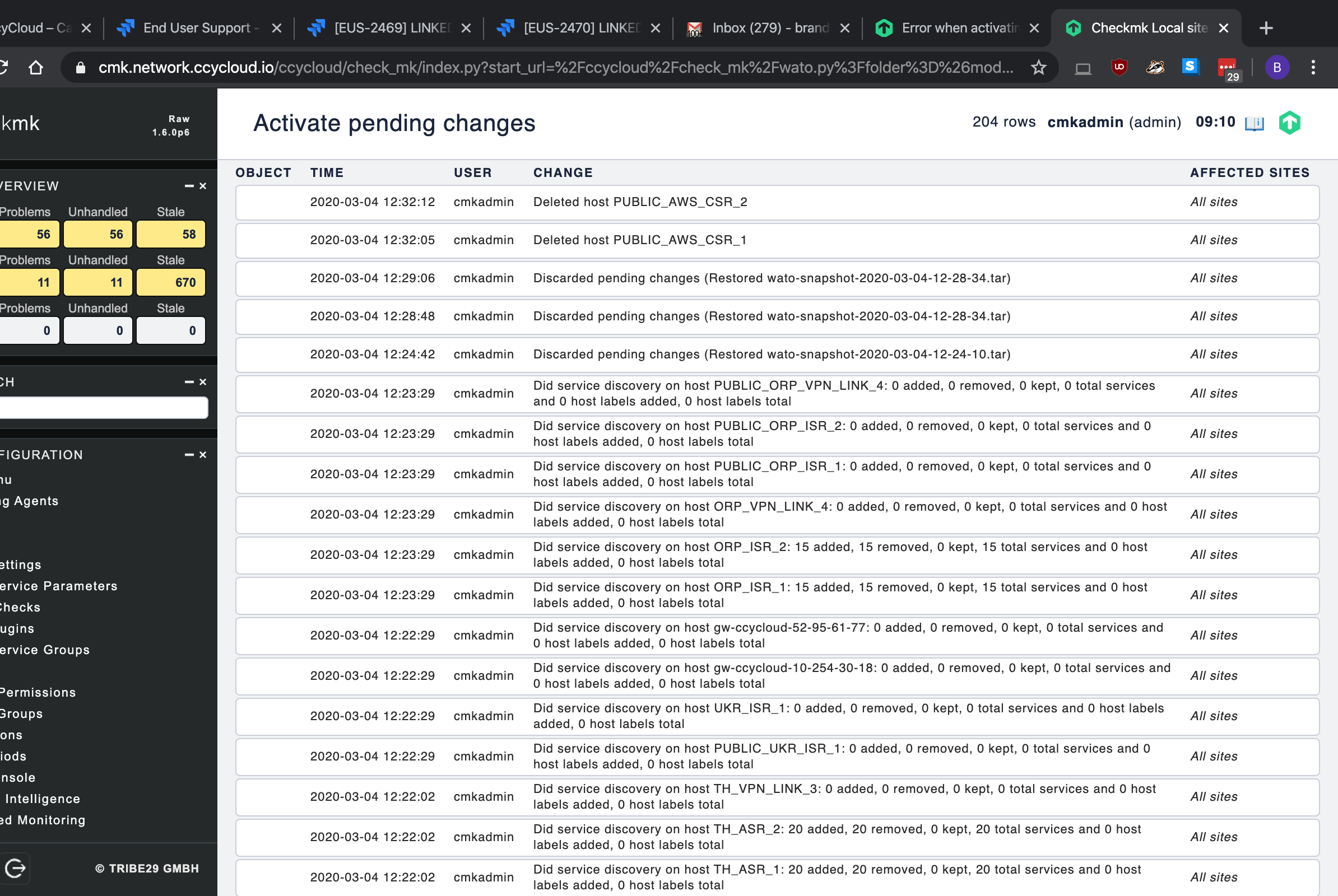

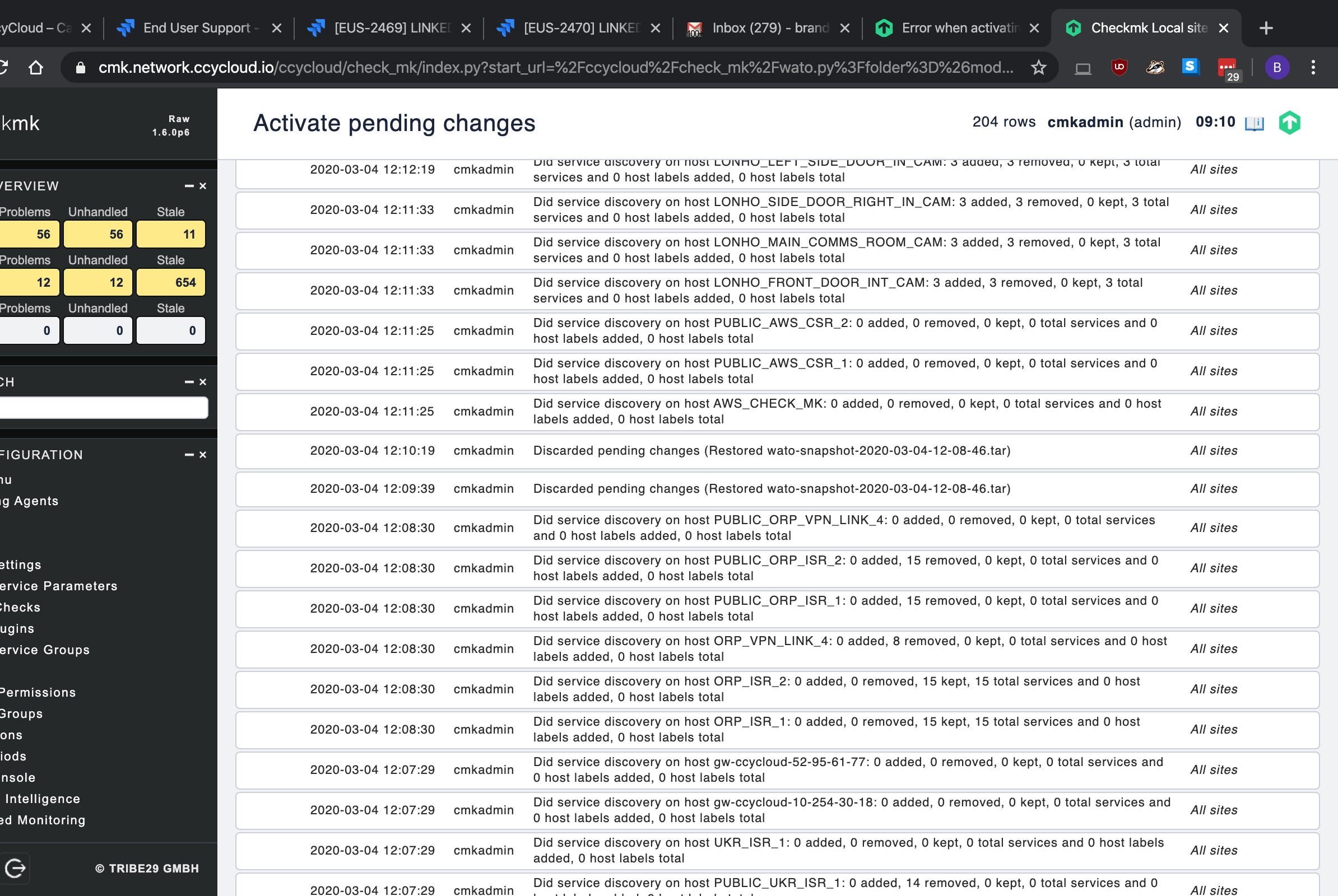

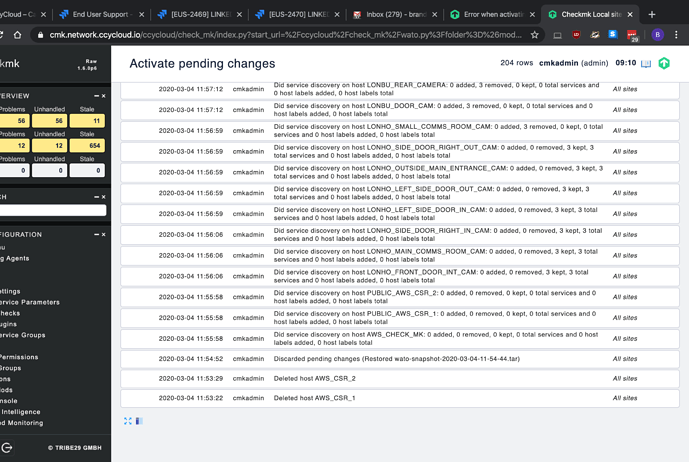

Please see attached screenshot below:

Norm · March 6, 2020, 12:17pm

There is no need to do that… You deleted some hosts and before saved your changes you did a bulk discovery… On the already deleted hosts… I tested this with a single host and i got no problems at all.

The most important question is:
Is it possible to discard all of your changes?

If not we have to give this a closer look. If you can discard all of your changes then please do it and after that delete the hosts you want to delete and save your changes before doing changes again. Then you can do whatever you want.

Some words about the bulk discovery. Please use this tool with caution, especially the tabula rasa! Only use it if you know what you are doing. Because you’re changing the configuration of every host in the monitoring. If there is no need to do that then don’t use it. In most cases you’re doing more bad then good. This is only a warning not a hate against you.

Looking forward to this and keep me updated

tosch · March 6, 2020, 12:31pm

Hey,

I guess at this point, with this large list of pending changes, including a lot of discardings, it’s better to try to activate the changes on command line and check for configuration problems if they occure at config generation. If this activation on the command line runs properly the pending changes could be deleted from the file which holds the information for wato display.
At the moment you are already at a point where it’s difficult to determine which changes should be done and which not and discarding them again won’t help fixing the problem.

su-overlord · March 12, 2020, 5:40pm

@Norm So I am unable to discard changes at all.

@tosch What would be the commands to do this?

Thanks both for your assistance

tosch · March 13, 2020, 7:30am

At the commandline you can activate your changes and restart the core with the command cmk -R. It would return an error if any problems are in the configuration files.
After successful activation the pending changes keep unactivate in WATO because the activation process was activated beside WATO. Therefor you can empty the file ~site/var/check_mk/wato/replication_changes_<site>.mk.

su-overlord · March 18, 2020, 9:14am

@tosch,

So ran the cmd’s as specified and got this:

OMD[ccycloud]:~$ cmk -R
Generating configuration for core (type nagios)...
WARNING: Found configured rules of deprecated check group "cisco_bgp_peer". These rules are not used by any check. Maybe this check group has been renamed during an update, in this case you will have to migrate your configuration to the new ruleset manually. Please check out the release notes of the involved versions. You may use the page "Deprecated rules" in WATO to view your rules and move them to the new rulesets.
OK
Validating Nagios configuration...ERROR:
An error occurred: not all arguments converted during string formatting

Now we did have a cisco PGP plugin but we removed it as we never got it working we also upgraded from 1.4 to 1.6 but I can’t find the cisco_bgp_peer rule in depreciated rules.

Any ideas?

tosch · March 18, 2020, 9:20am

Can you run cmk -U -vv to maybe get more information on the config generation process?

su-overlord · March 18, 2020, 11:38am

Hi @tosch,

I have attached the output below:

OMD[ccycloud]:~$ cmk -U -vv
Generating configuration for core (type nagios)...
WARNING: Found configured rules of deprecated check group "cisco_bgp_peer". These rules are not used by any check. Maybe this check group has been renamed during an update, in this case you will have to migrate your configuration to the new ruleset manually. Please check out the release notes of the involved versions. You may use the page "Deprecated rules" in WATO to view your rules and move them to the new rulesets.
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_JOAN_SHANGHAI_MEETING_ROOM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_PHONE_BOOTH_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONBU_AP_01.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_JOAN_PETRA_MEETING_ROOM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_CORE_SWITCH.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_PHONE_CAIRO.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_RASPI_4.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_SIDE_DOOR_RIGHT_IN_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_RASPI_5.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/PUBLIC_ORP_VPN_LINK_4.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_PHONE_ALEXANDRIA.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/TH_ASR_2.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/TH_ASR_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_JOAN_CUSCO_MEETING_ROOM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONBU_CORE_SWITCH.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONBU_REAR_CAMERA.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_MAIN_COMMS_ROOM_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_PHONE_LONDINIUM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/PUBLIC_LONHO_ASR_2.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_FRONT_DOOR_INT_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_JOAN_ALEXANDRIA_MEETING_ROOM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_REAR_DOOR_LIFT_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_JOAN_VENICE_MEETING_ROOM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_LEFT_SIDE_DOOR_IN_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/ORP_ISR_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/PUBLIC_LONBU_ISR_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONBU_ISR_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_JOAN_CAIRO_MEETING_ROOM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_PHONE_SHANGHAI.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_BALCONY_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_JOAN_SANTIAGO_MEETING_ROOM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/gw-ccycloud-10-254-30-18.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_AP_04.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_AP_05.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_SIDE_DOOR_RIGHT_OUT_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_ASR_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_AP_01.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_AP_02.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_AP_03.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_PHONE_SWITCH_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_PHONE_SWITCH_3.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_PHONE_SWITCH_2.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_CORE_SWITCH.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_FRONT_ENTRANCE_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/UKR_ISR_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/PUBLIC_TH_VPN_LINK_3.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_STADIUM_PRINTER.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_JOAN_JERUSALEM_MEETING_ROOM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_PHONE_BABYLON.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_JOAN_BOSTON_MEETING_ROOM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/AWS_CHECK_MK.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_AP_04.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_PHONE_BOOTH_3.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_ASR_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/ORP_VPN_LINK_4.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_ASR_2.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_PHONE_TULUM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_RASPI_2.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_RASPI_3.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_AP_07.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_RASPI_6.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/PUBLIC_TH_ASR_2.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/PUBLIC_TH_ASR_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_PHONE_JERUSALEM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/PUBLIC_LONHO_ASR_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/gw-ccycloud-52-95-61-77.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/PUBLIC_UKR_ISR_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/PUBLIC_NYC_ASR_2.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_JOAN_LONDINIUM_MEETING_ROOM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/PUBLIC_NYC_ASR_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_PRINTER.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_RASPI_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_AP_01.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_AP_02.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_AP_03.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_PHONE_BOOTH_2.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_AP_05.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_AP_06.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_ASR_2.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_AP_08.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_JOAN_BABYLON_MEETING_ROOM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_JOAN_TULUM_MEETING_ROOM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_LEFT_SIDE_DOOR_OUT_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/TH_VPN_LINK_3.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_FRONT_DOOR_INT_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_OUTSIDE_MAIN_ENTRANCE_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_COMPLIANCE_UFXB_PRINTER.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/ORP_ISR_2.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_COMMS_ROOM_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/PUBLIC_ORP_ISR_1.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_SMALL_COMMS_ROOM_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/PUBLIC_ORP_ISR_2.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/NYC_REAR_DOOR_IN_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONBU_DOOR_CAM.mk
Loading autochecks from /omd/sites/ccycloud/var/check_mk/autochecks/LONHO_RASPI_7.mk
Try aquire lock on /omd/sites/ccycloud/var/check_mk/stored_passwords
Got lock on /omd/sites/ccycloud/var/check_mk/stored_passwords
Releasing lock on /omd/sites/ccycloud/var/check_mk/stored_passwords
Released lock on /omd/sites/ccycloud/var/check_mk/stored_passwords
OK
Precompiling host checks...Creating precompiled host check config...
Try aquire lock on /omd/sites/ccycloud/var/check_mk/base/precompiled_check_config.mk.orig
Got lock on /omd/sites/ccycloud/var/check_mk/base/precompiled_check_config.mk.orig
Releasing lock on /omd/sites/ccycloud/var/check_mk/base/precompiled_check_config.mk.orig
Released lock on /omd/sites/ccycloud/var/check_mk/base/precompiled_check_config.mk.orig
Precompiling host checks...
LONHO_JOAN_SHANGHAI_MEETING_ROOM:(no Check_MK checks)
LONHO_PHONE_BOOTH_1:(no Check_MK checks)
LONBU_AP_01     : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONBU_AP_01.
NYC_JOAN_PETRA_MEETING_ROOM:(no Check_MK checks)
NYC_CORE_SWITCH : cisco_cpu_multiitem cisco_fru_module_status cisco_mem cisco_power cisco_stack cisco_temperature snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/NYC_CORE_SWITCH.
LONHO_PHONE_CAIRO:(no Check_MK checks)
LONHO_RASPI_4   :(no Check_MK checks)
LONHO_SIDE_DOOR_RIGHT_IN_CAM: if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_SIDE_DOOR_RIGHT_IN_CAM.
LONHO_RASPI_5   :(no Check_MK checks)
PUBLIC_ORP_VPN_LINK_4:(no Check_MK checks)
LONHO_PHONE_ALEXANDRIA:(no Check_MK checks)
TH_ASR_2        : cisco_cpu_multiitem cisco_fru_power cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/TH_ASR_2.
TH_ASR_1        : cisco_cpu_multiitem cisco_fru_power cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/TH_ASR_1.
NYC_JOAN_CUSCO_MEETING_ROOM:(no Check_MK checks)
LONBU_CORE_SWITCH: snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONBU_CORE_SWITCH.
LONBU_REAR_CAMERA: if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONBU_REAR_CAMERA.
LONHO_MAIN_COMMS_ROOM_CAM: if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_MAIN_COMMS_ROOM_CAM.
LONHO_PHONE_LONDINIUM:(no Check_MK checks)
PUBLIC_LONHO_ASR_2: if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/PUBLIC_LONHO_ASR_2.
NYC_FRONT_DOOR_INT_CAM: if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/NYC_FRONT_DOOR_INT_CAM.
LONHO_JOAN_ALEXANDRIA_MEETING_ROOM:(no Check_MK checks)
NYC_REAR_DOOR_LIFT_CAM: if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/NYC_REAR_DOOR_LIFT_CAM.
LONHO_JOAN_VENICE_MEETING_ROOM:(no Check_MK checks)
LONHO_LEFT_SIDE_DOOR_IN_CAM: if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_LEFT_SIDE_DOOR_IN_CAM.
ORP_ISR_1       : cisco_cpu_multiitem cisco_fru_power cisco_hsrp cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/ORP_ISR_1.
PUBLIC_LONBU_ISR_1: cisco_cpu_multiitem cisco_fru_power cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/PUBLIC_LONBU_ISR_1.
LONBU_ISR_1     : cisco_cpu_multiitem cisco_fru_power cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONBU_ISR_1.
LONHO_JOAN_CAIRO_MEETING_ROOM:(no Check_MK checks)
LONHO_PHONE_SHANGHAI:(no Check_MK checks)
NYC_BALCONY_CAM :(no Check_MK checks)
NYC_JOAN_SANTIAGO_MEETING_ROOM:(no Check_MK checks)
gw-ccycloud-10-254-30-18:(no Check_MK checks)
NYC_AP_04       : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/NYC_AP_04.
NYC_AP_05       : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/NYC_AP_05.
LONHO_SIDE_DOOR_RIGHT_OUT_CAM: if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_SIDE_DOOR_RIGHT_OUT_CAM.
LONHO_ASR_1     : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_ASR_1.
NYC_AP_01       : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/NYC_AP_01.
NYC_AP_02       : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/NYC_AP_02.
NYC_AP_03       : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/NYC_AP_03.
LONHO_PHONE_SWITCH_1: snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_PHONE_SWITCH_1.
LONHO_PHONE_SWITCH_3: snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_PHONE_SWITCH_3.
LONHO_PHONE_SWITCH_2: snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_PHONE_SWITCH_2.
LONHO_CORE_SWITCH: snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_CORE_SWITCH.
NYC_FRONT_ENTRANCE_CAM: if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/NYC_FRONT_ENTRANCE_CAM.
UKR_ISR_1       :(no Check_MK checks)
PUBLIC_TH_VPN_LINK_3:(no Check_MK checks)
LONHO_STADIUM_PRINTER:(no Check_MK checks)
LONHO_JOAN_JERUSALEM_MEETING_ROOM:(no Check_MK checks)
LONHO_PHONE_BABYLON:(no Check_MK checks)
NYC_JOAN_BOSTON_MEETING_ROOM:(no Check_MK checks)
AWS_CHECK_MK    :(no Check_MK checks)
LONHO_AP_04     : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_AP_04.
LONHO_PHONE_BOOTH_3:(no Check_MK checks)
NYC_ASR_1       : cisco_cpu_multiitem cisco_fru_power cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/NYC_ASR_1.
ORP_VPN_LINK_4  : cisco_asa_conn cisco_asa_connections cisco_asa_svcsessions cisco_cpu_multiitem snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/ORP_VPN_LINK_4.
NYC_ASR_2       :(no Check_MK checks)
LONHO_PHONE_TULUM:(no Check_MK checks)
LONHO_RASPI_2   :(no Check_MK checks)
LONHO_RASPI_3   :(no Check_MK checks)
LONHO_AP_07     : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_AP_07.
LONHO_RASPI_6   :(no Check_MK checks)
PUBLIC_TH_ASR_2 : cisco_cpu_multiitem cisco_fru_power cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/PUBLIC_TH_ASR_2.
PUBLIC_TH_ASR_1 : cisco_cpu_multiitem cisco_fru_power cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/PUBLIC_TH_ASR_1.
LONHO_PHONE_JERUSALEM:(no Check_MK checks)
PUBLIC_LONHO_ASR_1: if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/PUBLIC_LONHO_ASR_1.
gw-ccycloud-52-95-61-77:(no Check_MK checks)
PUBLIC_UKR_ISR_1: cisco_cpu_multiitem cisco_fru_power cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/PUBLIC_UKR_ISR_1.
PUBLIC_NYC_ASR_2: cisco_cpu_multiitem cisco_fru_power cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/PUBLIC_NYC_ASR_2.
LONHO_JOAN_LONDINIUM_MEETING_ROOM:(no Check_MK checks)
PUBLIC_NYC_ASR_1: cisco_cpu_multiitem cisco_fru_power cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/PUBLIC_NYC_ASR_1.
NYC_PRINTER     :(no Check_MK checks)
LONHO_RASPI_1   :(no Check_MK checks)
LONHO_AP_01     : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_AP_01.
LONHO_AP_02     : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_AP_02.
LONHO_AP_03     : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_AP_03.
LONHO_PHONE_BOOTH_2:(no Check_MK checks)
LONHO_AP_05     : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_AP_05.
LONHO_AP_06     : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_AP_06.
LONHO_ASR_2     : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_ASR_2.
LONHO_AP_08     : if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_AP_08.
LONHO_JOAN_BABYLON_MEETING_ROOM:(no Check_MK checks)
LONHO_JOAN_TULUM_MEETING_ROOM:(no Check_MK checks)
LONHO_LEFT_SIDE_DOOR_OUT_CAM: if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_LEFT_SIDE_DOOR_OUT_CAM.
TH_VPN_LINK_3   : cisco_asa_conn cisco_asa_connections cisco_asa_svcsessions cisco_cpu_multiitem snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/TH_VPN_LINK_3.
LONHO_FRONT_DOOR_INT_CAM: if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_FRONT_DOOR_INT_CAM.
LONHO_OUTSIDE_MAIN_ENTRANCE_CAM: if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_OUTSIDE_MAIN_ENTRANCE_CAM.
LONHO_COMPLIANCE_UFXB_PRINTER:(no Check_MK checks)
ORP_ISR_2       : cisco_cpu_multiitem cisco_fru_power cisco_hsrp cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/ORP_ISR_2.
NYC_COMMS_ROOM_CAM:(no Check_MK checks)
PUBLIC_ORP_ISR_1: cisco_cpu_multiitem cisco_fru_power cisco_hsrp cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/PUBLIC_ORP_ISR_1.
LONHO_SMALL_COMMS_ROOM_CAM: if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONHO_SMALL_COMMS_ROOM_CAM.
PUBLIC_ORP_ISR_2: cisco_cpu_multiitem cisco_fru_power cisco_hsrp cisco_mem cisco_redundancy cisco_temperature if64 snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/PUBLIC_ORP_ISR_2.
NYC_REAR_DOOR_IN_CAM: if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/NYC_REAR_DOOR_IN_CAM.
LONBU_DOOR_CAM  : if snmp_info snmp_uptime ==> /omd/sites/ccycloud/var/check_mk/precompiled/LONBU_DOOR_CAM.
LONHO_RASPI_7   :(no Check_MK checks)
OK

tosch · March 18, 2020, 3:51pm

Okay, the generation of the config works fine, no error. Can you now give a verbose try to activate anything?

cmk -R -vv

You can send me the output via PM because this outputs can contain sensible data.

su-overlord · March 20, 2020, 9:22am

@tosch ,

I have sent this to you

tosch · March 20, 2020, 9:31am

Yep, thanks, I have seen, was just a bit busy the last days.

Badly the verbose output does not provide any further hints for locating the issue.
Can you check if the direct call for nagios configuration validation gives some more output?

/omd/sites/ccycloud/bin/nagios -v /omd/sites/ccycloud/tmp/nagios/nagios.cfg

system · April 19, 2020, 7:31pm

This topic was automatically closed 30 days after the last reply. New replies are no longer allowed.
