CMK version:2.2.0p32
Hi
I’m trying to use the rule “hostname translation for piggybacked hosts” for a specific host that exist double in our vSphere enviroment with different domain names.
Host1: server01.test.com
Host2: server01.prod.com
I’m trying to translate only Host2 into checkmk, but in our case it only translate Host1.
Can someone help me with this? I’ve tried with this rules, but still only tranlase Host1.
I’ve made this two Rules:

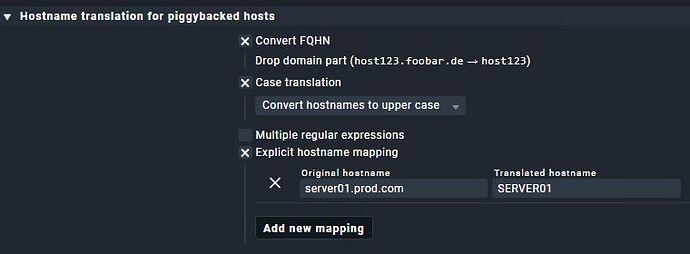

Rule Position 0:
Rule Position 1:
Hi BoringUser,
i don´t really understand, what the expected target naming in checkmk should be.
Could you create a table “source name in vCenter” → “target name” in checkmk ?
What are the conditions in the first rule?
Currently the second rule will not change anything in addition to the first rule, if there are no conditions set.
Hello Andre,
The first rule has no condition.
In our vCenter, we have various clients that are also named with their domains. Unfortunately, there are a few clients with the same name but a different domain.
Here is an example of how servers are named in our vCenter and how they are monitored in our checkmk:
server01.test.com
server02.test.com
server03.test.com → (this is the problem, I want to exclude this from translation)
server03.prod.com → SERVER03
server04.prod.com → SERVER04
server05.prod.com → SERVER05
On our CheckMK server, the clients are named only by their hostname without the domain, and we are only monitoring the productive systems (*.prod.com).
For Piggyback Translation, I would like to exclude specific clients or ideally all clients ending with the domain “*.test.com.” I have tried setting up several rules to do this, but I haven’t figured out the best way to implement it yet.
I think you could rewrite the prod hosts with regex match groups.
“Multiple regular expressions” - Add expression.
(.*)\.prod\.com -> \1
I can´t test, in which order the piggyback names are renamed, depending on the order, the hostname might already be upper case, when the regex rename is reached.
If so, you need to rename the Regex to uppercase.
You can see the resulting hostnames in ~/tmp/check_mk/piggyback to see, what happens.
I see various variations under ~/tmp/check_mk/piggyback (uppercase, lowercase, and with and without domain):
server03
SERVER03
server03.test.com
SERVER03.TEST.COM
server03.prod.com
SERVER03.PROD.COM
However, I receive the warning for all hosts “[piggyback] success (but no data found for this host), Missing monitoring data for plugins”.
This is what my rule looks like now:
You can just delete all folder combinations of one test host, the new folder will be recreated by the next run where piggyback data is being present.
Then you see, how the rewrite currently works.
And i think I remember that only one rule matches the conditions, so you may need the UPPERCASE and Convert FQHN in one rule with the regex renaming.
So I have now deleted all entries with server03.
After that, I only saw the following in the piggyback folder, all in lowercase:
server03
server03.test.com
The (*.prod.com) variants are no longer present.
Then, in addition to the existing rule, I also activated FQHN and upper case.
After that, I have the following entries in the piggyback folder:
server03
server03.test.com
SERVER03
In CheckMK, I see that the warnings have disappeared, but for server03, I still see that it is taking the wrong piggyback translation from “server03.test.com”.
The old folders dont get deleted automatically, everything seems to be correct and the lowercase server03 is a leftover.
Just clean up again with the new ruleset and everything should be fine
Before you do this you need a rule that renames your “server03.test.com” to something else if you don’t want to see it inside CMK.
In your first rule with the regular expression i would also add an explicit mapping for something like “server03.test.com” → “server03-dont-import” or some other name
Now your rule with capitalization and short name should give the correct result.
Hi Andreas
Thanks for your input. But it still not working. Seems I’m doing something wrong.

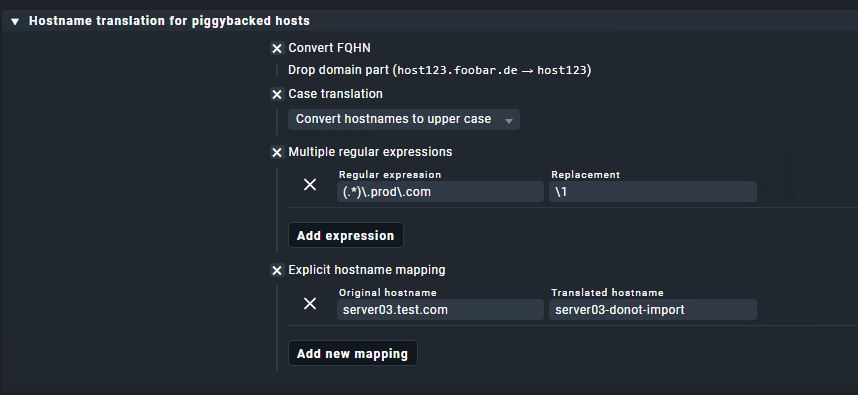

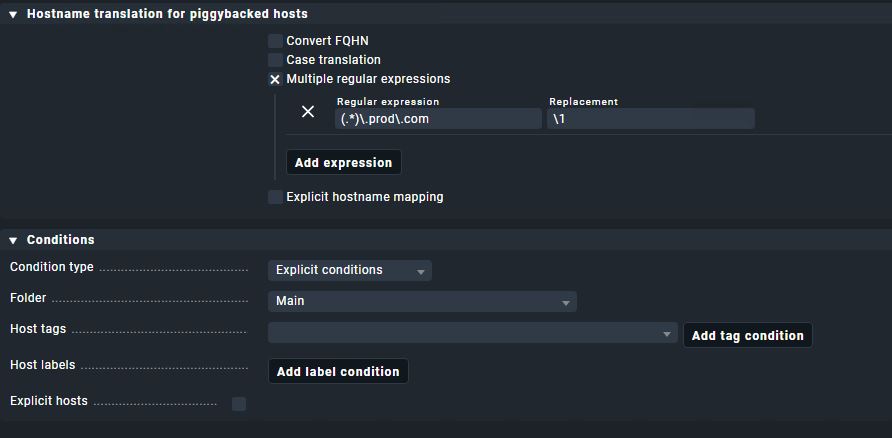

I made a new rule at position 0:

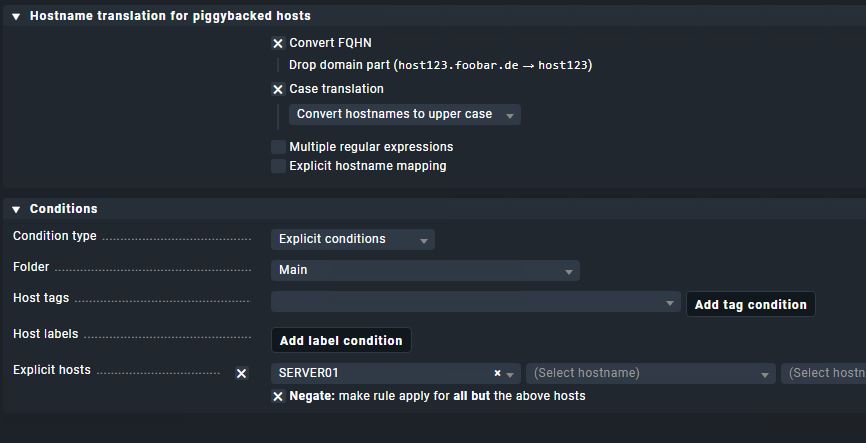

Than second rule at position 1:
In “/omd/sites/…/piggyback” I see only one directory named “SERVER03”.
When I open the file inside this directory I see both clients listed.
You can check if your first rule works if this is the only active one.
If you don’t see the renamed host inside the piggyback folder than something does not match in your rule.
When the first rule is only active it works, I see in the piggyback folder:
After activating rule 2 I see this folders:
But it’s not working. This is my second rule:
In the second rule there should be no explicit renaming as this host should not exists anymore inside the data.
It works now Thank you very much for the help.

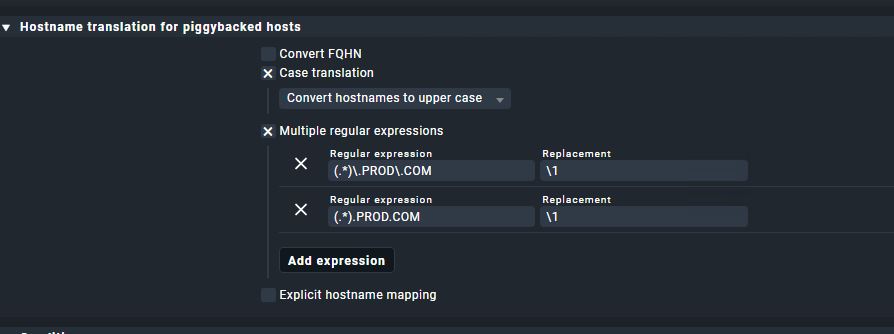

I just changed my second rule and than it finally worked:
Nice that it works now.
You don´t need the second regex shown in the screenshot, the only difference to the first is that the “.” dots are escaped to be compared as a character and not as their regex function “any single character”.
The second regex would for example also match the string serverXPRODYCOM
Hi Andre
Thank you too for your help.
The first regex didn’t work thats why I tried the second one and It worked with it.
