we’re about to use Checkmk for checking internal systems, but I am struggling on getting a service check for Docker working.
What I want to achieve is, that the service check for “Docker containers” will switch to WARN,
if the amount of running containers is 4 or below.
And it should go to CRIT if the running containers are dropping to 3 or below.
Should be easy, I thought. Well, doesn’t seems so.
Here’s what I did to achieve my goal:
Install the Checkmk agent on my host
Place the mk_docker.py plugin in the correct folder (/usr/lib/check_mk_agent/plugins)
Change the permissions, added the rights to execute the file
Placed the docker.cfg in /etc/check_mk/
Added the host in Checkmk and waited for all services to appear

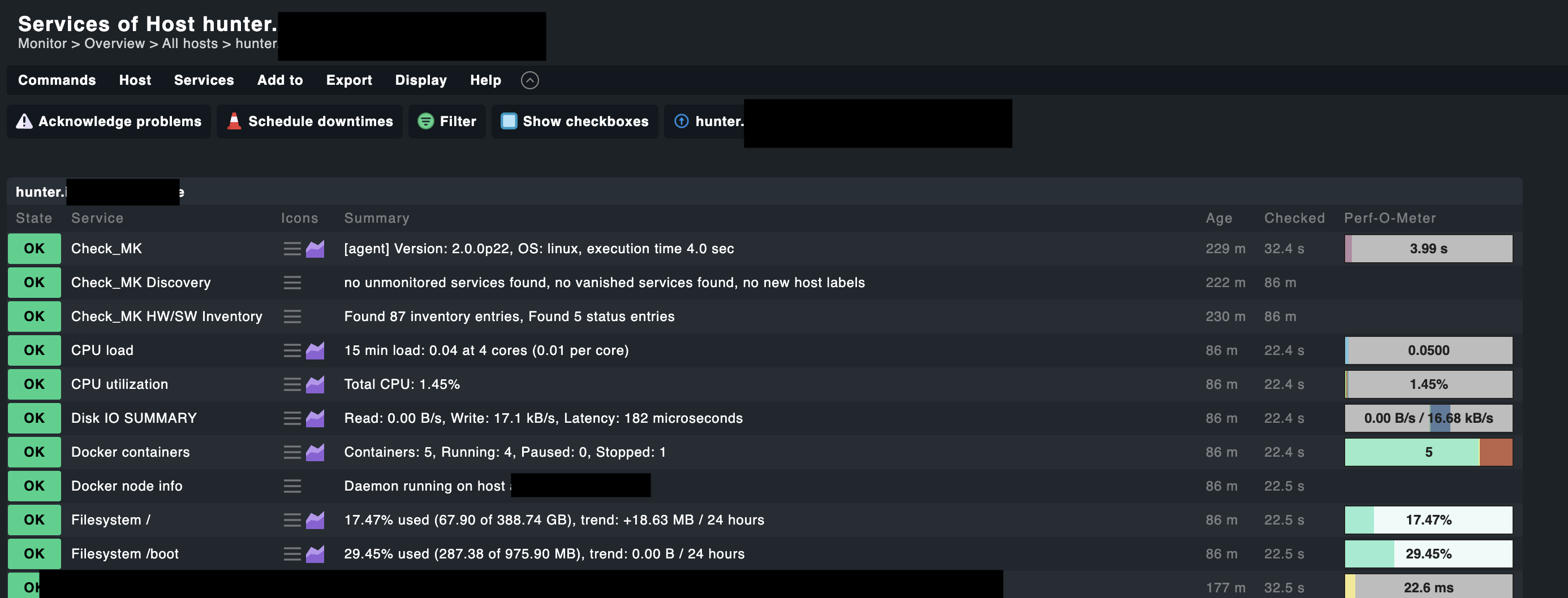

All services appeared, the Docker container status could be read: Containers: 5, Running: 4, Paused: 0, Stopped: 1
This is what I did next:

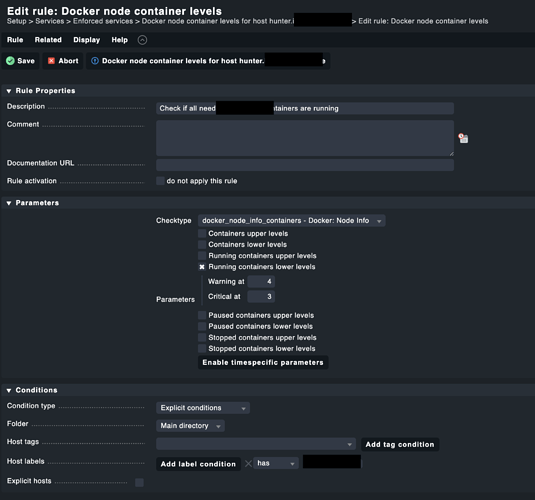

Created a new Enforced Services rule for Docker node container levels
Set the Running containers lower levels to Warning at 4, Critical at 3
Adjusted the conditions to my needs
Saved and activated the changes

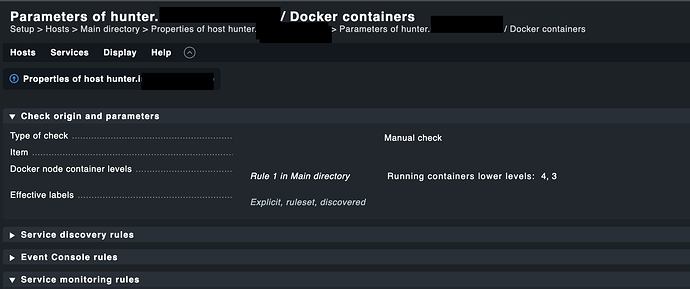

The rule is being applied for the host, I checked that. But the status does not change.
There is currently one container down. So it should switch to WARN.
Or did I miss anything?
I’m on Checkmk Raw 2.0.0p22. Installed on a Ubuntu 20.04.
with these settings it should go warning if there are less then 4 running conainers and critical if there are less than 3 running containers.
Just play with the numbers und look at the result. Or stop another container.
The way you set it up is correct.
I was thinking about this, too.
I was already playing around with the numbers, lowering them in steps down to 2 (WARN) and 1 (CRIT).
No changes.
I also switched the conditions around and used “Stopped containers upper level” with WARN at 1 and CRIT at 2. This at least triggered a CRIT.
But even at 1 stopped container, the status changed to CRIT. Omitting WARN completely.
I’ve played with the numbers here as well, without any good result:

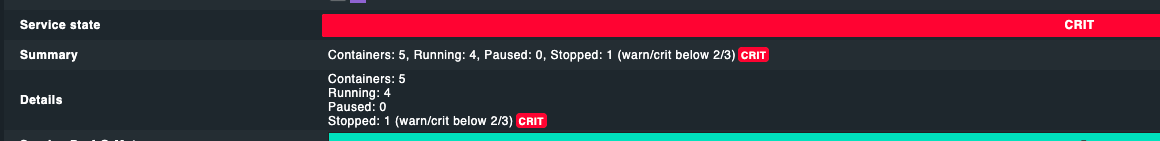

The service details of my last screenshot brought me on the right path. It says “warn/crit below 1/2”.
I’ve changed everything to “Stopped containers upper levels: 1, 2” and its working correctly now.
It seams that the wording here is wrong, maybe a bug?
If I store the values in the upper levels, then they behave as I would have expected from the lower levels. Say if less than x containers are running then a warning is generated.
In my tests, the two points lower levels and upper levels were swapped.
