IBM FLASH SYSTEM Monitoring

General
1

Hello All,

I’m using Check_MK Raw 2.1 0p9 and I need to monitor IBM Flash System devices. I’ve configured them via SNMP, but Check_MK isn’t detecting them and is throwing a timeout error. The storage team assures me that I’ve already configured the SNMPv3 community on the devices.

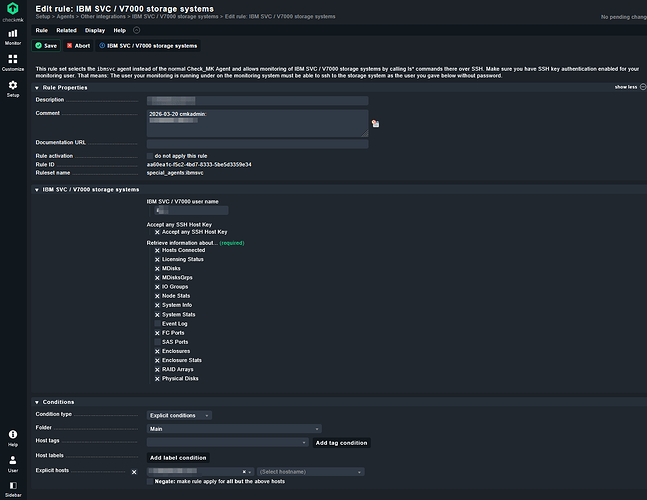

I’ve configured a rule called IBM SVC/V7000 storage systems, but it’s not working.
The devices are: IBM Flashsystem 7200

I ran the following command: ssh-keygen -t rsa -b 4096 -f ~/.ssh/id_ibmflash -N "" to create a key on the Check_MK server with the OMD user, but the rule I mentioned doesn’t ask for the key, only a user.

Is there any special configuration for these types of devices?

imagen
imagen1347×1040 44.1 KB

SMPv3 error:
SNMP Error on 0.0.0.0: snmpbulkwalk: Timeout (Exit-Code: 1)

Thanks in advance.

Regards,

Vix

2

Please don’t use any specific name for this key. The agent accepts any default key name.
If you have already a “id_rsa” file for instance inside your site, then use this key on the storage system for authentication of the CMK user.

3

Just trying to understand why you are using SSH if the guys tells you to use SNMP?
