Monitoring CPU utilization

General
1

HI all,

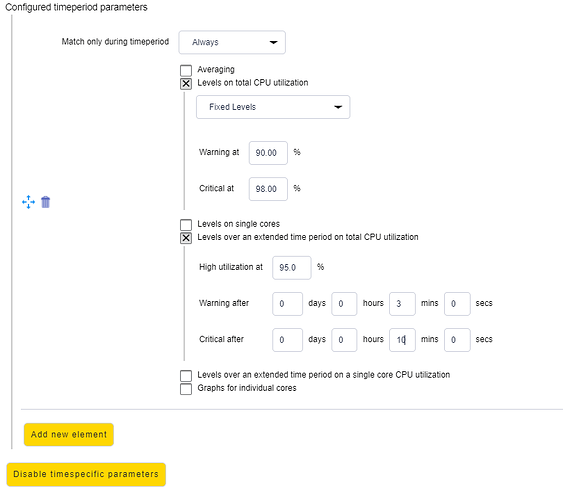

my question is related to cpu load monitoring. How do i set the warning alarm to send only when the load is longer than 3 minutes and the critical 10 minutes?

cpu
cpu810Ă—719 21.1 KB

I did this setup but notification still arrives as soon as load reaches warning and critical values.

2

Hi do you ajust also the rule:

Notified events for services

or does an other rule matches the Host or Service ?

also a option is the rule

Delay service notifications

Greets Bernd

3

Thanks for answer.

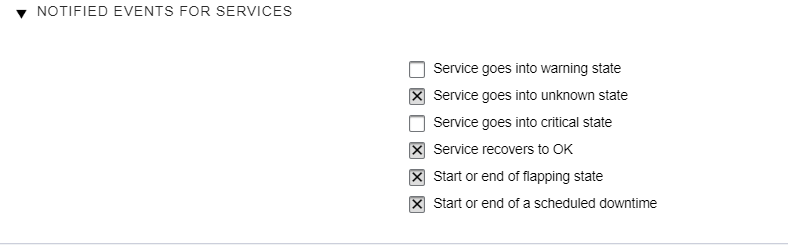

I set up rule Notified events for services. is it well adjusted?

1
1788Ă—245 4.89 KB

after this setup, all the same happens.

4

which version of CMK do you use ???

5

Check_MK Raw 1.5.0 p18

6

I try it later at home in the VM …

7

Thank you very much.

8

till now 1.5.0p24 there was a lot of changes:

https://checkmk.de/check_mk-werks.php?edition_id=raw&branch=1.5.0&version=1.5.0p25&werk_search=

perhaps it`s also a good idea to update the site

9

Hi,
remove the option “Levels on total CPU utilization’”.

Karl

1 Like
10

if I remove this option, the tool sets its default warning and critical values to 101%.

11

Hi,
as @BH2005 mentioned you can use the rule “Delay service notifications”.

Karl

12

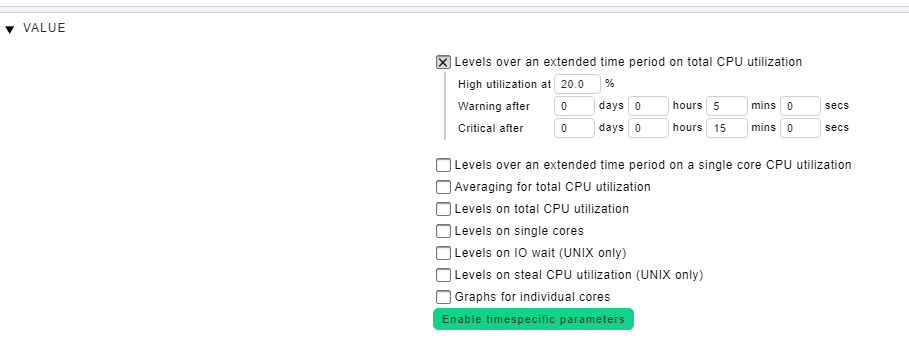

I checked this rule in one of my systems and it is working without problem.

image909Ă—342 8.78 KB

After 5 minutes and more then 20% cpu usage i get an warning and also after 15 minutes the critical.
No other values are defined. In your system the 101% comes from another rule and is merged for this host. The 101% rules needs an exclude for hosts where you want to get the usage over time.

13

I can confirme @andreas-doehler

14

Thanks all for answers.

I removed option “Levels on total CPU utilization”. I set the CPU load high value to 95% and the tool sends a warning alert to 95% and higher if that value is held for 3 minutes, and if held for 10 minutes it sends a critical alert. It’s just like you said.
