2.4.0
Debian 12
I am trying to update this plugin to be used with the plugin API 2.0 :
I successfully updated the agent_based python to this :
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
from dataclasses import dataclass
from typing import Dict
from cmk.agent_based.v2 import (
AgentSection,
CheckPlugin,
CheckResult,
DiscoveryResult,
Result,
Service,
State,
StringTable,
SimpleSNMPSection,
SNMPTree,
exists,
Metric
)
@dataclass
class OspfNeighbor:
rtrid: str
options: str
prio: str
state: str
events: int
lsretransqlen: int
permanence: str
hellosup: str
helperstatus: str
helperage: str
helperexitreason: str
def parse_ospf_neighbor(string_table: StringTable) -> Dict[str, OspfNeighbor]:
def ospf_nbr_hellosuppressed(st: str) -> str:
names = {'1': 'true',
'2': 'false'}
return names.get(st, st)
def ospf_nbr_permanence(st: str) -> str:
names = {'1': 'dynamic',
'2': 'permanent'}
return names.get(st, st)
def ospf_nbr_helperstatus(st: str) -> str:
names = {'1': 'notHelping',
'2': 'helping'}
return names.get(st, st)
def ospf_nbr_helperexitreason(st: str) -> str:
names = {'1': 'none',
'2': 'inProgress',
'3': 'completed',
'4': 'timedOut',
'5': 'topologyChanged'}
return names.get(st, st)
def ospf_nbr_options(st: str) -> str:
"""
A bit mask corresponding to the neighbor's options field.
Bit 0, if set, indicates that the system will operate on Type of Service metrics other than TOS 0.
If zero, the neighbor will ignore all metrics except the TOS 0 metric.
Bit 1, if set, indicates that the associated area accepts and operates on external information;
if zero, it is a stub area.
Bit 2, if set, indicates that the system is capable of routing IP multicast datagrams, that is that it
implements the multicast extensions to OSPF.
Bit 3, if set, indicates that the associated area is an NSSA. These areas are capable of carrying type-7
external advertisements, which are translated into type-5 external advertisements at NSSA borders.
"""
try:
st = ord(st)
except TypeError:
return 'unknown'
options = []
for key, value in [
(1, 'non TOS 0 service metrics accepted'),
(2, 'not a stub area'),
(4, 'IP multicast routing capable'),
(8, 'is NSSA'),
]:
if st & key == key:
options.append(value)
options = ', '.join(options)
if options == '':
return 'unknown'
else:
return options
parsed = {}
for ip, rtrid, options, prio, state, events, lsretransqlen, permanence, hellosup, helperstatus, helperage, \
helperexitreason in string_table:
parsed[ip] = OspfNeighbor(
rtrid=rtrid,
options=ospf_nbr_options(options),
prio=prio,
state=state,
events=int(events),
lsretransqlen=int(lsretransqlen),
permanence=ospf_nbr_permanence(str(permanence)),
hellosup=ospf_nbr_hellosuppressed(hellosup),
helperstatus=ospf_nbr_helperstatus(helperstatus),
helperage=helperage,
helperexitreason=ospf_nbr_helperexitreason(helperexitreason),
)
return parsed
def discovery_ospf_neighbor(section: Dict[str, OspfNeighbor]) -> DiscoveryResult:
for neighbor in section.keys():
yield Service(item=neighbor)
def check_ospf_neighbor(item, params, section: Dict[str, OspfNeighbor]) -> CheckResult:
def ospf_nbr_state(st: str) -> str:
names = {
'1': 'down',
'2': 'attempt',
'3': 'init',
'4': 'twoWay',
'5': 'exchangeStart',
'6': 'exchange',
'7': 'loading',
'8': 'full'
}
return names.get(st, 'unknown: %s' % st)
neighborstate = {
'1': 2,
'2': 1,
'3': 1,
'4': 0,
'5': 1,
'6': 1,
'7': 1,
'8': 0,
}
not_found_state = params['state_not_found']
for neighbour, neighbourAlias, neighbourNotFoundState in params.get('peer_list', []):
if item == neighbour:
yield Result(state=State.OK, summary=f'[{neighbourAlias}]')
not_found_state = neighbourNotFoundState
try:
neighbor = section[item]
except KeyError:
yield Result(state=State(not_found_state), notice='Item not found in SNMP data')
return
yield Result(state=State.OK, summary=f'Neighbor ID: {neighbor.rtrid}')
neighborstate.update(params.get('neighborstate', neighborstate)) # update neighborstatus with params
yield Result(state=State(neighborstate.get(neighbor.state, 3)), summary=f'Status: {ospf_nbr_state(neighbor.state)}')
yield Metric(value=neighbor.events, name='ospf_neighbor_ospf_events')
yield Metric(value=neighbor.lsretransqlen, name='ospf_neighbor_ospf_retransmission_queue_length')
for text, value in [
('options', neighbor.options),
('priority', neighbor.prio),
('permanence', neighbor.permanence),
('hello suppressed', neighbor.hellosup),
('helper status', neighbor.helperstatus),
('helper age', neighbor.helperage),
('helper exit reason', neighbor.helperexitreason),
]:
if value != '':
yield Result(state=State.OK, notice=f'Neighbor {text}: {value}')
snmp_section_ospf_neighbor = SimpleSNMPSection(
name='ospf_neighbor',
parse_function=parse_ospf_neighbor,
fetch=SNMPTree(
base=".1.3.6.1.2.1.14.10.1",
oids=[
'1',
'3',
'4',
'5',
'6',
'7',
'8',
'10',
'11',
'12',
'13',
'14',
]
),
detect=exists('.1.3.6.1.2.1.14.10.1.1.*')
)
check_plugin_ospf_neighbor = CheckPlugin(
name='ospf_neighbor',
service_name='OSPF neighbor %s',
discovery_function=discovery_ospf_neighbor,
check_function=check_ospf_neighbor,
check_default_parameters={
'state_not_found': 3,
},
check_ruleset_name='ospf_neighbor',
)
I changed the path of the plugin to ~/local/lib/python3/cmk_addons/plugins/ospf_neighbor/agent_base
The plugin is working fine when using the cli cmk :
OMD[prod]:~/local/lib/python3/cmk_addons/plugins/ospf_neighbor/agent_based$ cmk -vI --detect-plugins=ospf_neighbor routeur
Discovering services and host labels on: routeur
routeur:
+ FETCHING DATA
Get piggybacked data
+ ANALYSE DISCOVERED HOST LABELS
SUCCESS - Found no new host labels
+ ANALYSE DISCOVERED SERVICES
+ EXECUTING DISCOVERY PLUGINS (1)
5 ospf_neighbor
SUCCESS - Found 5 services
OMD[prod]:~/local/lib/python3/cmk_addons/plugins/ospf_neighbor/agent_based$ cmk -v --detect-plugins=ospf_neighbor routeur
+ FETCHING DATA
Get piggybacked data
OSPF neighbor 5.182.144.18 Neighbor ID: ****, Status: twoWay
OSPF neighbor 5.182.144.19 Neighbor ID: ****, Status: twoWay
OSPF neighbor 5.182.144.20 Neighbor ID: ****, Status: full
OSPF neighbor 5.182.144.21 Neighbor ID: ****, Status: twoWay
OSPF neighbor 5.182.144.22 Neighbor ID: ****, Status: full
[snmp] Success, [piggyback] Success (but no data found for this host), execution time 0.1 sec | execution_time=0.090 user_time=0.070 system_time=0.000 children_user_time=0.000 children_system_time=0.000 cmk_time_snmp=0.030 cmk_time_agent=0.000

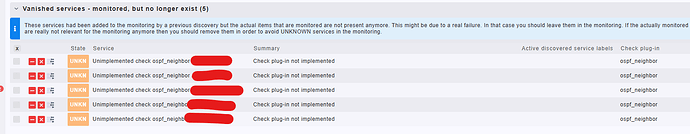

But when i go to the Run Discovery Page, the services appear at Unknown state :
I have the same problem with another plugin.
Did i miss something to the new Plugin API ?
