Sencore snmp trap event console rules

Global Community
1

Hi,

trying to configure my event console to mimic the sencore vb220 alerts

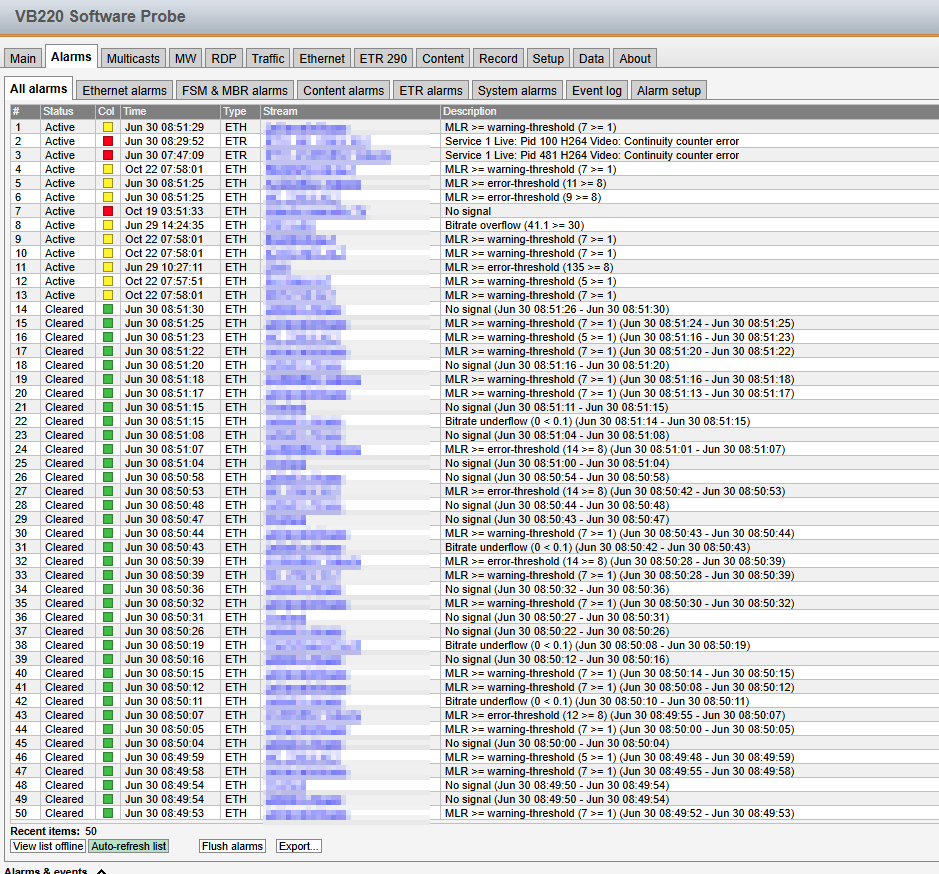

(where new alerts show up with proper status, warning or error) and when a clear snmp trap is received it places the alert with a OK status. similar to the screenshot bellow:

image939×874 103 KB

the mib are available here: (*MIB v4.7 for SNMP)

and snmp trap format: https://www.dropbox.com/scl/fi/wl127ttavfu3aagh6h6tl/trap-6.5.0.pdf?rlkey=wsvwldvywhfol47ractyon9e7&dl=1

i was wondering if someone already had a event console rule pack for what i am trying to do?

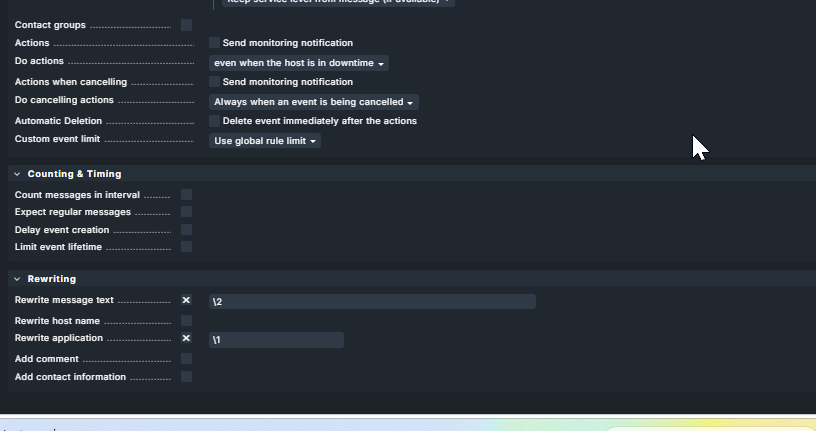

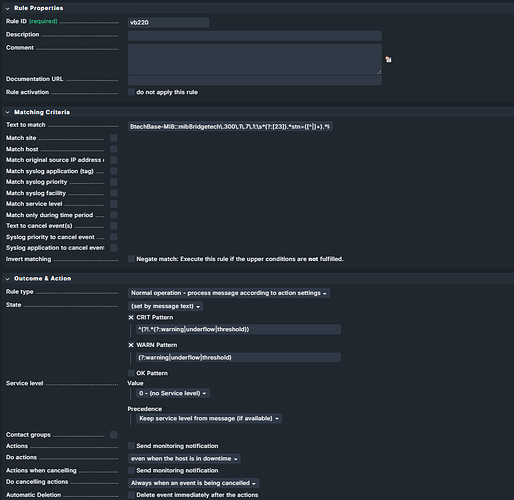

this is what my current rule look like (not working)

image820×797 54.3 KB

image816×431 34.6 KB

thanks

2

What exactly is not working? If it is only the function to clear an active event then you need to find and fill the “Text to cancel event(s)” in your rule with matching text to the clearing of the events.
The normal events are shown or not?

3

i see the events, i did find the text to cancel: BtechBase-MIB::mibBridgetech.300.1.7.1: \s*1.*stn=(\1).

but the text to cancel close the events so they are no longer active,. i would like to view active (warning / error events, but also cleared events (with green OK status) in my dashboard.*
