Server is monitored for status UP, CheckMK is monitoring for status DOWN

[tuannt76 (Tuấn Nguyễn)]

**CMK version:**2.0 p27
**OS version:**WindowsServer 2016

Currently, I have a problem when the server is monitored by the agent, but the Check_Mk server cannot ping the server, it will DOWN. RAM,CPU monitoring activities show that the operation is still normal. normally and with telegram warning…But the status always says DOWN on the monitor screen of CHECK_MK.

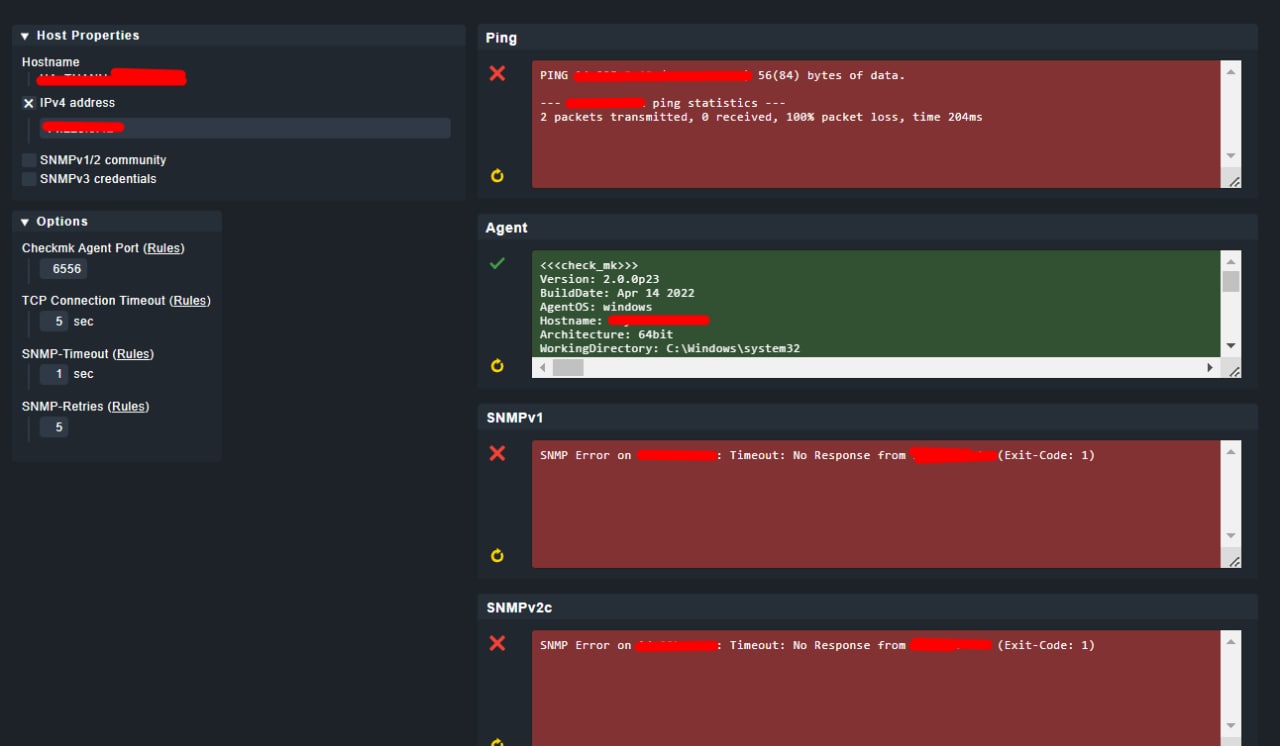

I have discovered the reason is that the server can’t ping it will always say off…When I turn off the firewall to ping, the status says UP… The firewall will always be on and won’t be able to ping so is there any way to monitor the correct status of the server.

[tuannt76 (Tuấn Nguyễn)]

[jan.filo]

Hi,
you can use agent status as status of host.
Go here:

And change it ot status of checkmk agent

Best regards,
JF

[tuannt76 (Tuấn Nguyễn)]

Will I skip any more steps?
Can you show me a more detailed way?
Thank you very much

[jan.filo]

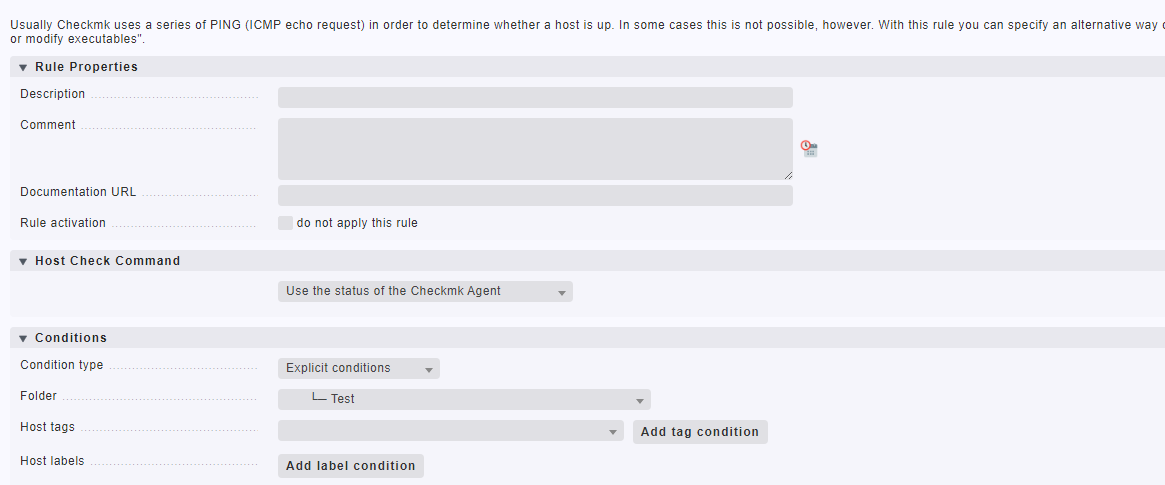

Click on create host specific rule for

[tuannt76 (Tuấn Nguyễn)]

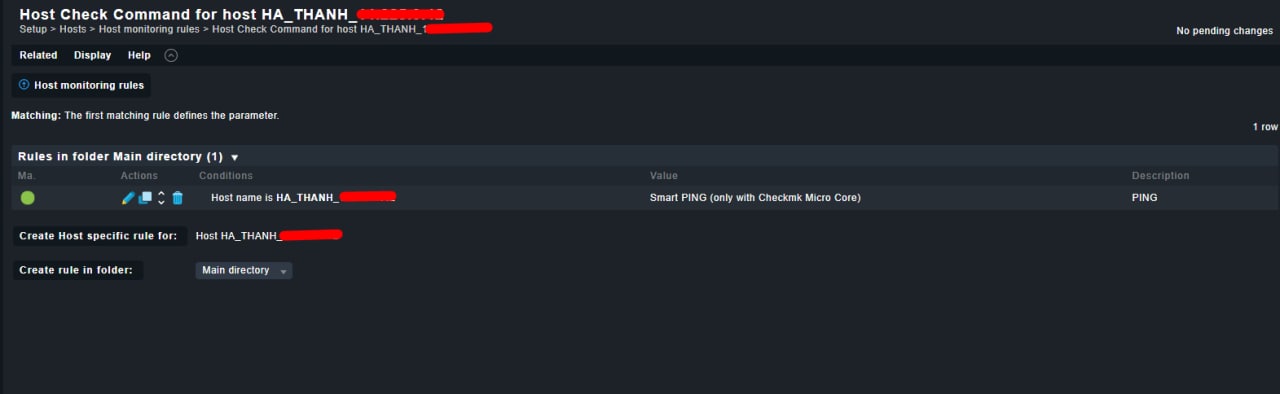

I have followed and have not seen any change yet. Is there any other step missing?

[jan.filo]

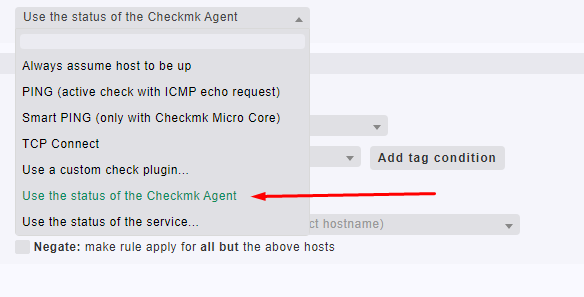

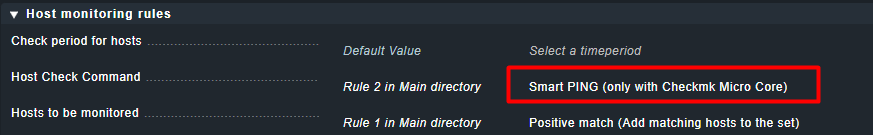

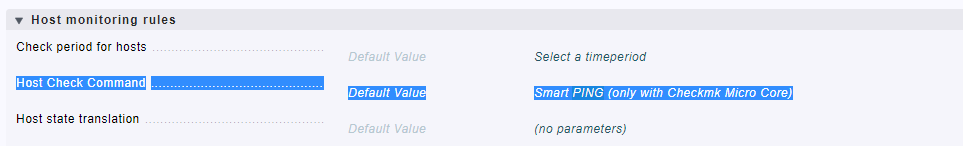

You need to change value from SMART PING to status of Agent:
like here

[tuannt76 (Tuấn Nguyễn)]

The problem has been resolved.
Thank you very much
