Hello everyone,
My latest post here helped me to link drives with smartctl & megacli status and read the correct stats from the smart plugin. That part is solved now, but a new problem appeared with the next server.
Some of my controllers are just HBA’s and not RAID controllers. These controllers are quite dumb and just send the disk data towards the motherboard/OS so I can read their S.M.A.R.T. status without any issue.
Output of smartctl --scan:
root@storage01:~# smartctl --scan
/dev/sda -d scsi # /dev/sda, SCSI device
/dev/sdb -d scsi # /dev/sdb, SCSI device
/dev/sdc -d scsi # /dev/sdc, SCSI device
/dev/sdd -d scsi # /dev/sdd, SCSI device
/dev/sde -d scsi # /dev/sde, SCSI device
/dev/sdf -d scsi # /dev/sdf, SCSI device
/dev/sdg -d scsi # /dev/sdg, SCSI device
/dev/sdh -d scsi # /dev/sdh, SCSI device
/dev/sdi -d scsi # /dev/sdi, SCSI device
/dev/sdj -d scsi # /dev/sdj, SCSI device
/dev/sdk -d scsi # /dev/sdk, SCSI device
/dev/sdl -d scsi # /dev/sdl, SCSI device
/dev/sdm -d scsi # /dev/sdm, SCSI device
/dev/sdn -d scsi # /dev/sdn, SCSI device
/dev/sdo -d scsi # /dev/sdo, SCSI device
/dev/sdp -d scsi # /dev/sdp, SCSI device
/dev/sdq -d scsi # /dev/sdq, SCSI device
/dev/sdr -d scsi # /dev/sdr, SCSI device
/dev/sds -d scsi # /dev/sds, SCSI device
/dev/sdt -d scsi # /dev/sdt, SCSI device
/dev/sdu -d scsi # /dev/sdu, SCSI device
/dev/sdv -d scsi # /dev/sdv, SCSI device
/dev/sdw -d scsi # /dev/sdw, SCSI device
/dev/sdx -d scsi # /dev/sdx, SCSI device
/dev/sdy -d scsi # /dev/sdy, SCSI device
/dev/sdz -d scsi # /dev/sdz, SCSI device
/dev/sdaa -d scsi # /dev/sdaa, SCSI device
/dev/sdab -d scsi # /dev/sdab, SCSI device
/dev/sdac -d scsi # /dev/sdac, SCSI device
/dev/sdad -d scsi # /dev/sdad, SCSI device
/dev/sdae -d scsi # /dev/sdae, SCSI device
/dev/sdaf -d scsi # /dev/sdaf, SCSI device
/dev/sdag -d scsi # /dev/sdag, SCSI device
/dev/sdah -d scsi # /dev/sdah, SCSI device
/dev/sdai -d scsi # /dev/sdai, SCSI device
/dev/sdaj -d scsi # /dev/sdaj, SCSI device
/dev/sdak -d scsi # /dev/sdak, SCSI device
/dev/sdal -d scsi # /dev/sdal, SCSI device
All disks are visible and SMART support is: Available - device has SMART capability. See below.
root@storage01:~# smartctl -a /dev/sdx
smartctl 7.2 2020-12-30 r5155 [x86_64-linux-5.15.0-40-generic] (local build)
Copyright (C) 2002-20, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Device Model: ST18000NM000J-2TV103
Serial Number: WR500KTT
LU WWN Device Id: 5 000c50 0e0287323
Firmware Version: SN02
User Capacity: 18,000,207,937,536 bytes [18.0 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 7200 rpm
Form Factor: 3.5 inches
Device is: Not in smartctl database [for details use: -P showall]
ATA Version is: ACS-4 (minor revision not indicated)
SATA Version is: SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Thu Jul 7 09:37:13 2022 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x82) Offline data collection activity
was completed without error.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 567) seconds.
Offline data collection
capabilities: (0x7b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 1) minutes.
Extended self-test routine
recommended polling time: (1562) minutes.
Conveyance self-test routine
recommended polling time: ( 2) minutes.
SCT capabilities: (0x70bd) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE
1 Raw_Read_Error_Rate 0x000f 079 064 044 Pre-fail Always - 74971906
3 Spin_Up_Time 0x0003 095 095 000 Pre-fail Always - 0
4 Start_Stop_Count 0x0032 100 100 020 Old_age Always - 4
5 Reallocated_Sector_Ct 0x0033 100 100 010 Pre-fail Always - 0
7 Seek_Error_Rate 0x000f 083 060 045 Pre-fail Always - 183271102
9 Power_On_Hours 0x0032 098 098 000 Old_age Always - 2540
10 Spin_Retry_Count 0x0013 100 100 097 Pre-fail Always - 0
12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 4
18 Unknown_Attribute 0x000b 100 100 050 Pre-fail Always - 0
187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0
188 Command_Timeout 0x0032 100 100 000 Old_age Always - 0
190 Airflow_Temperature_Cel 0x0022 067 058 000 Old_age Always - 33 (Min/Max 27/37)
192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 4
193 Load_Cycle_Count 0x0032 099 099 000 Old_age Always - 2283
194 Temperature_Celsius 0x0022 033 042 000 Old_age Always - 33 (0 19 0 0 0)
197 Current_Pending_Sector 0x0012 100 100 000 Old_age Always - 0
198 Offline_Uncorrectable 0x0010 100 100 000 Old_age Offline - 0
199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 0
200 Multi_Zone_Error_Rate 0x0023 100 100 001 Pre-fail Always - 0
240 Head_Flying_Hours 0x0000 100 253 000 Old_age Offline - 2314 (98 210 0)
241 Total_LBAs_Written 0x0000 100 253 000 Old_age Offline - 72478210092
242 Total_LBAs_Read 0x0000 100 253 000 Old_age Offline - 11330974117085
SMART Error Log Version: 1
No Errors Logged
SMART Self-test log structure revision number 1
No self-tests have been logged. [To run self-tests, use: smartctl -t]
SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.
To me everything looks great so far. Let’s now try and run the smart plugin that needs to send the actual smart data towards CheckMK.
root@storage01:/usr/lib/check_mk_agent/plugins# ./smart
tw_cli not found
<<<smart>>>
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 5 Reallocated_Sector_Ct 0x0033 100 100 010 Pre-fail Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 9 Power_On_Hours 0x0032 099 099 000 Old_age Always - 74
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 12 Power_Cycle_Count 0x0032 099 099 000 Old_age Always - 4
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 177 Wear_Leveling_Count 0x0013 100 100 000 Pre-fail Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 179 Used_Rsvd_Blk_Cnt_Tot 0x0013 100 100 010 Pre-fail Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 181 Program_Fail_Cnt_Total 0x0032 100 100 010 Old_age Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 182 Erase_Fail_Count_Total 0x0032 100 100 010 Old_age Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 183 Runtime_Bad_Block 0x0013 100 100 010 Pre-fail Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 195 Hardware_ECC_Recovered 0x001a 200 200 000 Old_age Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 199 UDMA_CRC_Error_Count 0x003e 100 100 000 Old_age Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 235 Unknown_Attribute 0x0012 099 099 000 Old_age Always - 2
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 241 Total_LBAs_Written 0x0032 100 100 000 Old_age Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426555X ATA Samsung_SSD_870 252 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 5 Reallocated_Sector_Ct 0x0033 100 100 010 Pre-fail Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 9 Power_On_Hours 0x0032 099 099 000 Old_age Always - 74
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 12 Power_Cycle_Count 0x0032 099 099 000 Old_age Always - 4
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 177 Wear_Leveling_Count 0x0013 100 100 000 Pre-fail Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 179 Used_Rsvd_Blk_Cnt_Tot 0x0013 100 100 010 Pre-fail Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 181 Program_Fail_Cnt_Total 0x0032 100 100 010 Old_age Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 182 Erase_Fail_Count_Total 0x0032 100 100 010 Old_age Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 183 Runtime_Bad_Block 0x0013 100 100 010 Pre-fail Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 195 Hardware_ECC_Recovered 0x001a 200 200 000 Old_age Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 199 UDMA_CRC_Error_Count 0x003e 100 100 000 Old_age Always - 0
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 235 Unknown_Attribute 0x0012 099 099 000 Old_age Always - 2
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 241 Total_LBAs_Written 0x0032 099 099 000 Old_age Always - 7805649
0ATA_Samsung_SSD_870_S6PENX0T426563A ATA Samsung_SSD_870 252 Unknown_Attribute 0x0032 100 100 000 Old_age Always - 0
SEAGATE_ST18000NM004J_ZR53RK6W0000C203EHHL SEAGATE ST18000NM004J 194 Temperature_Celsius 0x0000 000 000 000 Old_age Always - 35 (0 0 0 0)
As you can see above the only three devices found by the smart plugin is my two boot SSD’s who are directly connected to my motherboard and one random disk through the HBA, disk /dev/sdp.

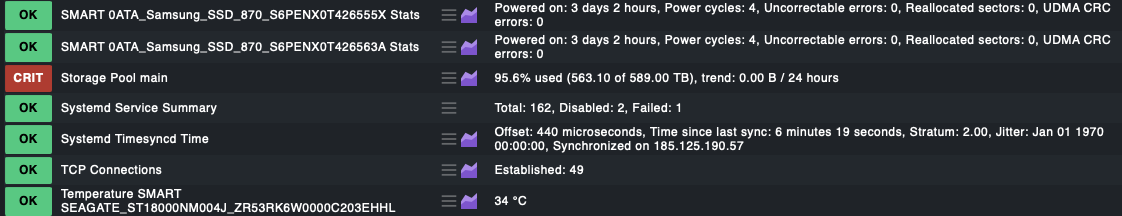

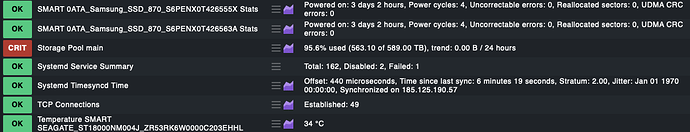

This results in only one temperature measurement in CheckMK. Can anyone support me on next steps? Looking to add the missing and smart capable 35 disks to CheckMK. I have already tried the following:
Installing smartctl
Installing ipmitool (maybe this showed disk temps too, but no)
Installing megaraid drivers
Installed a new LSI HBA (same results)
Please let me know if there is more data needed. Thanks for your help in advance!
