Sslcertificates upgrade 9.0.2

Checkmk Dev&Exchange
1

Hi
Running 2.3.0p31 and is upgrading the extension sslcertificates from 8.9.1 to 9.0.2 (to support Checkmk 2.4).
Buts, it stopped working, so all the sslcertificates monitoring when into error with crash report.
Did just rollback and did not do any troubleshooting.

Do any one have upgraded to the 9.0.2 version with success?
And did you have to done anything, beside activate the extension and redeploy with new baked agent?

check_mk_extensions/sslcertificates at cmk2.3 · HeinleinSupport/check_mk_extensions · GitHub

SSL-Certificates - Checkmk Exchange

2

What stopped working?

Please post the crash report.

3

The following files located in the local hierarchy of your site are involved in this exception:

  • /omd/sites/cac/local/lib/python3/cmk_addons/plugins/sslcertificates/agent_based/sslcertificates.py

Maybe these files are not compatible with your current Checkmk version. Please verify and only report this crash when you think this should be working.

Crash Report
Exception
TypeError (Incorrect level parameters: (14, 5))
Traceback

 File "/omd/sites/cac/lib/python3/cmk/base/checkers.py", line 734, in get_aggregated_result
    check_result = check_function(**item_kw, **params_kw, **section_kws)
  File "/omd/sites/cac/lib/python3/cmk/base/checkers.py", line 514, in __check_function
    return _aggregate_results(consume_check_results(check_function(*args, **kw)))
  File "/omd/sites/cac/lib/python3/cmk/base/checkers.py", line 572, in consume_check_results
    for subr in subresults:
  File "/omd/sites/cac/lib/python3/cmk/base/api/agent_based/register/check_plugins.py", line 95, in filtered_generator
    for element in generator(*args, **kwargs):
  File "/omd/sites/cac/local/lib/python3/cmk_addons/plugins/sslcertificates/agent_based/sslcertificates.py", line 129, in check_sslcertificates
  File "/omd/sites/cac/lib/python3.12/site-packages/cmk/agent_based/v2/_check_levels.py", line 217, in check_levels
    result_lower = _check_levels(value, levels_lower, Direction.LOWER, render_func)
  File "/omd/sites/cac/lib/python3.12/site-packages/cmk/agent_based/v2/_check_levels.py", line 141, in _check_levels
    raise TypeError(f"Incorrect level parameters: {other!r}")

Local Variables

{'levels': (14, 5),
 'levels_direction': <Direction.LOWER: 'lower'>,
 'other': (14, 5),
 'render_func': <function timespan at 0x7fa87d0b39c0>,
 'value': 20911770}

Crash Type check
Time 2025-05-15 09:57:21
Operating System Ubuntu 22.04.5 LTS
Checkmk Version 2.3.0p31
Edition cee
Core cmc
Python Version 3.12.9 (main, Apr 8 2025, 14:44:03) [GCC 13.2.0]
Python Module Paths /opt/omd/versions/2.3.0p31.cee/bin
/omd/sites/cac/local/lib/python3
/omd/sites/cac/lib/python3/cloud
/omd/sites/cac/lib/python312.zip
/omd/sites/cac/lib/python3.12
/omd/sites/cac/lib/python3.12/lib-dynload
/omd/sites/cac/lib/python3.12/site-packages
/omd/sites/cac/lib/python3

Details

Host hostname
Is cluster host No
Check type sslcertificates
Enforced service No
Inline-SNMP No
Check item 6150F994B780A2F1FB1B272D9BA4FEC80XXXXXX
Description SSL Certificate in 6150F994B780A2F1FB1B272D9BA4FEC80DXXXXXX
Parameters ("Parameters({‘age’: (14, 5), ‘warnalgo’: [‘md5WithRSAEncryption’, " “‘sha1WithRSAEncryption’]})”)
4

Please run cmk-update-config -v after upgrading.

Somehow the migration function for the check parameters is not called here and the check plugin still receives the old format. Any idea, @moritz ?

5

So, after I have installed the new extension, I will try that.
Do I then need to redeploy the local agents again?

6

No, the agent plugin has not been changed.

7

Sorry, no idea. I looked at the plugin, but it seems fine to me. Did cmk-update-config fix it? Is this reproducable?

8

I have one idea - if the CMK version is 2.3 the migration function is only done if you edit the rule or execute “cmk-update-config”.
If you do the plugin update with CMK 2.4 you will receive a message after installing the mkp that also the check parameters are migrated.

I reproduced this behavior inside my test environment some times.

2 Likes
9

I also observe exactly this behaviour.

10

Hi
I did this again:
Enable sslcertificates 9.0.2
Disabled sslcertificate 8.9.1
stop primary site
run the cmk-update-config -v
start primary site

but the cmk-update-config resulted in an error.
That 2 rules are for disabling the plugin, “Do not deploy the SSL certificates plugin”.
So SSL Certificate still crash with same report after the cmk-update-config -v

ERROR: Failed to transform rule: (Ruleset: agent_config:sslcertificates, Folder: server/vdi, Rule: 0, Value: None: None
ERROR: Failed to transform rule: (Ruleset: agent_config:sslcertificates, Folder: server/rds, Rule: 0, Value: None: None
 + "Rulesets" failed
Traceback (most recent call last):
  File "/omd/sites/cac/lib/python3/cmk/update_config/main.py", line 270, in update_config
    action(logger, update_state.setdefault(action.name))
  File "/omd/sites/cac/lib/python3/cmk/update_config/plugins/actions/rulesets.py", line 84, in __call__
    _validate_rule_values(logger, all_rulesets)
  File "/omd/sites/cac/lib/python3/cmk/update_config/plugins/actions/rulesets.py", line 370, in _validate_rule_values
    ruleset.rulespec.valuespec.validate_value(
  File "/omd/sites/cac/lib/python3/cmk/gui/valuespec.py", line 362, in validate_value
    self._validate_value(value, varprefix)
  File "/omd/sites/cac/lib/python3/cmk/gui/valuespec.py", line 6743, in _validate_value
    self._valuespec.validate_value(self.to_valuespec(value), varprefix)
                                   ^^^^^^^^^^^^^^^^^^^^^^^^
  File "/omd/sites/cac/lib/python3/cmk/gui/utils/rule_specs/legacy_converter.py", line 373, in _remove_agent_config_match_type_key
    raise TypeError(value)
TypeError: None
11

Checkmk 2.3 needs a patch for the legacy converter:

12

So if I understand the post correct
Update to 2.3.0p33 and the det steps for sslcertificate will work?

13

The needed patch should be in 2.3.0p33.

1 Like
14

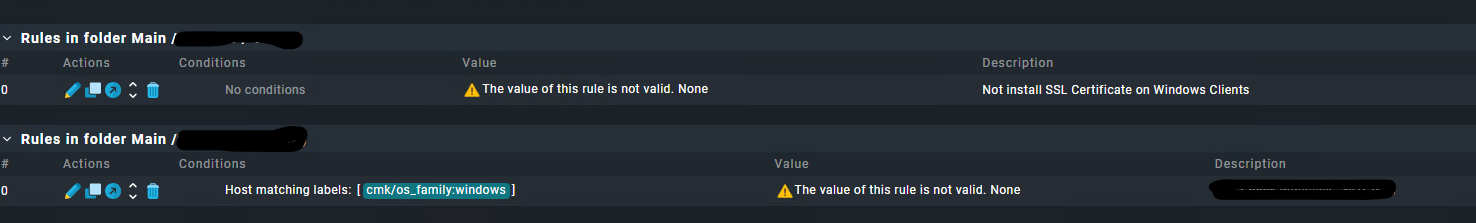

Hi
The sslcertificate do no longer accept my old rule that stops the plugin for deploying to some client

image1476×223 55.1 KB

That where the problem when upgrading.

So now I dont know how to block the plugin from deploying

15

I have just upgraded to sslcertificates 9.0.3, but still missing that option

16

@r.sander I fixed the do not deploy by creating a regex exclude of host.

But you might note in the 9.0 release note, that you have removed the none option.
Or even better add it again :slight_smile:

Because the rule cannot be transformed and need to be removed before upgrade.
ERROR: Failed to transform rule: (Ruleset: agent_config:sslcertificates, Folder: server/vdi, Rule: 0, Value: None: None

17

Version 9.0.4 of the MKP adds a migrate function for the bakery ruleset.

After updating to this MKP you should run cmk-update-config -v on 2.3.0p33 or later.

1 Like
18

Thanks for this, it works
