Switch interface monitoring rules based on interface's description?

[sotm (Stan)]

CMK version:
OMD - Open Monitoring Distribution Version 2.3.0p11.cre

OS version:
Rocky Linux 9.4

Error message:
Not matching

Hi,
I am trying to create “Network interfaces and switch ports” state/speed ignore rule to match on Interface/Port description or Service label I created via discovery rule, neither seem to match and handle ignore.

I discover and present Port Description via global Network interface and switch port discovery rule:

then I created service label:

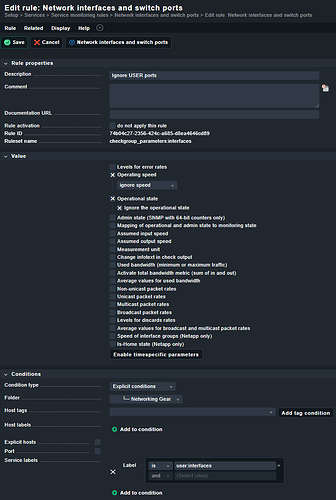

then I created a “Network interfaces and switch ports” rule to ignore state and speed based on service label created above:

Activated changes, but my “CH_USER” interfaces are still in down state as critical (generating alerts)

I have 300+ interfaces on few access switches across multiple sites labeled with _USER in the description. What am I doing wrong or I am expecting too much here from raw edition?

Or thinking in checkmk terms, how can I base my rules on contents of “Summary” for any given service?

any help is greatly appreciated, I would like to avoid disabling services manually.

thanks!
-Stan

[uwoehler (Udo Wöhler)]

In the rule where you want to set the service label you match “interface description” to “CH_USER”. But interface description is something like “Ethernet1/0/1”. I think you need to match “interface alias”. After modifying this you should make a “remove all and find new” on the switch and “activate changes”, so you can be sure the discovery has run.
After that have a look at a single interface service and check if the service label is set correctly. If this is the case your speed and operational state rule should do its work.

[sotm (Stan)]

that did it! using alias worked
