Total Traffic Monitoring for Multiple Hosts/Interfaces

General
1

Hi All,

I have created a custom graph where I added several interfaces from different hosts to track their IN/OUT bandwidth individually. I would like to know if it’s possible to create an aggregated graph that shows the sum of all these interfaces as a single, so I can have a dedicated custom graph displaying the total bandwidth. Is this possible?

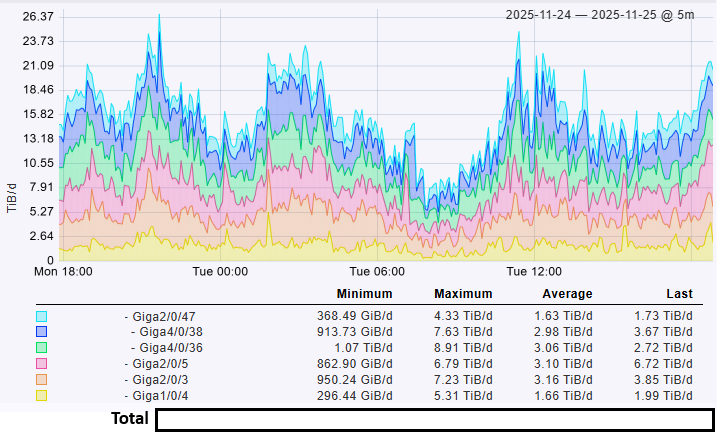

Here is a sample of the created graph:

image717×434 135 KB

I would like to create a total that sums the IN/OUT bandwidth of all the interfaces mentioned above and display it as a single aggregated value.

Note: I only have GUI access and cannot use the Linux/server side.

Thanks a lot in Advanced.

2

You can select all the metrics in the custom graph and then let it calculate the sum.

3

Hi Robert,

Thanks a lot for your reply. I can now select all the metrics and calculate the sum, but when I do that, all the individual metrics disappear from the graph and only the summed metric remains.

But that works as well, I can build another custom graph based on the total.

Is there a way to keep both the summed value and the individual metrics together in the same graph?

Many Thanks.

4

You can copy the summed graph and disassemble the sum again. With that you have all the individual metrics and a total.

5

Thank you so much, Robert!

Wishing you a wonderful rest of the day.
