Hi Hartmut,
short answer: These error messages appeared both during the upgrade from 2.3 to 2.4 (where I’ve ignored them) and again from 2.4.0 to 2.4.0p1.
After upgrading to p1, I did my “experiments”. So yes, after going to p1, I’ve tried
- fixing the problem by changing each rule value separately and saving, to no avail
- replicating the error by basically cloning the problematic rule manually with identical values which just resulted in a working rule
Long answer:
During the update to 2.4, I’ve had a lot of issues - an incompatible notification mkp for telegram, three or four incompatible other mkps, warnings about the old check_http rules and some more. The right thing to do would’ve been to roll back and try to fix everything before the upgrade so that it runs through flawlessly, but because I’ve had lots of warnings and python errors during most of my incremental 2.3 upgrades, asking me to either a) abort or continue, or b) abort or disable the mkp, and I’ve always just continued, disabling mkps where necessary, and then re-enabling them afterwards (they kept working), my mindset was to try and preserve as much as possible, try to get 2.4 to a working state and then fixing what’s necessary.
I noticed the SFTP rule messages during both 2.3->2.4 and 2.4.0->2.4.0p1 upgrades but forgot to check for the rules in the GUI after the upgrade initially. The p1 upgrade reminded me that there was something I should look at, which is when I arrived at the conclusion from my above message.
This, I think, is hence a bug in transitioning check_sftp rules from 2.3 to 2.4 somehow.

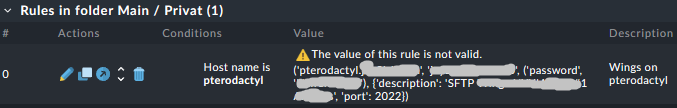

I have a snapshot from before fixing the SFTP rule and upgrading to p1 (so, 2.4.0.cre). I just rolled back to test some more, and when going to the “check SFTP service” rules page, it tells me “the value of this rules is not valid”:
If I then click the clone icon, I get this:
I then went ahead and copy pasted all values from the yellow warning message into the fields again and saved, which worked.
I’ve then looked at the generated .mk file, the rules looked like this:
active_checks['sftp'] = [
{'condition': {'host_folder': '/%s/' % FOLDER_PATH,
'host_name': ['pterodactyl']},
'id': '9e856574-1783-4633-8578-76f1045baf99',
'options': {'description': 'THIS IS THE BROKEN RULE', 'disabled': False},
'value': ('pterodactyl.hostname.redacted',
'username.redacted',
('password', 'password.redacted'),
{'description': 'SFTP Wings redacted', 'port': 2022})},
{'condition': {'host_folder': '/%s/' % FOLDER_PATH,
'host_name': ['pterodactyl']},
'id': 'e13b05db-efb8-48b7-91c0-ffddbe653e7c',
'options': {'description': 'THIS IS THE WORKING MANUAL CLONE RULE', 'disabled': False},
'value': {'description': 'SFTP Wings redacted',
'host': 'pterodactyl.hostname.redacted',
'port': 2022,
'secret': ('cmk_postprocessed',
'explicit_password',
('uuidda4f144a-63a4-40b0-8588-acb6dd150248',
'password.redacted')),
'user': 'username.redacted'}},
] + active_checks['sftp']

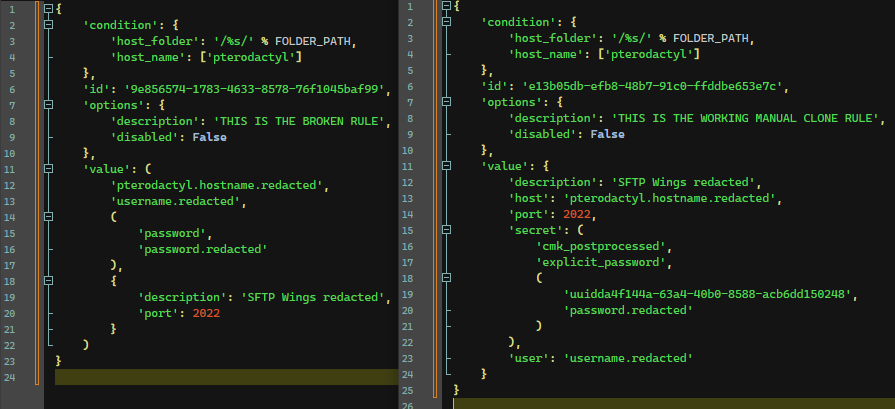

If I then put them next to each other and manually pretty-print them, adding line breaks and tabs, it becomes clear that the value format is different with a newly created rule (old and broken on the left, new and working on the right):
Again, this debugging with these screenshots was just done on 2.4.0.cre.
It seems to me that in 2.4, a slightly different, more reasonable data format was used than in 2.3, but there’s no (or bugged) backwards compatibility/automatic transitioning for old existing rules.
Hope this helps!
EDIT: Here’s the output of the updater going 2.4.0->2.4.0p1 when having both the broken and the new rule in place:
2025-05-19 17:37:26 - Updating site 'monitoring' from version 2.4.0.cre to 2.4.0p1.cre...
Creating temporary filesystem /omd/sites/monitoring/tmp...OK
Executing 'cmk-update-config --conflict ask --dry-run'
-| ATTENTION
-| Some steps may take a long time depending on your installation.
-| Please be patient.
-|
-| Cleanup precompiled host and folder files
-| Verifying Checkmk configuration...
-| 01/08 Legacy check plug-ins...
-| 02/08 Rulesets...
-| WARNING: Invalid rule configuration detected
-| Ruleset: active_checks:sftp
-| Title: Check SFTP Service
-| Folder: privat
-| Rule nr: 1
-| Exception: ('pterodactyl.hostname.redacted', 'username.redacted', ('password', 'password.redacted'), {'description': 'SFTP Wings redacted', 'port': 2022})
-|
-| You can abort the update process (A) or continue (c) the update. Abort update? [A/c]
c
-| 03/08 UI extensions...
-| 04/08 Migrate Azure Databases...
-| 05/08 Agent based plugins...
-| 06/08 Autochecks...
-| 07/08 Invalid hosts labels...
-| 08/08 Deprecated .mk configuration of plugins...
-| Done (success)
-|
Completed verifying site configuration. Your site now has version 2.4.0p1.cre.
Executing update-pre-hooks script "01_mkp-disable-outdated"...
-| [proxmox_provisioned 1.3.1]: enabled
-| [sas2ircu 1.1]: enabled
-| [check_calculate 0.2.2]: disabled
OK
Executing update-pre-hooks script "02_cmk-update-config"...
-| ATTENTION
-| Some steps may take a long time depending on your installation.
-| Please be patient.
-|
-| Cleanup precompiled host and folder files
-| Verifying Checkmk configuration...
-| 01/08 Legacy check plug-ins...
-| 02/08 Rulesets...
-| WARNING: Invalid rule configuration detected
-| Ruleset: active_checks:sftp
-| Title: Check SFTP Service
-| Folder: privat
-| Rule nr: 1
-| Exception: ('pterodactyl.hostname.redacted', 'username.redacted', ('password', 'password.redacted'), {'description': 'SFTP Wings redacted', 'port': 2022})
-|
-| 03/08 UI extensions...
-| 04/08 Migrate Azure Databases...
-| 05/08 Agent based plugins...
-| 06/08 Autochecks...
-| 07/08 Invalid hosts labels...
-| 08/08 Deprecated .mk configuration of plugins...
-| Done (success)
-|
-| Updating Checkmk configuration...
-| 01/30 User attributes...
-| 02/30 Create precompiled host and folder files...
-| 03/30 Update dashboards...
-| 04/30 Global settings...
-| 05/30 Convert counter files...
-| 06/30 Migrate Azure Databases...
-| 07/30 Message broker port of site connections...
-| 08/30 Rulesets...
-| ERROR: Failed to transform rule: (Ruleset: active_checks:sftp, Folder: privat, Rule: 0, Value: ('pterodactyl.hostname.redacted', 'username.redacted', ('password', 'password.redacted'), {'description': 'SFTP Wings redacted', 'port': 2022}): ('pterodactyl.hostname.redacted', 'username.redacted', ('password', 'password.redacted'), {'description': 'SFTP Wings redacted', 'port': 2022})
-| WARNING: Exception in ruleset implementation detected (Ruleset: active_checks:sftp, Title: Check SFTP Service, Folder: privat,
-| Rule nr: 0, Exception: ('pterodactyl.hostname.redacted', 'username.redacted', ('password', 'password.redacted'), {'description': 'SFTP Wings redacted', 'port': 2022}))
-| Traceback (most recent call last):
-| File "/omd/sites/monitoring/lib/python3/cmk/update_config/plugins/actions/rulesets.py", line 36, in validate_rule_values
-| ruleset.rulespec.valuespec.validate_datatype(
-| File "/omd/sites/monitoring/lib/python3/cmk/gui/valuespec/definitions.py", line 6628, in validate_datatype
-| self._valuespec.validate_datatype(self.to_valuespec(value), varprefix)
-| ^^^^^^^^^^^^^^^^^^^^^^^^
-| File "/omd/sites/monitoring/lib/python3/cmk/plugins/collection/rulesets/sftp.py", line 38, in _migrate_from_tuple
-| raise ValueError(params)
-| ValueError: ('pterodactyl.hostname.redacted', 'username.redacted', ('password', 'password.redacted'), {'description': 'SFTP Wings redacted', 'port': 2022})
-| A crash report was generated with ID: 41f3846c-34c7-11f0-bb71-bc2411e0664e
-| Detected 1 issue(s) in loaded rulesets. This is a problem with the plug-in implementation. It needs to be addressed by the maintainers. Please review the crashes in the crash reports page to help fix the issues. Until all issues are resolved, we recommend disabling the affected rules.
-| 09/30 Notification host tag conditions...
-| 10/30 Autochecks...
-| 11/30 Migrate CLI parent scan config...
-| 12/30 Process discovery for self monitoring...
-| 13/30 Update background jobs...
-| 14/30 Remove leftovers of user profile cleanup background job...
-| 15/30 Migrate notifications...
-| Wrote notification configuration backup to
-| /omd/sites/monitoring/notifications_backup.mk.
-|
-| Please check if the notification pages in the GUI work as expected.
-| In case of problems you can copy the backup files back to
-| /omd/sites/monitoring/etc/check_mk/conf.d/wato/notifications.mk.
-| If everything works as expected you can remove the backup.
-|
-| 16/30 Cleanup version specific caches...
-| 17/30 Host attribute topics...
-| 18/30 Terminating all existing user sessions...
-| 19/30 Update LDAP connections...
-| 20/30 Remove unreadable prediction files...
-| 21/30 Topics...
-| 22/30 Event Console: Migrate history files to sqlite...
-| 23/30 Remove invalid hosts labels...
-| 24/30 Migrate etc/diskspace.conf...
-| 25/30 Reset deprecations scheduling...
-| 26/30 Remove zipped status data tree files...
-| 27/30 Ensure message broker certs are ready...
-| Certificate found.
-| 28/30 Check for deprecated check_http plug-in rules...
-| WARNING: You have 4 rules using the ruleset Check HTTP service deprecated.
-| This ruleset will be deprecated along with the old HTTP monitoring plug-in in the next version(s) of Checkmk.
-| Rules must therefore be migrated to the new ruleset which is used by the httpv2 plugin.
-| Rule migration can be done manually or by calling cmk-migrate-http as site user. See cmk-migrate-http --help for more information on this helper script.
-| For additional information on the deprecation of the HTTP plug-in see the werk #17665.
-| 29/30 Validating configuration files...
-| 30/30 Update core config...
-| Generating configuration for core (type nagios)...
-| Precompiling host checks...OK
-| Done (success)
OK
Finished update.
