Volume not showing in monitoring, but OK in local agent

Troubleshooting
, ,
1

CMK version:2.3.0p19
OS version:Debian 12 Bookworm

Error message:None. We have a volume, in a LVM, named ‘/dev/mapper/v1-synapse–data’ and mounted in ‘/var/lib/docker/volumes/synapse_workplace_data’, which doesn’t show through inventory. The local agent shows it in the df_v2 section, though

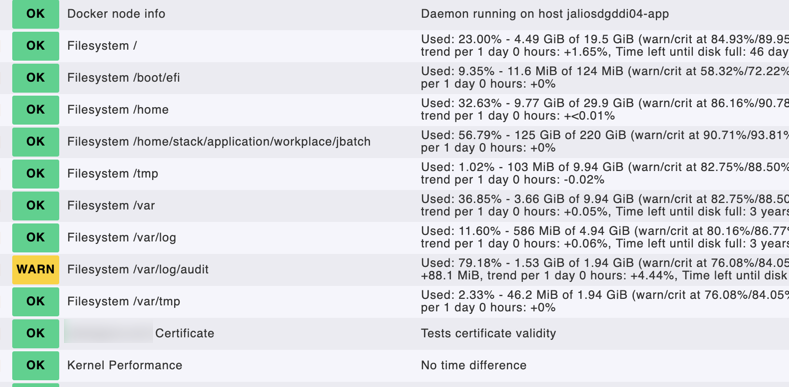

2025-02-18_17-55-19
2025-02-18_17-55-19789×387 131 KB

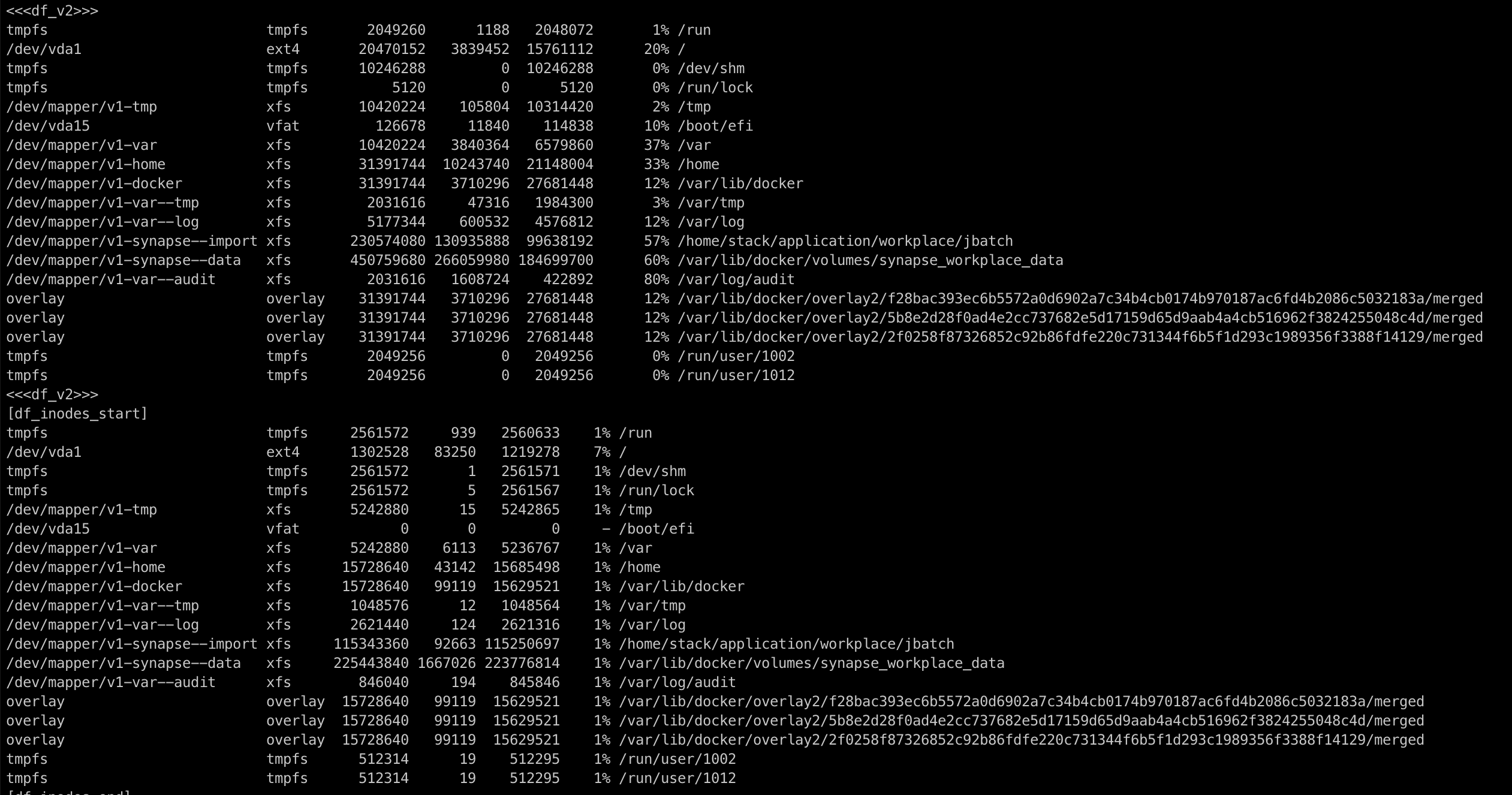

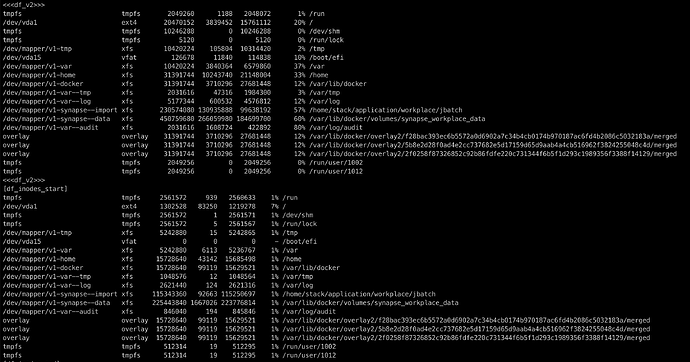

Capture d’écran 2025-02-18 à 17.56.54
Capture d’écran 2025-02-18 à 17.56.542522×1326 453 KB

Output of “cmk --debug -vvn hostname”: (If it is a problem with checks or plugins)

value store: synchronizing
Trying to acquire lock on /omd/sites/outscaledgddi/tmp/check_mk/counters/jaliosdgddi04-app.xsalto.net
Got lock on /omd/sites/outscaledgddi/tmp/check_mk/counters/jaliosdgddi04-app.xsalto.net
value store: loading from disk
Releasing lock on /omd/sites/outscaledgddi/tmp/check_mk/counters/jaliosdgddi04-app.xsalto.net
Released lock on /omd/sites/outscaledgddi/tmp/check_mk/counters/jaliosdgddi04-app.xsalto.net
Checkmk version 2.3.0p19
+ FETCHING DATA
  Source: SourceInfo(hostname='jaliosdgddi04-app.xsalto.net', ipaddress='10.66.1.134', ident='agent', fetcher_type=<FetcherType.TCP: 8>, source_type=<SourceType.HOST: 1>)
[cpu_tracking] Start [7fa3e3cfd880]
Read from cache: AgentFileCache(jaliosdgddi04-app.xsalto.net, path_template=/omd/sites/outscaledgddi/tmp/check_mk/cache/{hostname}, max_age=MaxAge(checking=0, discovery=90.0, inventory=90.0), simulation=False, use_only_cache=False, file_cache_mode=6)
Not using cache (Too old. Age is 46 sec, allowed is 0 sec)
Connecting via TCP to 10.66.1.134:6556 (5.0s timeout)
Detected transport protocol: TransportProtocol.TLS
Reading data from agent via TLS socket
Reading data from agent
Detected transport protocol: TransportProtocol.PLAIN
Closing TCP connection to 10.66.1.134:6556
Write data to cache file /omd/sites/outscaledgddi/tmp/check_mk/cache/jaliosdgddi04-app.xsalto.net
Trying to acquire lock on /omd/sites/outscaledgddi/tmp/check_mk/cache/jaliosdgddi04-app.xsalto.net
Got lock on /omd/sites/outscaledgddi/tmp/check_mk/cache/jaliosdgddi04-app.xsalto.net
Releasing lock on /omd/sites/outscaledgddi/tmp/check_mk/cache/jaliosdgddi04-app.xsalto.net
Released lock on /omd/sites/outscaledgddi/tmp/check_mk/cache/jaliosdgddi04-app.xsalto.net
[cpu_tracking] Stop [7fa3e3cfd880 - Snapshot(process=posix.times_result(user=0.010000000000000009, system=0.0, children_user=0.0, children_system=0.0, elapsed=1.4299999997019768))]
  Source: SourceInfo(hostname='jaliosdgddi04-app.xsalto.net', ipaddress='10.66.1.134', ident='piggyback', fetcher_type=<FetcherType.PIGGYBACK: 4>, source_type=<SourceType.HOST: 1>)
[cpu_tracking] Start [7fa3e3e9baa0]
Read from cache: NoCache(jaliosdgddi04-app.xsalto.net, path_template=/dev/null, max_age=MaxAge(checking=0.0, discovery=0.0, inventory=0.0), simulation=False, use_only_cache=False, file_cache_mode=1)
No piggyback files for 'jaliosdgddi04-app.xsalto.net'. Skip processing.
No piggyback files for '10.66.1.134'. Skip processing.
Get piggybacked data
[cpu_tracking] Stop [7fa3e3e9baa0 - Snapshot(process=posix.times_result(user=0.0, system=0.0, children_user=0.0, children_system=0.0, elapsed=0.0))]
[cpu_tracking] Start [7fa3e3b86660]
+ PARSE FETCHER RESULTS
<<<check_mk>>> / Transition NOOPParser -> HostSectionParser
<<<cmk_agent_ctl_status:sep(0)>>> / Transition HostSectionParser -> HostSectionParser
<<<checkmk_agent_plugins_lnx:sep(0)>>> / Transition HostSectionParser -> HostSectionParser
<<<labels:sep(0)>>> / Transition HostSectionParser -> HostSectionParser
<<<df_v2>>> / Transition HostSectionParser -> HostSectionParser
<<<df_v2>>> / Transition HostSectionParser -> HostSectionParser
<<<systemd_units>>> / Transition HostSectionParser -> HostSectionParser
<<<nfsmounts_v2:sep(0)>>> / Transition HostSectionParser -> HostSectionParser
<<<cifsmounts>>> / Transition HostSectionParser -> HostSectionParser
<<<mounts>>> / Transition HostSectionParser -> HostSectionParser
<<<ps_lnx>>> / Transition HostSectionParser -> HostSectionParser
<<<mem>>> / Transition HostSectionParser -> HostSectionParser
<<<cpu>>> / Transition HostSectionParser -> HostSectionParser
<<<uptime>>> / Transition HostSectionParser -> HostSectionParser
<<<lnx_if>>> / Transition HostSectionParser -> HostSectionParser
<<<lnx_if:sep(58)>>> / Transition HostSectionParser -> HostSectionParser
<<<tcp_conn_stats>>> / Transition HostSectionParser -> HostSectionParser
<<<diskstat>>> / Transition HostSectionParser -> HostSectionParser
<<<kernel>>> / Transition HostSectionParser -> HostSectionParser
<<<md>>> / Transition HostSectionParser -> HostSectionParser
<<<vbox_guest>>> / Transition HostSectionParser -> HostSectionParser
<<<postfix_mailq>>> / Transition HostSectionParser -> HostSectionParser
<<<postfix_mailq_status:sep(58)>>> / Transition HostSectionParser -> HostSectionParser
<<<job>>> / Transition HostSectionParser -> HostSectionParser
<<<ntp:cached(1739897270,120)>>> / Transition HostSectionParser -> HostSectionParser
<<<local:sep(0)>>> / Transition HostSectionParser -> HostSectionParser
<<<filestats:sep(0)>>> / Transition HostSectionParser -> HostSectionParser
<<<logwatch>>> / Transition HostSectionParser -> HostSectionParser
<<<docker_node_info:cached(1739897041,300):sep(124)>>> / Transition HostSectionParser -> HostSectionParser
<<<docker_node_info:cached(1739897041,300):sep(0)>>> / Transition HostSectionParser -> HostSectionParser
<<<docker_node_disk_usage:cached(1739897041,300):sep(124)>>> / Transition HostSectionParser -> HostSectionParser
<<<docker_node_disk_usage:cached(1739897041,300):sep(0)>>> / Transition HostSectionParser -> HostSectionParser
<<<docker_node_images:cached(1739897041,300):sep(124)>>> / Transition HostSectionParser -> HostSectionParser
<<<docker_node_images:cached(1739897041,300):sep(0)>>> / Transition HostSectionParser -> HostSectionParser
<<<docker_node_network:cached(1739897041,300):sep(124)>>> / Transition HostSectionParser -> HostSectionParser
<<<docker_node_network:cached(1739897041,300):sep(0)>>> / Transition HostSectionParser -> HostSectionParser
PiggybackMarker(hostname='ab78d691e2fd') / Transition HostSectionParser -> PiggybackParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_node_name'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_node_name'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='cde187f72de2') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_node_name'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_node_name'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='02b4f68d734a') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_node_name'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_node_name'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='ab78d691e2fd') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_status'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_status'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='ab78d691e2fd') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_labels'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_labels'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='ab78d691e2fd') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_network'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_network'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='cde187f72de2') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_status'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_status'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='cde187f72de2') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_labels'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_labels'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='cde187f72de2') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_network'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_network'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='02b4f68d734a') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_status'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_status'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='02b4f68d734a') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_labels'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_labels'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='02b4f68d734a') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_network'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_network'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='cde187f72de2') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_mem'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_mem'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='cde187f72de2') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_cpu'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_cpu'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='cde187f72de2') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_diskstat'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='cde187f72de2') SectionMarker(name=SectionName('docker_container_diskstat'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='02b4f68d734a') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_mem'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_mem'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='02b4f68d734a') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_cpu'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_cpu'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='02b4f68d734a') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_diskstat'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='02b4f68d734a') SectionMarker(name=SectionName('docker_container_diskstat'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='ab78d691e2fd') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_mem'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_mem'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='ab78d691e2fd') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_cpu'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_cpu'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
PiggybackMarker(hostname='ab78d691e2fd') / Transition NOOPParser -> PiggybackParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_diskstat'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='|') / Transition PiggybackParser -> PiggybackSectionParser
PiggybackMarker(hostname='ab78d691e2fd') SectionMarker(name=SectionName('docker_container_diskstat'), cached=(1739897041, 300), encoding='utf-8', nostrip=False, persist=None, separator='\x00') / Transition PiggybackSectionParser -> PiggybackSectionParser
Transition PiggybackSectionParser -> NOOPParser
  HostKey(hostname='jaliosdgddi04-app.xsalto.net', source_type=<SourceType.HOST: 1>)  -> Add sections: ['check_mk', 'checkmk_agent_plugins_lnx', 'cifsmounts', 'cmk_agent_ctl_status', 'cpu', 'df_v2', 'diskstat', 'docker_node_disk_usage', 'docker_node_images', 'docker_node_info', 'docker_node_network', 'filestats', 'job', 'kernel', 'labels', 'lnx_if', 'local', 'logwatch', 'md', 'mem', 'mounts', 'nfsmounts_v2', 'ntp', 'postfix_mailq', 'postfix_mailq_status', 'ps_lnx', 'systemd_units', 'tcp_conn_stats', 'uptime', 'vbox_guest']
  HostKey(hostname='jaliosdgddi04-app.xsalto.net', source_type=<SourceType.HOST: 1>)  -> Add sections: []
Storing piggyback data for: 'ab78d691e2fd'
Trying to acquire lock on /omd/sites/outscaledgddi/tmp/check_mk/piggyback/ab78d691e2fd/jaliosdgddi04-app.xsalto.net
Got lock on /omd/sites/outscaledgddi/tmp/check_mk/piggyback/ab78d691e2fd/jaliosdgddi04-app.xsalto.net
Releasing lock on /omd/sites/outscaledgddi/tmp/check_mk/piggyback/ab78d691e2fd/jaliosdgddi04-app.xsalto.net
Released lock on /omd/sites/outscaledgddi/tmp/check_mk/piggyback/ab78d691e2fd/jaliosdgddi04-app.xsalto.net
Storing piggyback data for: 'cde187f72de2'
Trying to acquire lock on /omd/sites/outscaledgddi/tmp/check_mk/piggyback/cde187f72de2/jaliosdgddi04-app.xsalto.net
Got lock on /omd/sites/outscaledgddi/tmp/check_mk/piggyback/cde187f72de2/jaliosdgddi04-app.xsalto.net
Releasing lock on /omd/sites/outscaledgddi/tmp/check_mk/piggyback/cde187f72de2/jaliosdgddi04-app.xsalto.net
Released lock on /omd/sites/outscaledgddi/tmp/check_mk/piggyback/cde187f72de2/jaliosdgddi04-app.xsalto.net
Storing piggyback data for: '02b4f68d734a'
Trying to acquire lock on /omd/sites/outscaledgddi/tmp/check_mk/piggyback/02b4f68d734a/jaliosdgddi04-app.xsalto.net
Got lock on /omd/sites/outscaledgddi/tmp/check_mk/piggyback/02b4f68d734a/jaliosdgddi04-app.xsalto.net
Releasing lock on /omd/sites/outscaledgddi/tmp/check_mk/piggyback/02b4f68d734a/jaliosdgddi04-app.xsalto.net
Released lock on /omd/sites/outscaledgddi/tmp/check_mk/piggyback/02b4f68d734a/jaliosdgddi04-app.xsalto.net
Received piggyback data for 3 hosts
CPU load             15 min load: 0.57, 15 min load per core: 0.14 (4 cores)
CPU utilization      Total CPU: 1.29%
Check_MK Agent       Version: 2.3.0p19, OS: linux, Agent plug-ins: 10, Local checks: 1
Disk IO SUMMARY      Read: 2.22 kB/s, Write: 74.8 kB/s, Latency: 92 microseconds
Docker containers    Containers: 3, Running: 3, Paused: 0, Stopped: 0
Docker disk usage - buildcache Size: 0 B, Reclaimable: 0 B, Count: 0, Active: 0
Docker disk usage - containers Size: 62.8 MiB, Reclaimable: 0 B, Count: 3, Active: 3
Docker disk usage - images Size: 2.65 GiB, Reclaimable: 16.6 MiB, Count: 4, Active: 3
Docker disk usage - volumes Size: 247 GiB, Reclaimable: 0 B, Count: 4, Active: 4
Docker node info     Daemon running on host jaliosdgddi04-app
Filesystem /         Used: 23.00% - 4.49 GiB of 19.5 GiB (warn/crit at 84.93%/89.95% used), trend per 1 day 0 hours: +330 MiB, trend per 1 day 0 hours: +1.65%, Time left until disk full: 46 days 16 hours
Filesystem /boot/efi Used: 9.35% - 11.6 MiB of 124 MiB (warn/crit at 58.32%/72.22% used), trend per 1 day 0 hours: +0 B, trend per 1 day 0 hours: +0%
Filesystem /home     Used: 32.63% - 9.77 GiB of 29.9 GiB (warn/crit at 86.16%/90.78% used), trend per 1 day 0 hours: +2.27 MiB, trend per 1 day 0 hours: +<0.01%
Filesystem /home/stack/application/workplace/jbatch Used: 56.79% - 125 GiB of 220 GiB (warn/crit at 90.71%/93.81% used), trend per 1 day 0 hours: +0 B, trend per 1 day 0 hours: +0%
Filesystem /tmp      Used: 1.02% - 103 MiB of 9.94 GiB (warn/crit at 82.75%/88.50% used), trend per 1 day 0 hours: -1.66 MiB, trend per 1 day 0 hours: -0.02%
Filesystem /var      Used: 36.85% - 3.66 GiB of 9.94 GiB (warn/crit at 82.75%/88.50% used), trend per 1 day 0 hours: +5.35 MiB, trend per 1 day 0 hours: +0.05%, Time left until disk full: 3 years 107 days
Filesystem /var/log  Used: 11.60% - 586 MiB of 4.94 GiB (warn/crit at 80.16%/86.77% used), trend per 1 day 0 hours: +3.10 MiB, trend per 1 day 0 hours: +0.06%, Time left until disk full: 3 years 348 days
Filesystem /var/log/audit Used: 79.18% - 1.53 GiB of 1.94 GiB (warn/crit at 76.08%/84.05% used)(!), trend per 1 day 0 hours: +88.0 MiB, trend per 1 day 0 hours: +4.43%, Time left until disk full: 4 days 16 hours
Filesystem /var/tmp  Used: 2.33% - 46.2 MiB of 1.94 GiB (warn/crit at 76.08%/84.05% used), trend per 1 day 0 hours: +0 B, trend per 1 day 0 hours: +0%
Kernel Performance   Process Creations: 6.73/s, Context Switches: 984.42/s, Major Page Faults: 0.21/s, Page Swap in: 0.00/s, Page Swap Out: 0.00/s
Memory               Total virtual memory: 42.60% - 10.0 GiB of 23.5 GiB, 8 additional details available
Number of threads    689, Usage: 0.43%
Postfix Queue default Deferred queue length: 0, Active queue length: 0
Postfix status default Status: the Postfix mail system is running, PID: 1219
Systemd Service Summary Total: 149, Disabled: 5, Failed: 1
Systemd Socket Summary Total: 19, Disabled: 1, Failed: 0
TCP Connections      Established: 4
Uptime               Up since 2025-02-14 10:22:13, Uptime: 4 days 6 hours
jaliosgora.com Certificate Tests certificate validity
+ EXECUTING INVENTORY PLUGINS
 allnet_ip_sensoric: skipped (no data)
 allnet_ip_sensoric: skipped (no data)
 aruba_wlc_aps: skipped (no data)
 aruba_wlc_aps: skipped (no data)
 check_mk: ok
 check_mk: skipped (no data)
 checkmk_agent_plugins: ok
 checkmk_agent_plugins: skipped (no data)
 cisco_meraki_org_device_info: skipped (no data)
 cisco_meraki_org_device_info: skipped (no data)
 cisco_meraki_power_supplies: skipped (no data)
 cisco_meraki_power_supplies: skipped (no data)
 dell_hw_info: skipped (no data)
 dell_hw_info: skipped (no data)
 docker_node_info: ok
 docker_node_info: skipped (no data)
 esx_systeminfo: skipped (no data)
 esx_systeminfo: skipped (no data)
 fireeye_sys_status: skipped (no data)
 fireeye_sys_status: skipped (no data)
 fritz: skipped (no data)
 fritz: skipped (no data)
 hp_proliant_da_phydrv: skipped (no data)
 hp_proliant_da_phydrv: skipped (no data)
 hp_proliant_mem: skipped (no data)
 hp_proliant_mem: skipped (no data)
 hp_proliant_systeminfo: skipped (no data)
 hp_proliant_systeminfo: skipped (no data)
 ibm_mq_channels: skipped (no data)
 ibm_mq_channels: skipped (no data)
 ibm_mq_managers: skipped (no data)
 ibm_mq_managers: skipped (no data)
 ibm_mq_queues: skipped (no data)
 ibm_mq_queues: skipped (no data)
 infoblox_osinfo: skipped (no data)
 infoblox_osinfo: skipped (no data)
 infoblox_systeminfo: skipped (no data)
 infoblox_systeminfo: skipped (no data)
 inv_cisco_vlans: skipped (no data)
 inv_cisco_vlans: skipped (no data)
 inv_esx_vsphere_hostsystem: skipped (no data)
 inv_esx_vsphere_hostsystem: skipped (no data)
 inv_if: ok
 inv_if: skipped (no data)
 aix_baselevel: skipped (no data)
 aix_baselevel: skipped (no data)
 aix_lparstat_inventory: skipped (no data)
 aix_lparstat_inventory: skipped (no data)
 aix_packages: skipped (no data)
 aix_packages: skipped (no data)
 aix_service_packs: skipped (no data)
 aix_service_packs: skipped (no data)
 azure_load_balancer: skipped (no data)
 azure_load_balancer: skipped (no data)
 inventory_checkmk: skipped (no data)
 inventory_checkmk: skipped (no data)
 checkpoint_vpn_tunnels: skipped (no data)
 checkpoint_vpn_tunnels: skipped (no data)
 citrix_controller: skipped (no data)
 citrix_controller: skipped (no data)
 citrix_state: skipped (no data)
 citrix_state: skipped (no data)
 couchbase_nodes_ports: skipped (no data)
 couchbase_nodes_ports: skipped (no data)
 dmidecode: skipped (no data)
 dmidecode: skipped (no data)
 docker_container_labels: skipped (no data)
 docker_container_labels: skipped (no data)
 docker_container_network: skipped (no data)
 docker_container_network: skipped (no data)
 inventory_docker_container_node_name: skipped (no data)
 inventory_docker_container_node_name: skipped (no data)
 docker_node_images: ok
 docker_node_images: skipped (no data)
 docker_node_network: ok
 docker_node_network: skipped (no data)
 enviromux_micro_information: skipped (no data)
 enviromux_micro_information: skipped (no data)
 inventory_esx_vsphere_clusters: skipped (no data)
 inventory_esx_vsphere_clusters: skipped (no data)
 inventory_esx_vsphere_virtual_machines: skipped (no data)
 inventory_esx_vsphere_virtual_machines: skipped (no data)
 fortiauthenticator_system: skipped (no data)
 fortiauthenticator_system: skipped (no data)
 fortigate_ha: skipped (no data)
 fortigate_ha: skipped (no data)
 fortimail_system: skipped (no data)
 fortimail_system: skipped (no data)
 fortinet_firewall_network_interfaces: skipped (no data)
 fortinet_firewall_network_interfaces: skipped (no data)
 fortisandbox_software: skipped (no data)
 fortisandbox_software: skipped (no data)
 fortisandbox_system: skipped (no data)
 fortisandbox_system: skipped (no data)
 ipmi_firmware: skipped (no data)
 ipmi_firmware: skipped (no data)
 kube_cluster: skipped (no data)
 kube_cluster: skipped (no data)
 kube_cronjob: skipped (no data)
 kube_cronjob: skipped (no data)
 kube_daemonset: skipped (no data)
 kube_daemonset: skipped (no data)
 kube_deployment: skipped (no data)
 kube_deployment: skipped (no data)
 kube_namespace: skipped (no data)
 kube_namespace: skipped (no data)
 kube_node: skipped (no data)
 kube_node: skipped (no data)
 kube_pod: skipped (no data)
 kube_pod: skipped (no data)
 kube_statefulset: skipped (no data)
 kube_statefulset: skipped (no data)
 kyocera_printer: skipped (no data)
 kyocera_printer: skipped (no data)
 lnx_block_devices: skipped (no data)
 lnx_block_devices: skipped (no data)
 lnx_ip_r: skipped (no data)
 lnx_ip_r: skipped (no data)
 lnx_packages: skipped (no data)
 lnx_packages: skipped (no data)
 lnx_sysctl: skipped (no data)
 lnx_sysctl: skipped (no data)
 lnx_video: skipped (no data)
 lnx_video: skipped (no data)
 mobileiron_inventory: skipped (no data)
 mobileiron_inventory: skipped (no data)
 mssql_clusters: skipped (no data)
 mssql_clusters: skipped (no data)
 oracle_systemparameter: skipped (no data)
 oracle_systemparameter: skipped (no data)
 primekey: skipped (no data)
 primekey: skipped (no data)
 snmp_extended_info: skipped (no data)
 snmp_extended_info: skipped (no data)
 solaris_addresses: skipped (no data)
 solaris_addresses: skipped (no data)
 solaris_pkginfo: skipped (no data)
 solaris_pkginfo: skipped (no data)
 solaris_cpus: skipped (no data)
 solaris_cpus: skipped (no data)
 solaris_routes: skipped (no data)
 solaris_routes: skipped (no data)
 win_bios: skipped (no data)
 win_bios: skipped (no data)
 win_disks: skipped (no data)
 win_disks: skipped (no data)
 win_exefiles: skipped (no data)
 win_exefiles: skipped (no data)
 win_ip_r: skipped (no data)
 win_ip_r: skipped (no data)
 win_networkadapter: skipped (no data)
 win_networkadapter: skipped (no data)
 win_reg_uninstall: skipped (no data)
 win_reg_uninstall: skipped (no data)
 win_video: skipped (no data)
 win_video: skipped (no data)
 win_wmi_software: skipped (no data)
 win_wmi_software: skipped (no data)
 win_wmi_updates: skipped (no data)
 win_wmi_updates: skipped (no data)
 juniper_info: skipped (no data)
 juniper_info: skipped (no data)
 lnx_cpuinfo: skipped (no data)
 lnx_cpuinfo: skipped (no data)
 lnx_distro: skipped (no data)
 lnx_distro: skipped (no data)
 lnx_if: ok
 lnx_if: skipped (no data)
 lnx_uname: skipped (no data)
 lnx_uname: skipped (no data)
 lparstat_aix: skipped (no data)
 lparstat_aix: skipped (no data)
 mem: ok
 mem: skipped (no data)
 mem_used: skipped (no data)
 mem_used: skipped (no data)
 mssql_instance: skipped (no data)
 mssql_instance: skipped (no data)
 netapp_api_disk: skipped (no data)
 netapp_api_disk: skipped (no data)
 netapp_api_info: skipped (no data)
 netapp_api_info: skipped (no data)
 oracle_dataguard_stats: skipped (no data)
 oracle_dataguard_stats: skipped (no data)
 oracle_instance: skipped (no data)
 oracle_instance: skipped (no data)
 oracle_performance: skipped (no data)
 oracle_performance: skipped (no data)
 oracle_recovery_area: skipped (no data)
 oracle_recovery_area: skipped (no data)
 oracle_tablespaces: skipped (no data)
 oracle_tablespaces: skipped (no data)
 perle_chassis: skipped (no data)
 perle_chassis: skipped (no data)
 perle_chassis_slots: skipped (no data)
 perle_chassis_slots: skipped (no data)
 perle_psmu: skipped (no data)
 perle_psmu: skipped (no data)
 prtconf: skipped (no data)
 prtconf: skipped (no data)
 snmp_quantum_storage_info: skipped (no data)
 snmp_quantum_storage_info: skipped (no data)
 snmp_info: skipped (no data)
 snmp_info: skipped (no data)
 solaris_prtdiag: skipped (no data)
 solaris_prtdiag: skipped (no data)
 solaris_uname: skipped (no data)
 solaris_uname: skipped (no data)
 suseconnect: skipped (no data)
 suseconnect: skipped (no data)
 win_computersystem: skipped (no data)
 win_computersystem: skipped (no data)
 win_computersystemproduct: skipped (no data)
 win_computersystemproduct: skipped (no data)
 win_cpuinfo: skipped (no data)
 win_cpuinfo: skipped (no data)
 win_os: skipped (no data)
 win_os: skipped (no data)
 win_system: skipped (no data)
 win_system: skipped (no data)
 winperf_if: skipped (no data)
 winperf_if: skipped (no data)
 robotmk: skipped (no data)
 robotmk: skipped (no data)
 netapp_ontap_disk: skipped (no data)
 netapp_ontap_disk: skipped (no data)
 netapp_ontap_info: skipped (no data)
 netapp_ontap_info: skipped (no data)
Trying to acquire lock on /omd/sites/outscaledgddi/tmp/check_mk/status_data/jaliosdgddi04-app.xsalto.net
Got lock on /omd/sites/outscaledgddi/tmp/check_mk/status_data/jaliosdgddi04-app.xsalto.net
Releasing lock on /omd/sites/outscaledgddi/tmp/check_mk/status_data/jaliosdgddi04-app.xsalto.net
Released lock on /omd/sites/outscaledgddi/tmp/check_mk/status_data/jaliosdgddi04-app.xsalto.net
Trying to acquire lock on /omd/sites/outscaledgddi/tmp/check_mk/status_data/jaliosdgddi04-app.xsalto.net.gz
Got lock on /omd/sites/outscaledgddi/tmp/check_mk/status_data/jaliosdgddi04-app.xsalto.net.gz
Releasing lock on /omd/sites/outscaledgddi/tmp/check_mk/status_data/jaliosdgddi04-app.xsalto.net.gz
Released lock on /omd/sites/outscaledgddi/tmp/check_mk/status_data/jaliosdgddi04-app.xsalto.net.gz
No piggyback files for 'jaliosdgddi04-app.xsalto.net'. Skip processing.
No piggyback files for '10.66.1.134'. Skip processing.
[cpu_tracking] Stop [7fa3e3b86660 - Snapshot(process=posix.times_result(user=0.050000000000000044, system=0.010000000000000009, children_user=0.0, children_system=0.0, elapsed=0.05000000074505806))]
[agent] Success, [piggyback] Success (but no data found for this host), execution time 1.5 sec | execution_time=1.480 user_time=0.060 system_time=0.010 children_user_time=0.000 children_system_time=0.000 cmk_time_agent=1.420
2

On the Service Discovery page in setup, does it show up under disabled services?

3

No, it doesn’t appear anywhere, even when I disable all the discovery rules.

4

Maybe a hint : Could it be because the mount target “synapse_workplace_data” is in the /var/lib/docker/volumes folder ?

5

OK, I had an answer from the support : volumes mounted in /var/lib/docker/volumes are automatically filtered during inventory. If you want to monitor any volume that you manually mount here, you have to create your custom plugin or MRPE script.

1 Like
6

Or change the code inside df.py (which is not such a good idea, because it will be overwritten in the future)
under section: def _filter_df_blocks(…
from if df_block.mountpoint.startswith(“/var/lib/docker/”):
to if df_block.mountpoint.startswith(“/var/lib/docker/”) and not df_block.mountpoint.startswith(“/var/lib/docker/volumes”):

Because even the explicit Mountpoints to never ignore under rule Filesystem discovery are ignored. It would have been nicer if you could have overridden it in the rules section. Or even better, if there was a rule that did this ignoring instead of hard coded in the df.py

Anyway, hope somebody found this useful.

(Hopefully the dev team will swap the codeblocks:
if df_block.mountpoint.startswith(“/var/lib/docker/”)
and
if not _ignore_mountpoint(df_block.mountpoint, never_ignore_mountpoints):
inside df.py that might make it possible to override this behavior the normal rules way.

2 Likes
7

Thanks. I ended writing my own probe but, yes, I don’t fully understand this behaviour. We should be able to disable this.
