APC UPS Network Management Card 3

[_shorty (Uli)]

Hi there,

we are using an APC Smart-UPS SRT 1500 with the new NMC-Card v3.
On this card we use the external temperature sensor that reports correctly its data to the webinterface of the APC but it doesn’t report it back to check_mk when using apc_symmetra_ext_temp
We created a manual rule for that but it doesn’t recognize the sensor even if we try multiple number 1-4 etc.
Rule Setting:

Webinterface Check_mk

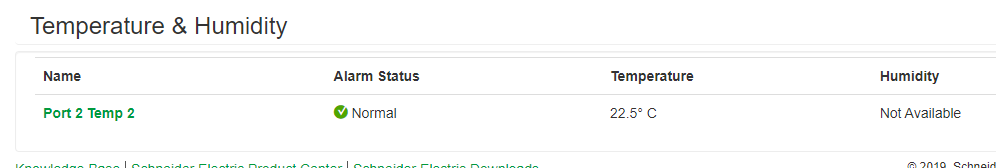

Webinterface APC:

If I run an snmpwalk with it oid 1.3.6.1.4.1.318.1.1.10.2.3.2.1.4 I also did not get any output.

On v2 of the NMC-Card the output of this OID is correct.

How can we use the check_mk build-in check for this external temperature check with this new nmc-card version?

_Shorty

[Matzes]

Which SNMP versions did you choose in the Properties of host → Data sources?

[_shorty (Uli)]

Hi Matzes,

we are using SNMP v1.

[Matzes]

So then you could change the host to SNMPv2 and then the check for the sensor should be found.

[_shorty (Uli)]

nothing changed, same result

[lance (Lance Tost)]

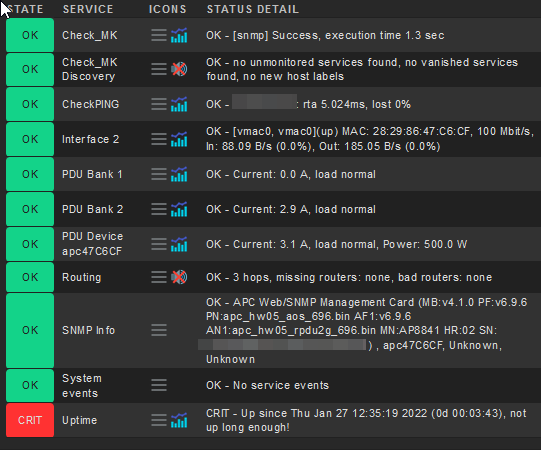

I just bought an external temperature sensor for an CPU PDU hoping CheckMk would see it, but so far, no good. Anyone monitoring temperature off of an APC sensor?

[lance (Lance Tost)]

OK, here’s a clue. Looks like the sensor is at SNMP OID .1.3.6.1.4.1.318.1.1.26.10 according to this: https://www.apc.com/us/en/faqs/FA156179/ .

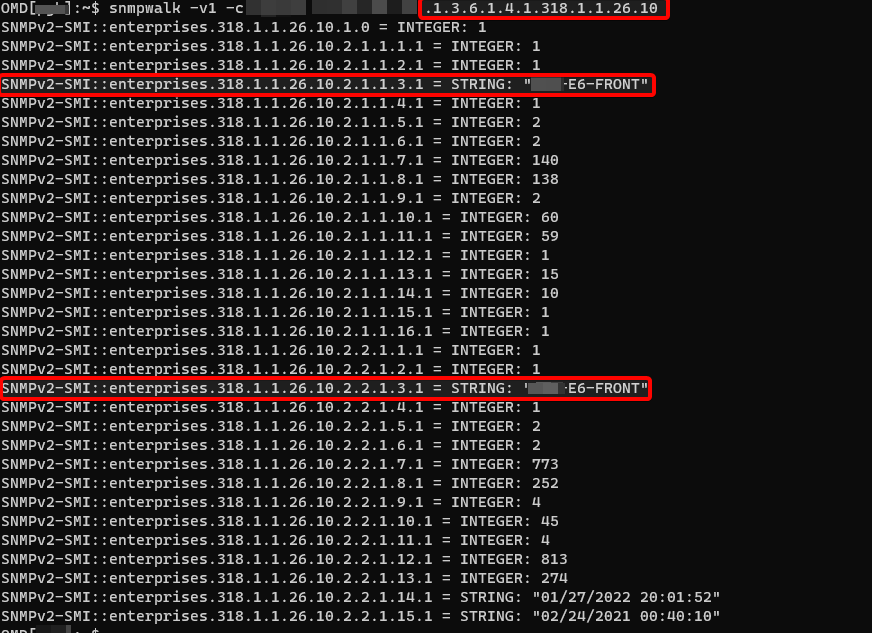

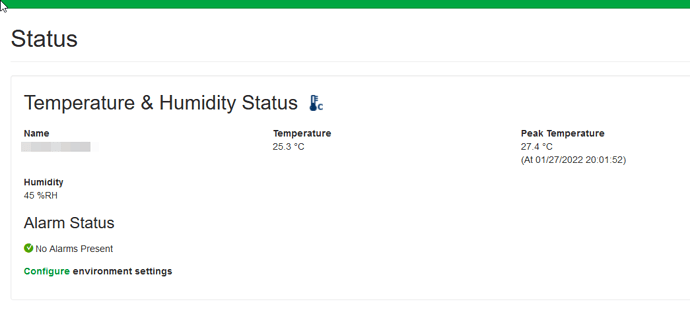

Sure enough, if I snmpwalk that I see my sensor name in there. What do I do with this now though? None of the values look like anything that match the values I see in the APC gui.

I see the apc_symmetra_ext_temp check is compiled python so I can’t experiment with making changes to my own local version.

[lance (Lance Tost)]

Found this post: APC rack-PDU temperature sensor - #2 by wittmannthom
I tried the package but it throws errors. Before I found that, I tried my own plugin (attached).

apc_rackpdu_ext_temp.txt (2.8 KB)

It sort of works. My python is no good so I think I’m limited to integer temperatures… and I’d like to base the service name on the name of the sensor but don’t know how to do that. Can anyone help?

[jan.filo]

Hello,
try this package : Checkmk Exchange
It is for Check_mk 1.6.0p.16, if you have 2.0.0 you only need to import temperature at top of file in /omd/sites//local/share/check_mk/checks/apc_rackpdu like this
from cmk.base.check_legacy_includes.temperature import *
and remove include at bottom.
