Hi @martin.hirschvogel
Could you give me an example what kind of information regarding the my K8s would be useful.
I think I have a similar problem like this person from this topic.
After adding this rule I still encountered missing metrics when I checked in Monitoring > Kubernetes
Hey Ronald,
if you want detailed support/troubleshooting, please contact a Checkmk partner or our support.
This is still a community support forum and I have limited time to help here and only do this is my free time in breaks or after work.
The problem you have has nothing to do with the configuration on Checkmk side. That is fine.
The problem you are encountering is that the container metrics are not collected.
We guarantee that this works for Vanilla Kubernetes, Google Kubernetes Engine (not Autopilot, which is handling GKE differently!), AWS Elastic Kubernetes Engine, Azure Kubernetes Service and OpenShift.
For Rancher, there are some slight changes you need to do, due to a different location of containerd on the nodes in that distro. On VMware Tanzu, it should work off-the-shelf as well.
However, regarding Kubernetes, there is a plethora of versions and distributions and setups, which all behave differently. There is a common misunderstanding that Kubernetes = Kubernetes.
Therefore, as asked before, I need to understand which Kubernetes you are using.
Are you using a managed service, have you set it up yourself from the scratch, are you using an enterprise distro of Kubernetes?
And then, which version are you using? Which container runtime?
How do you find that out?

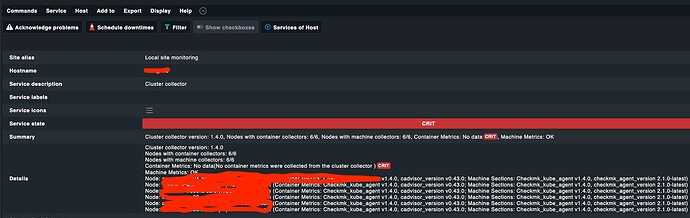

This screenshot is a good indicator:
Please keep in mind that Rancher had a major bug recently, which relabeled all metrics internally, so that any monitoring system couldn’t work with it anymore. Thus, best to have it up-to-date.
Thank you for you response.
I have added “–containerd=/run/docker/containerd/containerd.sock”
This time I got a bit more detailed response.
This is something very different. Where did you add that line?
I have added it here
additionalArgs:
- “–housekeeping_interval=30s”
- “–max_housekeeping_interval=35s”
- “–event_storage_event_limit=default=0”
- “–event_storage_age_limit=default=0”
- “–store_container_labels=false”
- “–whitelisted_container_labels=io.kubernetes.container.name,io.kubernetes.pod.name,io.kubernetes.pod.namespace,io.kubernetes.pod.uid”
- “–global_housekeeping_interval=30s”
- “–event_storage_event_limit=default=0”
- “–event_storage_age_limit=default=0”
- “–disable_metrics=percpu,process,sched,tcp,udp,diskIO,disk,network”
- “–allow_dynamic_housekeeping=true”
- “–storage_duration=1m0s”
- “–containerd=/run/docker/containerd/containerd.sock”
Could this error actually be related to the “Dynamic Host Management” as I turned the connection for a moment and then turned it on and seems to that error disappeared.
Could very well be. What is the status now? The error is gone I assume and everything working now?
Hello Hirschvogel,
we also have the issue, that we are not receiving any metrics.
Cluster collector version: 1.4.0, Nodes with container collectors: 3/3, Nodes with machine collectors: 3/3, Container Metrics: **No dataCRIT**, Machine Metrics: OK
Using the api on the nodeport (http://10.0.1.1:30035/docs#/), we are receiving the /machine_sections, as expected. /container_metrics returns an empty json array:
Our Setup (microk8s):
microk8s version
MicroK8s v1.26.6 revision 5479
kubectl version --short
Client Version: v1.26.6
Kustomize Version: v4.5.7
Server Version: v1.26.6
kubectl get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
__fqdn__ Ready <none> 29h v1.26.6 10.0.3.1 <none> Ubuntu 20.04.6 LTS 5.4.0-155-generic containerd://1.6.15
__fqdn__ Ready <none> 29h v1.26.6 10.0.2.1 <none> Ubuntu 20.04.6 LTS 5.4.0-155-generic containerd://1.6.15
__fqdn__ Ready <none> 29h v1.26.6 10.0.1.1 <none> Ubuntu 20.04.6 LTS 5.4.0-155-generic containerd://1.6.15
cat /etc/*release
DISTRIB_ID=Ubuntu
DISTRIB_RELEASE=20.04
DISTRIB_CODENAME=focal
DISTRIB_DESCRIPTION="Ubuntu 20.04.6 LTS"
NAME="Ubuntu"
VERSION="20.04.6 LTS (Focal Fossa)"
ID=ubuntu
ID_LIKE=debian
PRETTY_NAME="Ubuntu 20.04.6 LTS"
VERSION_ID="20.04"
HOME_URL="https://www.ubuntu.com/"
SUPPORT_URL="https://help.ubuntu.com/"
BUG_REPORT_URL="https://bugs.launchpad.net/ubuntu/"
PRIVACY_POLICY_URL="https://www.ubuntu.com/legal/terms-and-policies/privacy-policy"
VERSION_CODENAME=focal
UBUNTU_CODENAME=focal
PS:
additional problems, when using ubuntu 22.04 (cgroups v2):
checkmk-node-collector-container-metrics cannot read smaps files:
kubectl logs -f checkmk-node-collector-container-metrics-6jwms -n monitoring
W0727 13:02:10.103467 1 handler.go:426] Cannot read smaps files for any PID from CONTAINER
W0727 13:02:10.299686 1 handler.go:426] Cannot read smaps files for any PID from CONTAINER
W0727 13:02:11.058789 1 handler.go:426] Cannot read smaps files for any PID from CONTAINER
Mikrok8s is not supported
We are now a Google Cloud partner and one of the few Autopilot partner workloads: Autopilot partner workloads
Requirements for monitoring GKE Autopilot:
The following line in the values.yaml needs to be changed to true:
Happy monitoring and thanks to @morbloe for using you as a reference to convince Google that this needs to be done.
Using Rancher, and the above fixed my metrics error. It’s slightly different:
kubectl edit -n checkmk-monitoring daemonsets.apps myrelease-checkmk-node-collector-container-metrics
- mountPath: /var/run
name: var-run
readOnly: true # ADDED THIS
containers:
- args:
- --housekeeping_interval=30s
- --max_housekeeping_interval=35s
- --event_storage_event_limit=default=0
- --event_storage_age_limit=default=0
- --store_container_labels=false
- --whitelisted_container_labels=io.kubernetes.container.name,io.kubernetes.pod.name,io.kubernetes.pod.namespace,io.kubernetes.pod.uid
- --global_housekeeping_interval=30s
- --event_storage_event_limit=default=0
- --event_storage_age_limit=default=0
- --disable_metrics=percpu,process,sched,tcp,udp,diskIO,disk,network
- --allow_dynamic_housekeeping=true
- --storage_duration=1m0s
- --containerd=/run/k3s/containerd/containerd.sock # ADDED THIS
