Network Visualization

thl-cmk · November 11, 2024, 12:33pm

Not yet if the switch name looks like this switch12(fdo123456) , but could be implemented.

Cheers
Thomas

FrankB · November 11, 2024, 12:45pm

This where great… I had a look at the source code but I’m not a super professional developer and not the time for this

So if this will be an option… this will be great and help other users too

Thanks
Frank

FrankB · November 11, 2024, 2:43pm

Hi @thl-cmk ,

I’m was able to implement a config switch remove_serial and remove the serial with a regex

Can I send you a push request or a diff or only the changed lines?

Cheeers
Frank

thl-cmk · November 11, 2024, 5:46pm

@FrankB sent you a PM.

shresu · November 14, 2024, 11:22pm

Hi guys,

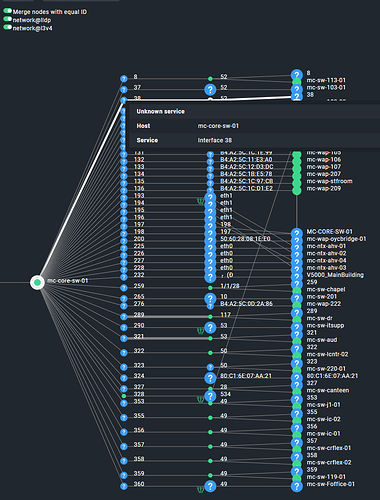

I am seeing more unknown services than the known ones. Am I missing some configuration here?

thl-cmk · November 17, 2024, 9:25am

@shresu there is nothing to configure for the interfaces. Basically, this means that NVDCT cannot assign the L2 data (CDP/LLDP) to the interface services in the CMK. You can see this in the log (~/var/log/nvdct.log). Search for lines like:

2024-11-17 10:13:22,146 :: WARNING :: topologies :: get_service_by_interface() :: 440 :: Device: SW-Rup02: service for interface |16| not found
2024-11-17 10:13:22,148 :: WARNING :: topologies :: get_service_by_interface() :: 440 :: Device: SW-RUP01: service for interface |2| not found

Here (How are port names mapped to interface service names?) you will find some high level information how the L2 data to Service mapping works.

Cheers
Thomas

thl-cmk · November 17, 2024, 5:09pm

Based on @FrankB idea I have added the new config section L2_NEIGHBOUR_REPLACE_REGEX to deal with more complex neighbor names.

Also starting with version 0.9.0-20240923 there where some incompatible changes in NVDCT:

0.9.0-2024-09-23:

replaced options --lowercase/--uppercase with --case LOWER|UPPER
removed backend option FILESYSTEM → use MULTISITE instead
removed support for CMK2.2.x file format (removed option --new-format) → for CMG 2.2x use the 2.2.x branch (for now version 0.8.12)

0.9.2-2024-11-17:

removed DROP_HOST_REGEX → use L2_NEIGHBOUR_REPLACE_REGEX instead
changed section names in TOML file to better distinguish between L2 and L3v4
HOST_MAP → L2_HOST_MAP
DROP_HOSTS → L2_DROP_HOSTS
SEED_DEVICES → L2_SEED_DEVICES
removed option -s, --seed-devices from CLI → use TOML section L2_SEED_DEVICES instead
changed option --keep-domain (keep_domain) to --remove-domain (remove_domain) → don’t mess with neighbor names by default

As always, read the changelog before updating

Sorry for the inconvenience
Thomas

FrankB · November 19, 2024, 8:56am

Hallo Thomas,

das sind mal tolle Neuigkeiten
Ich sag mal vielen lieben Dank. Werde es im laufe der Woche mal ausgibig testen

VG

Frank

Kevd · November 25, 2024, 2:24pm

Hi @thl-cmk !

First off, thanks for the cool plugins! I’ve followed the HowTo on your hopto link, but have a few issues. I’m on CheckMK Enterprise 2.3.0p17.

I can open the Topology view by using the Hamburger Menu next to individual hosts, that’s fine. But from what I’ve seen in screenshots there should be a dashboard to view the default topology (which exists, i checked in the filesystem. Only have one CMK instance, not distributed.). No dashboard for this was created and I couldn’t find a way to create it myself.

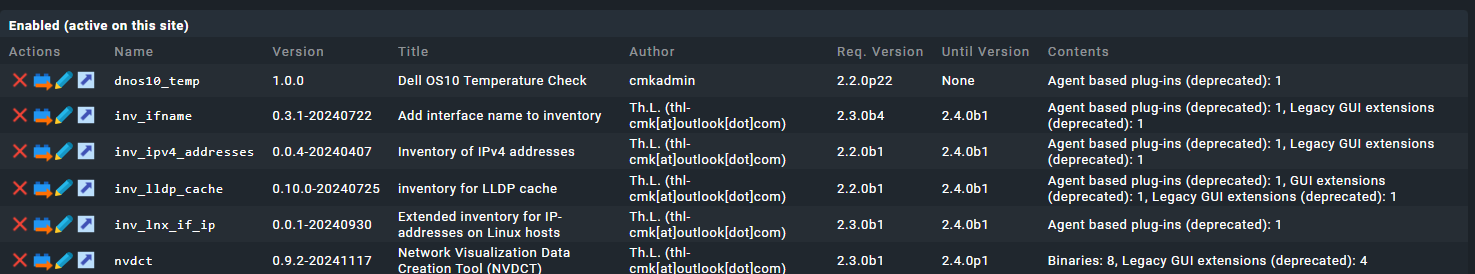

I did notice that all the MKP’s have some contents, especially GUI extensions, with (deprecated) next to them:

The Second problem is that, when setting up the filter for the topology view, the live search freezes when viewing the Topology from certain nodes as soon as I set the Topology Mesh Depth to 6. The Live Search on the top right will stay at “LS running…” and the topology won’t update.
At 5 it works without issue.

And last but not least: Have you thought about or found a way to map all those pesky MAC Adresses to IP’s and those to Host names? THeoretically it could be done via ARP + DNS queries. It would be awesome to know which of our Clients or Server-Hardware are connected to which Ports on the Switches.

Thanks in advance!

thl-cmk · November 26, 2024, 5:23pm

@Kevd thanks for the feedback send you a PM.

thl-cmk · December 11, 2024, 8:47pm

Version 0.9.4-20241210 of nvdct is online now. What has changed?

the default for the layer selection has ben removed
use the CLI option -l CDP or the config option

[SETTINGS]
layers = ["CDP"]

instead.

the site filter works now also with the RESTAPI backend
added option --include-l3-hosts
this allows you to add single homed devices to the L3v4 topology
dual homed Linux and Windows hosts will added by default with the updated plugins.

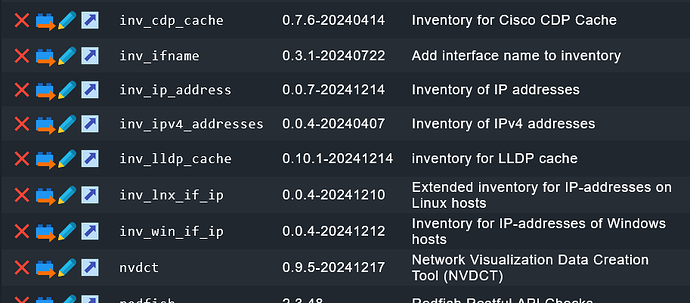

This change nedds an update of the ip address inventory plugin(s)
- Linux inv_lnx_if_ip-0.0.4-20241210.mkp
- SNMP inv_ip_address-0.0.6-20241210.mkp
- Windows inv_win_if_ip-0.0.3-20241210.mkp
The inventory plugins add IPv4 and IPv6 addresses to the inventory now.

Note: after the update you need to do a rediscovery of the host labels (cmk -IL && cmk -R) to use it with the L3v4 topology.
reworked STATIC topology
With this rework you can now easyly create (any) topology you want.
For this the configuration has changed from
[“left_host”, “left_interface”, “right_interface”, “right_host”, “label”]
to
[“left_host”, “left_service”, “right_service”, “right_host”]

Note: you can leave "left_service" and/or "right_service" empty ("")

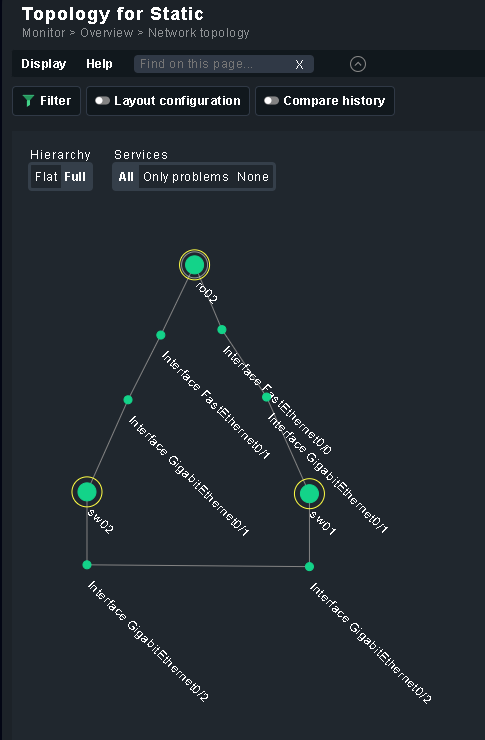

Here a little sample to just connect 3 hosts

STATIC_CONNECTIONS = [
    ["sw01", "", "", "sw02"],
    ["ro02", "", "", "sw01"],
    ["ro02", "", "", "sw02"],
]

static_host_only

and with services

STATIC_CONNECTIONS = [
    ["sw01", "Interface GigabitEthernet0/2", "Interface GigabitEthernet0/2", "sw02"],
    ["ro02", "Interface FastEthernet0/0", "Interface GigabitEthernet0/1", "sw01"],
    ["ro02", "Interface FastEthernet0/1", "Interface GigabitEthernet0/1", "sw02"],
]

As always, before updating read the CHANGELOG

Cheers
Thomas

BH2005 · December 17, 2024, 9:35am

Hi together
@thl-cmk
small problem after update:

OMD[infra]:~$  ~/local/bin/nvdct/nvdct.py -u ~/local/bin/nvdct/conf/my-nvdct.toml -d
Traceback (most recent call last):
  File "/omd/sites/infra/local/bin/nvdct/nvdct.py", line 258, in <module>
    from lib.settings import Settings
  File "/opt/omd/sites/infra/local/bin/nvdct/lib/settings.py", line 5, in <module>
    from cmk_addons.plugins.bgp_topology.lib.utils import OMD_ROOT
ModuleNotFoundError: No module named 'cmk_addons.plugins.bgp_topology'

greetz Bernd

thl-cmk · December 17, 2024, 10:14am

@BH2005 ThX for the feedback, is fixed now (copy&paste grr).

BH2005 · December 17, 2024, 11:11am

works …

but no LLDP,STATIC or CDP Data


OMD[infra]:~$  ~/local/bin/nvdct/nvdct.py -u ~/local/bin/nvdct/conf/my-nvdct.toml -d

Network Visualisation Data Creation Tool (NVDCT)
by thl-cmk[at]outlook[dot]com, version 0.9.5-20241217
see https://thl-cmk.hopto.org/gitlab/checkmk/vendor-independent/nvdct

Start time....: 2024-12-17T12:05:41.12
Layer LLDP....: Devices/Objects/Connections added 0/0/0
Layer L3v4....: Devices/Objects/Connections added 33/391/424
Layer CDP.....: Devices/Objects/Connections added 0/0/0
Layer STATIC..: Devices/Objects/Connections added 0/0/0
Time taken....: 1.325134946/s
End time......: 2024-12-17T12:05:42.12

thl-cmk · December 17, 2024, 11:17am

@BH2005 you only get STATIC if you have a static topology configured inside the config file (in your case my-nvdct.toml)
For LLDP/CDP, have you set the seed devices in the config file?

If you are updateing form a pre 0.9.2-2024-11-17 version of NVDCT you need to adjust your config file see → Network Visualization - #111 by thl-cmk, or check the CHANGELOG
The configuration for the STATIC topology has also slightly changed see → Network Visualization - #115 by thl-cmk

thl-cmk · December 30, 2024, 10:42am

As I am more and more closing in to NVDCT version 1, I had still to make some adjustments.

0.9.6-20241222: streamlining the L3v4 stuff towards L3v6

INCOMPATIBLE: changes in TOML:
L3V4_IGNORE_HOSTS → L3_IGNORE_HOSTS
L3V4_IGNORE_IP → L3_IGNORE_IP
L3V4_SUMMARIZE → L3_SUMMARIZE
L3V4_REPLACE → L3_REPLACE
L3V4_IRNORE_WILDCARD → L3V4_IGNORE_WILDCARD # Typo, last L3v4 only piece
l3v4_replace → l3_replace
l3v4_summarize → l3_summarize

I think, together with the IPv6 inventory, you can guess where this leads

0.9.7-20241230: more cleanup

INCOMPATIBLE: changes in TOML:
L2_DROP_HOSTS → L2_DROP_NEIGHBOURS: This is not about dropping CMK hosts but L2 neighbours so i had to rename it.
REMOVED:
CUSTOM_LAYERS section and CUSTOM layer: dropped support for custom plugins. As I am not aware of any third-party plugins, I will no longer maintain unused code.
CHANGED BEHAVIOR:
L2_SEED_DEVICES: if this section is empty, NVDCT will now use all hosts as seed devices (filtered by host label: CDP → nvdct/has_cdp_neighbour:yes, LLDP → nvdct/has_lldp_neighbours:yes)

NEW OPTIONS:
--adjust-toml : Since I also had to change some TOML files myself and to make the changes easier, I added a little helper. This will do most of the TOML changes for you.

OMD[build]:~$ ~/local/bin/nvdct/nvdct.py -u
~/local/bin/nvdct/conf/testing.toml --adjust-toml

Network Visualisation Data Creation Tool (NVDCT)
by thl-cmk[at]outlook[dot]com, version 0.9.7-20241227
see https://thl-cmk.hopto.org/gitlab/checkmk/vendor-independent/nvdct

Start time....: 2024-12-27T17:29:54.12
Checking file.: testing.toml
Found value...: "L2_DROP_HOSTS" 1 times, replaced by "L2_DROP_NEIGHBOURS"
Found value...: "L3V4_IGNORE_HOSTS" 1 times, replaced by "L3_IGNORE_HOSTS"
Found value...: "L3V4_IGNORE_IP" 1 times, replaced by "L3_IGNORE_IP"
Found value...: "L3V4_REPLACE" 1 times, replaced by "L3_REPLACE"
Found value...: "L3V4_SUMMARIZE" 1 times, replaced by "L3_SUMMARIZE"
Found value...: "SEED_DEVICES" 1 times, replaced by "L2_SEED_DEVICES"
Found value...: "icon_missinc" 1 times, replaced by "icon_alert_unreach"
Found value...: "icon_missing" 1 times, replaced by "icon_alert_unreach"
Found value...: "l3v4_replace" 1 times, replaced by "l3_replace"
Found value...: "l3v4_summarize" 1 times, replaced by "l3_summarize"
Found value...: "keep_domain = false" 1 times, replaced by "remove_domain = true"
Obsolete......: "lowercase", use "case = LOWER" instead
Obsolete......: "uppercase", use "case = UPPER" instead
Renamed TOML..: testing.toml.backup
Written fixed.: testing.toml
Time taken....: 0.009732051/s
End time......: 2024-12-27T17:29:54.12

OMD[build]:~$

--display-l2-neighbours: With this option the Hosts in the L2 topologies will show the raw L2 neighbour name instead of the CMK hostname.

display_host → display_neighbour

--include-l3-loopback: Will include 127.0.0.0/8 and ::1/128 ip-addresses in L3 topology.
--skip-l3-cidr-0: Will skip /0 ip-adresses in L3 topology (if you dont want the “0.0.0.0/0” network).
--skip-l3-cidr-32-128: Will skip /32 (IPv4) and /128 (IPv6) ip-addresses in L3 topoogy.
--skip-l3-public: Will skip public ip-addresses in L3 topology.

Cheers
Thomas

thl-cmk · February 5, 2025, 6:48pm

0.9.8-20250205:

INCOMPATIBLE:
- Reworked the CLI interface.
  - Options for layer 2 topologies now start with ‘l2_’ and with ‘l3_’ for layer 3 topologies.
  - Most important change: The TOML or ‘user data file’ is now called what it is → configuration file, so the releated options also had to be changed. -u/--user-data-file is now -c/--config
CHANGED BEHAVIOUR:
- The mapping of L2 neighbour names to Checkmk host names has been reworked.

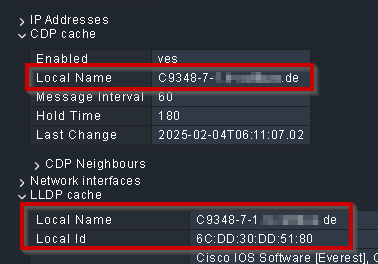

  - It now uses the ‘Local Name’ and ‘Local ID’ that were added to the CDP/LLDP inventory some time ago. With this, NVDCT should now be able to automatically match (most) neighbours to a Checkmk host. To enable this, use the --pre-fetch option.
  - --l2-remove-domain, and --l2-case have now an ‘AUTO’ option. This basically tries out all possible options until it finds a match.
NEW OPTIONS:
- There are now options to filter the hosts that can become part of the topology by folder, host label and host tag.
- --l2-skip-external: This removes all neighbours without a matching Checkmk host from the topology
- --l2-display-ports, --l3-display-devices: if this is enabled, the raw port/device name from the inventory will be used as the display name in the topology instead of the Checkmk interface service name.

As always, check the CHANGELOG for full details before updating.

Cheers
Thomas

fabian.binder · February 12, 2025, 12:53pm

Hi Thomas, we’d love to try the newest version but instead of the repository, I’m redirected to gitlab’s login page. Is Sign in · GitLab still the correct URL or is there another issue?

thl-cmk · February 12, 2025, 1:22pm

Hi Fabian,

unfortunately there is an error in the latest MKP. As I am on leave I have taken the repo offline. It will be fixed next week and then become available again.

Thomas

thl-cmk · February 15, 2025, 5:27pm

@fabian.binder the repo is now online again.
